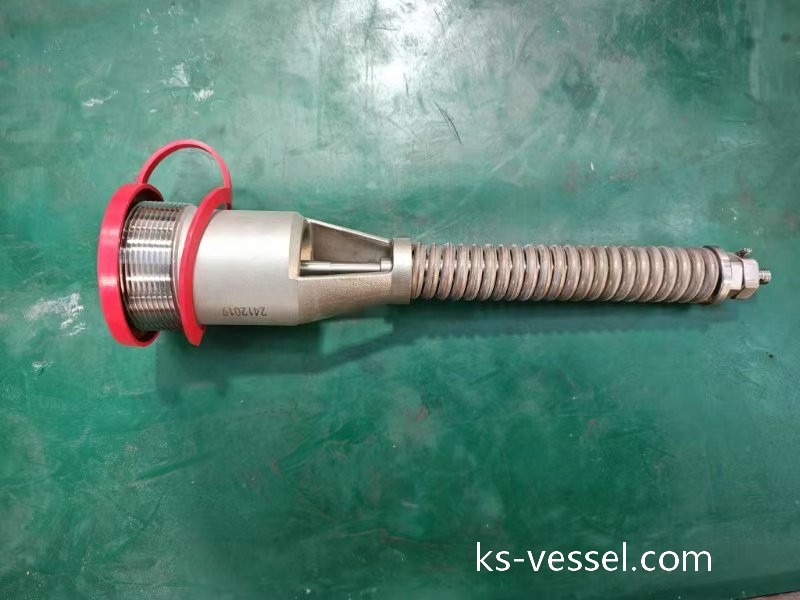

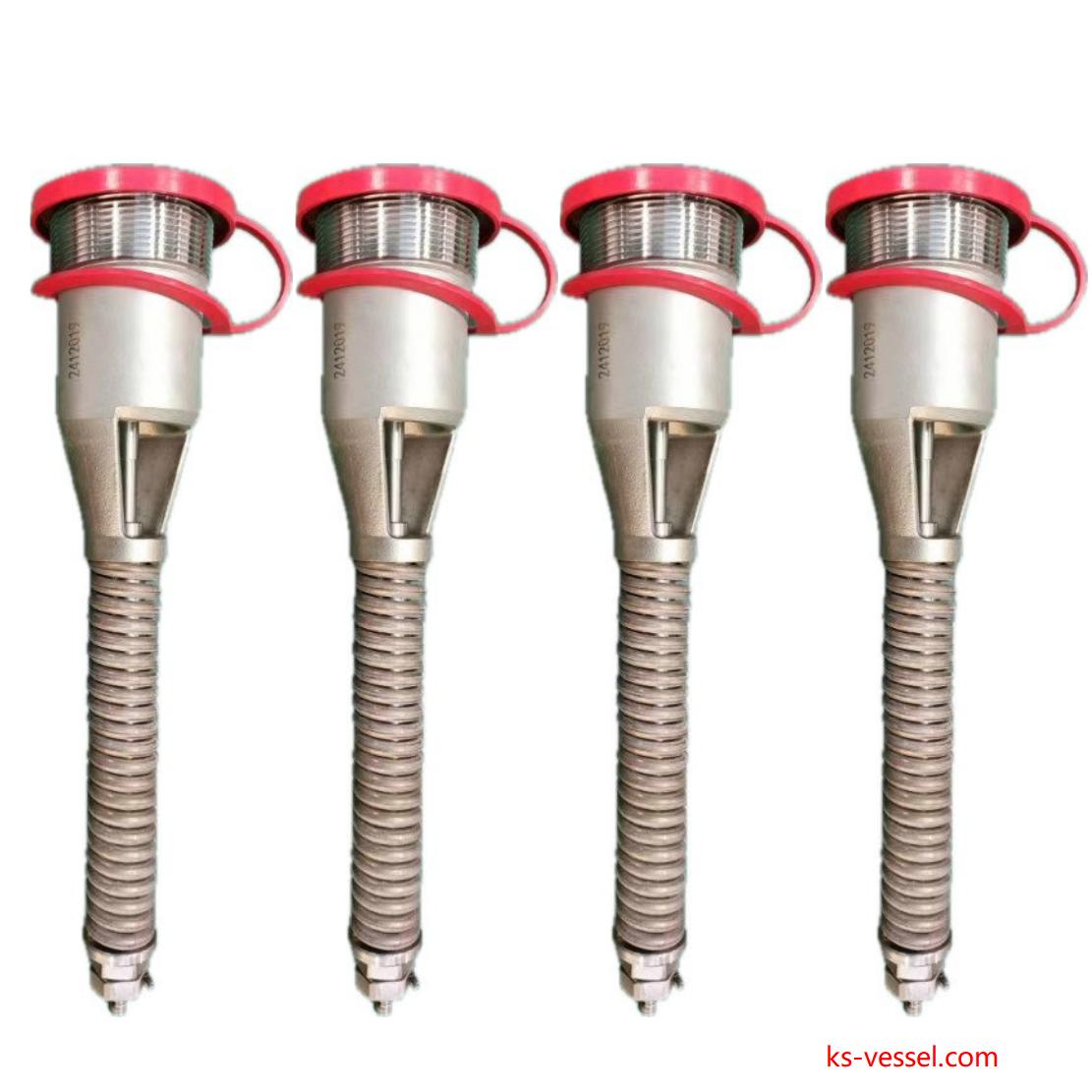

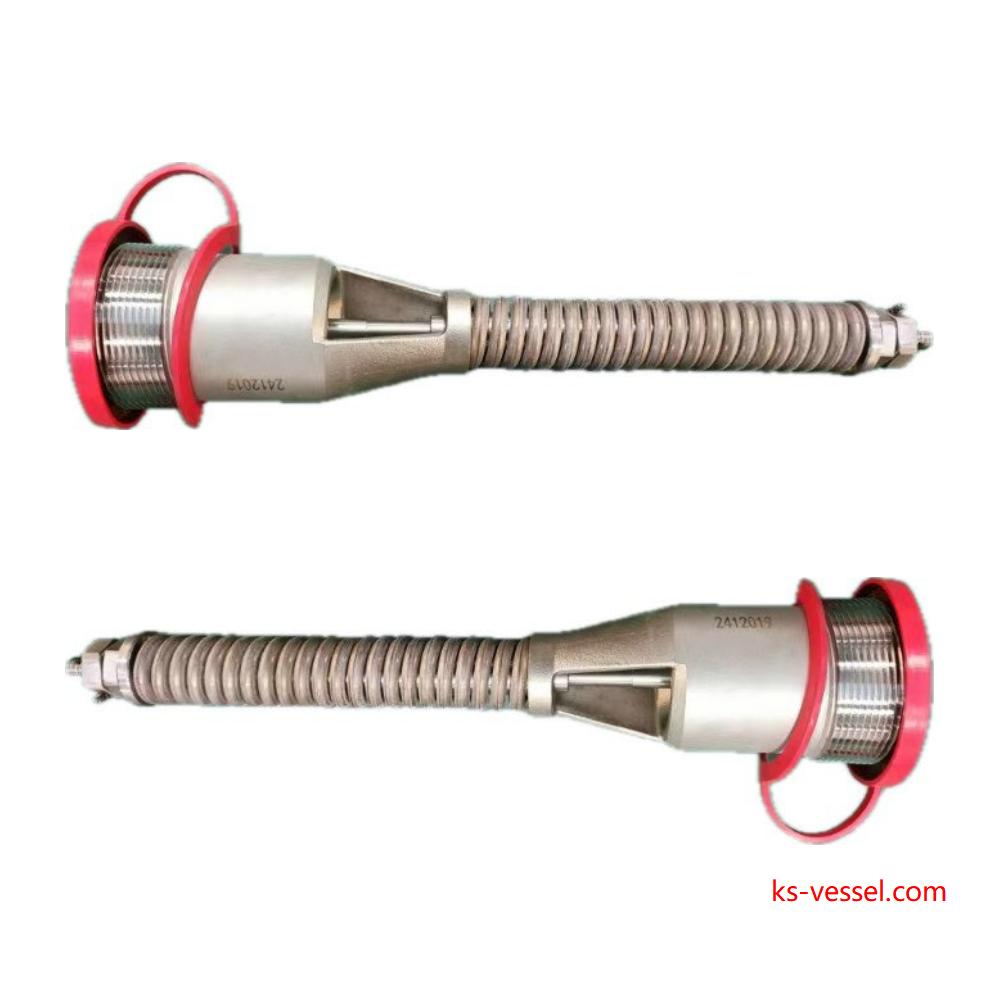

PRV Pressure Safety Valve A412F-25P-(3B) For C-430 C-1980 Catalyst UN Portable Tank T21 Pressure Relief Valves
Nominal Pressure | 2.5 MPa |
Nominal Diameter | 40 mm |
Relieving Pressure | ≤ 1.69 MPa |
Reseating Pressure | ≥ 1.39 MPa |
Air Displacement | 1.63 m³/s |
Lift | ≥ 4 mm |
Flow Diameter | 25 mm |
Suitable Medium | UNT21 |
Suitable Temperature | -40℃ ~ 65℃ |
Test Pass Mark | Stainless steel buckle lock |
2-inch internal spring-loaded safety relief valve. Set pressure: 15.4 barg (223 psig)
A412F-25 P-(3B ) type built-in spring safety valve is specifically designed as a safety accessory for railway tank cars , road tank trucks , and tank containers . When the pressure inside the tank
exceeds the allowable value , the valve disc opens and allows for full discharge to prevent further pressure increase . When the pressure drops to the specified value , the valve closes to protect the safety of the equipment;
b) Applicable temperature: -40℃~65℃;
c) Applicable medium: UNT21 , UN 3394 alkyl aluminum , UN 3399 etc .
The A412F-25 P-(3B) type safety valve is a built-in structure that complies with the HG 3157 "Spring- loaded Safety Valves for Liquefied Gas Tankers" and GB/T 12243 "Spring-loaded Direct Load Safety Valves" standards , implementing the requirements of the State Administration for Market Regulations TSG R0005-2011 "Safety Technical Supervision Regulations for Mobile Pressure Vessels" and being subject to the inspection of the TSG ZF001-2006 "Safety Technical Supervision Regulations for Safety Valves ." The valve disc of the safety valve adopts a metal-metallic seal structure , where the sealing material is selected to be compatible with various special media , ensuring safer and more reliable sealing. After installation , the height of the safety valve exposed above the tank body is only 7~9 mm , effectively preventing and reducing accidental collisions and impacts during the operation of liquefied gas tankers and tanks . This safety valve has a compact structure , good sealing performance , and features such as rapid opening and stable discharge .
Nominal Presure | Nominal DN | Flew Diameter | Intensity Test Verify Pressure | Air Displacement | Sealing Pressure | Set- Pressure | Blowdown Presssure | Pressure To Return To Seat |
MPa | mm | mm | MPa | m 3/s | MPa | MPa | MPa | MPa |
2.5 | 40 | 25 | 3.75 | 1.35 | ≥1.39 | 1.54±0.046 | ≤1.69 | ≥1.39 |
A412F-25P-(5A)
Nominal Pressure (MPa) | Connection Size with Container (mm) | Flow Diameter (mm) | Strength Test Pressure (MPa) | Air Displacement (m³/s) | Sealing Pressure (MPa) | Set Pressure (MPa) | Relief Pressure (MPa) | Re-seating Pressure (MPa) |
2.5 | NPT3 | 45 | 3.75 | 4.7 | ≥1.20 | 1.33±0.03 | ≤1.46 | ≥1.20 |
PRV Pressure Safety Valve A412F-25P-(3B) For C-430 C-1980 Catalyst UN Portable Tank T21 Pressure Relief Valves
Nominal Pressure | 2.5 MPa |
Nominal Diameter | 40 mm |
Relieving Pressure | ≤ 1.69 MPa |
Reseating Pressure | ≥ 1.39 MPa |
Air Displacement | 1.63 m³/s |
Lift | ≥ 4 mm |
Flow Diameter | 25 mm |
Suitable Medium | UNT21 |
Suitable Temperature | -40℃ ~ 65℃ |
Test Pass Mark | Stainless steel buckle lock |
2-inch internal spring-loaded safety relief valve. Set pressure: 15.4 barg (223 psig)
A412F-25 P-(3B ) type built-in spring safety valve is specifically designed as a safety accessory for railway tank cars , road tank trucks , and tank containers . When the pressure inside the tank
exceeds the allowable value , the valve disc opens and allows for full discharge to prevent further pressure increase . When the pressure drops to the specified value , the valve closes to protect the safety of the equipment;
b) Applicable temperature: -40℃~65℃;
c) Applicable medium: UNT21 , UN 3394 alkyl aluminum , UN 3399 etc .
The A412F-25 P-(3B) type safety valve is a built-in structure that complies with the HG 3157 "Spring- loaded Safety Valves for Liquefied Gas Tankers" and GB/T 12243 "Spring-loaded Direct Load Safety Valves" standards , implementing the requirements of the State Administration for Market Regulations TSG R0005-2011 "Safety Technical Supervision Regulations for Mobile Pressure Vessels" and being subject to the inspection of the TSG ZF001-2006 "Safety Technical Supervision Regulations for Safety Valves ." The valve disc of the safety valve adopts a metal-metallic seal structure , where the sealing material is selected to be compatible with various special media , ensuring safer and more reliable sealing. After installation , the height of the safety valve exposed above the tank body is only 7~9 mm , effectively preventing and reducing accidental collisions and impacts during the operation of liquefied gas tankers and tanks . This safety valve has a compact structure , good sealing performance , and features such as rapid opening and stable discharge .
Nominal Presure | Nominal DN | Flew Diameter | Intensity Test Verify Pressure | Air Displacement | Sealing Pressure | Set- Pressure | Blowdown Presssure | Pressure To Return To Seat |
MPa | mm | mm | MPa | m 3/s | MPa | MPa | MPa | MPa |
2.5 | 40 | 25 | 3.75 | 1.35 | ≥1.39 | 1.54±0.046 | ≤1.69 | ≥1.39 |
A412F-25P-(5A)
Nominal Pressure (MPa) | Connection Size with Container (mm) | Flow Diameter (mm) | Strength Test Pressure (MPa) | Air Displacement (m³/s) | Sealing Pressure (MPa) | Set Pressure (MPa) | Relief Pressure (MPa) | Re-seating Pressure (MPa) |
2.5 | NPT3 | 45 | 3.75 | 4.7 | ≥1.20 | 1.33±0.03 | ≤1.46 | ≥1.20 |
