| Quantity: | |
|---|---|

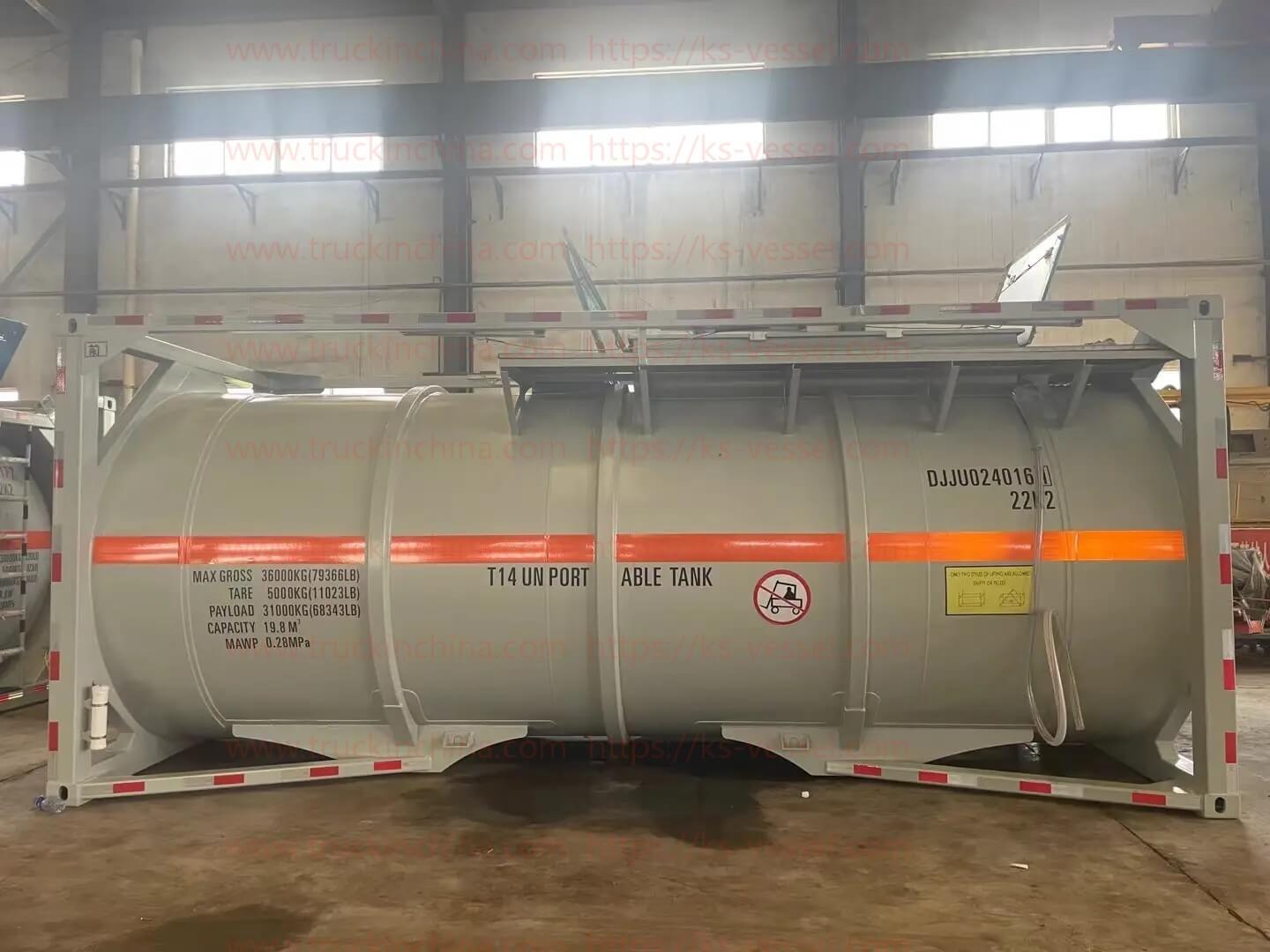

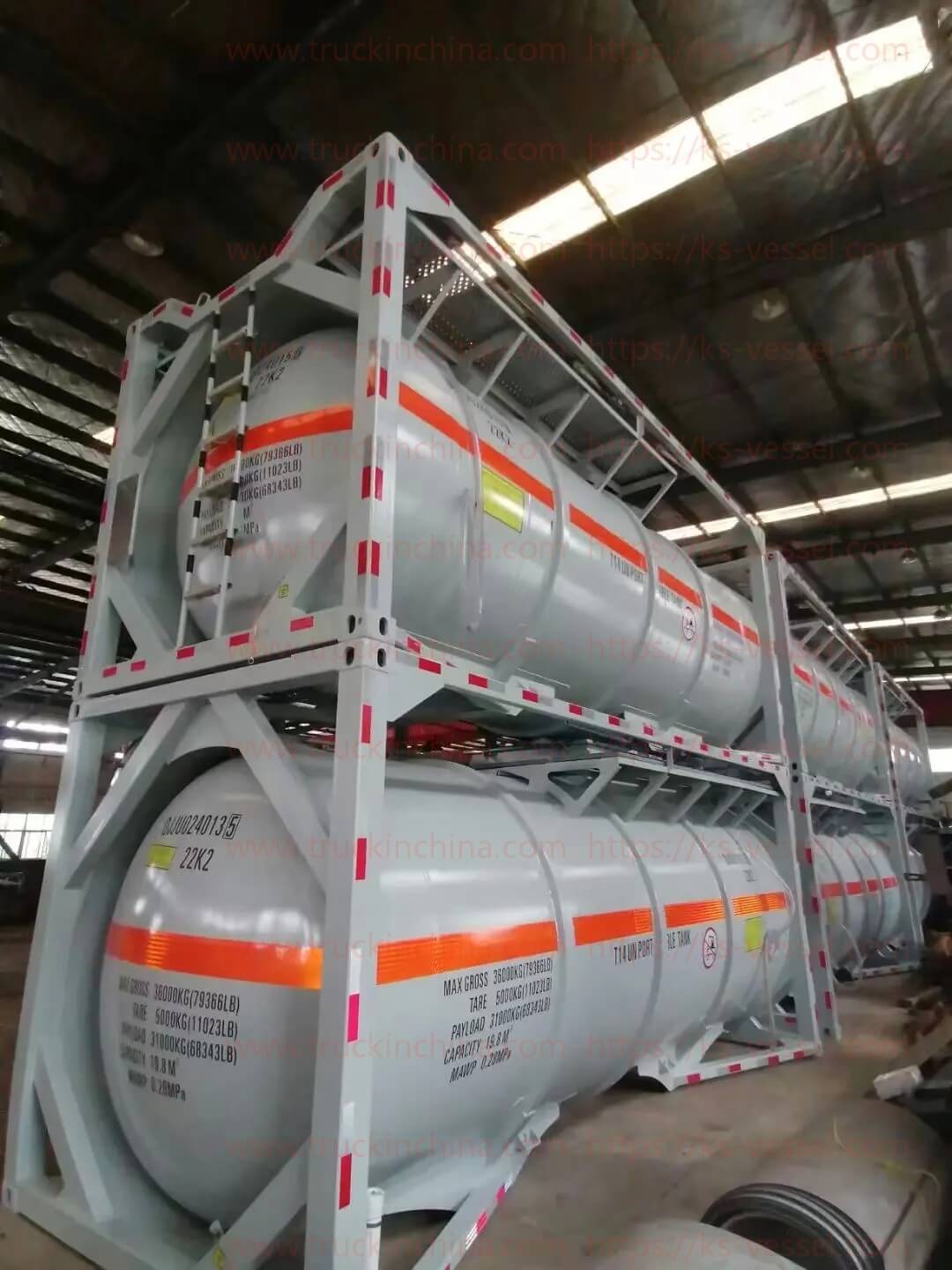

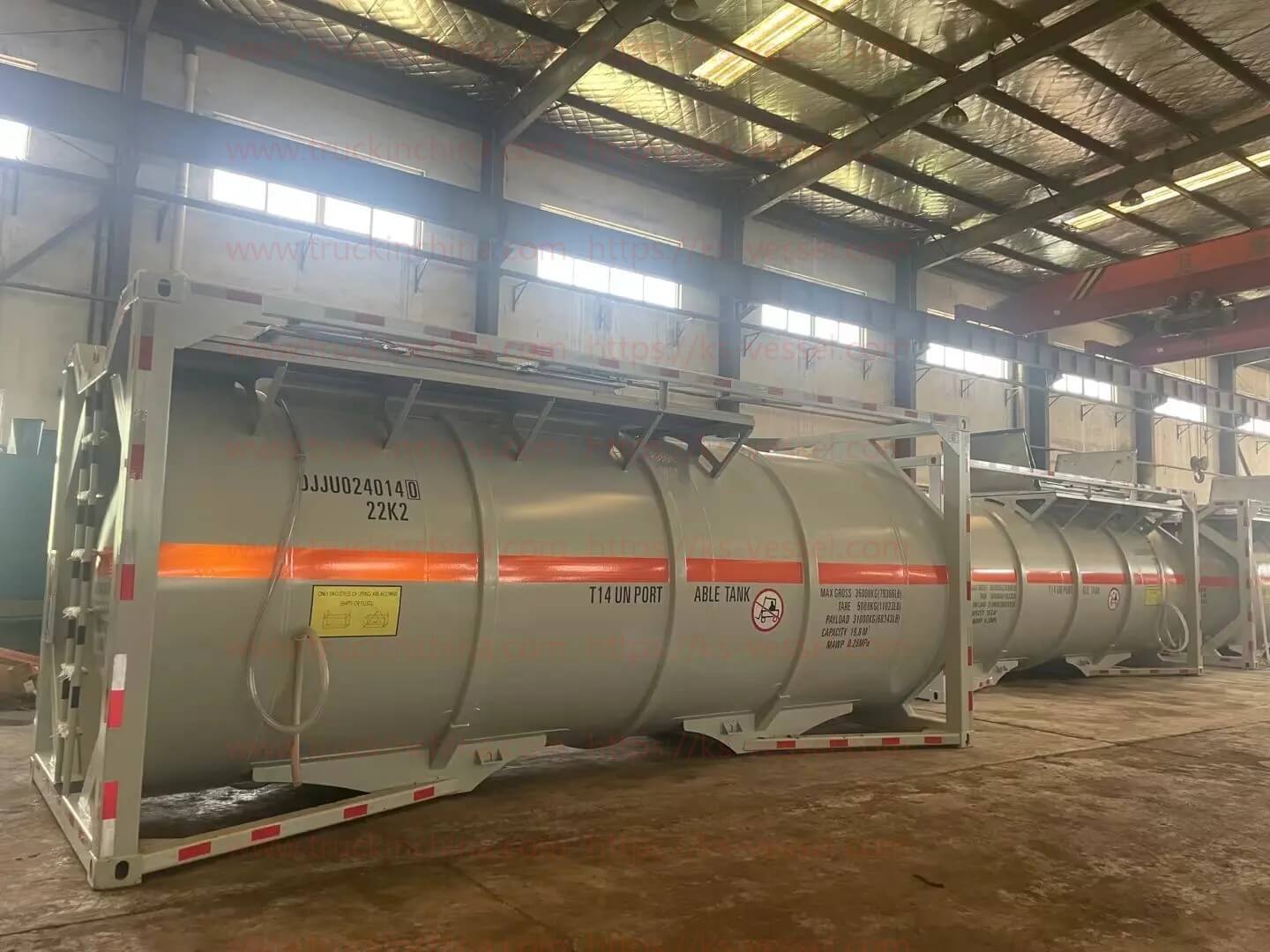

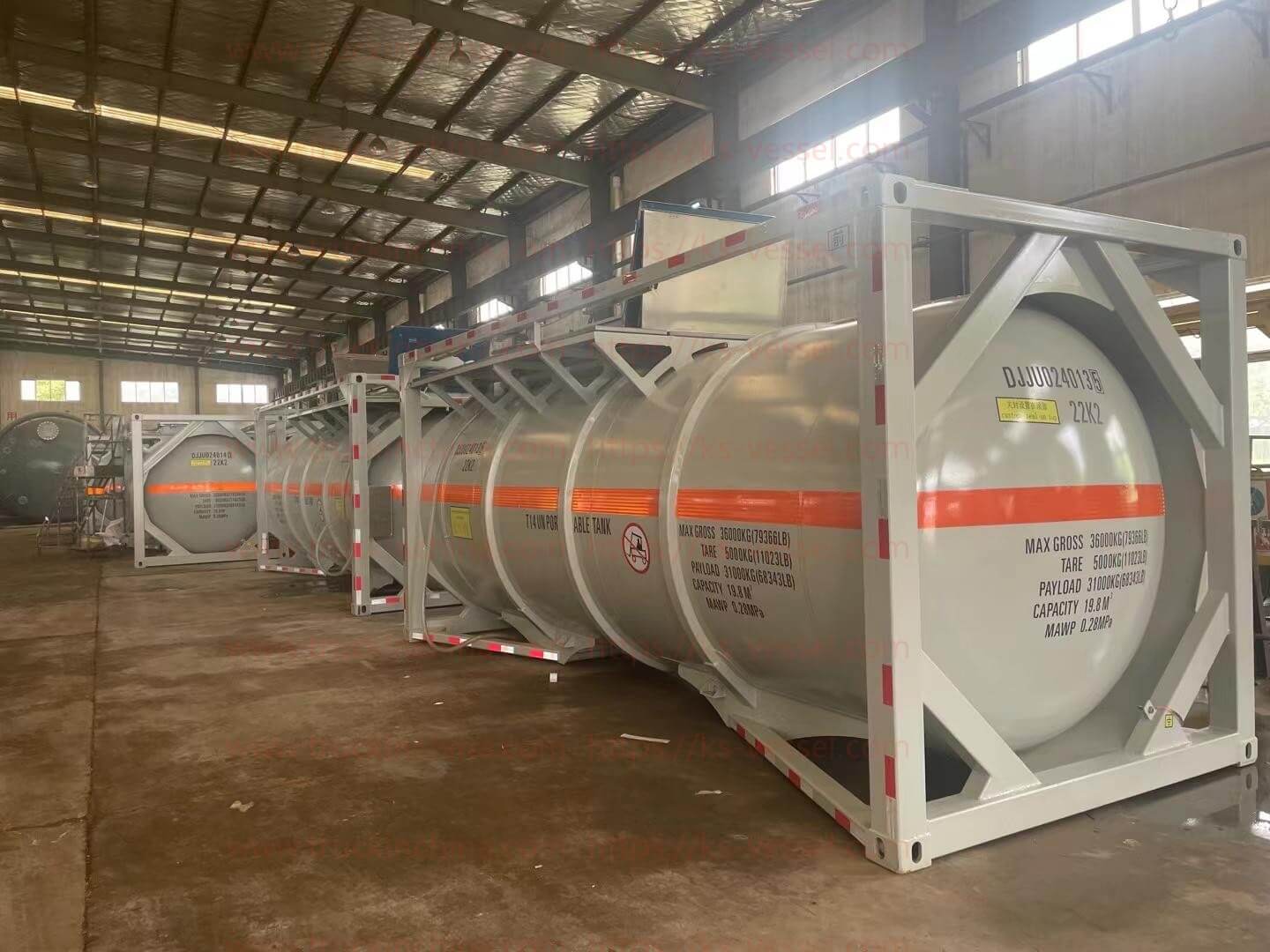

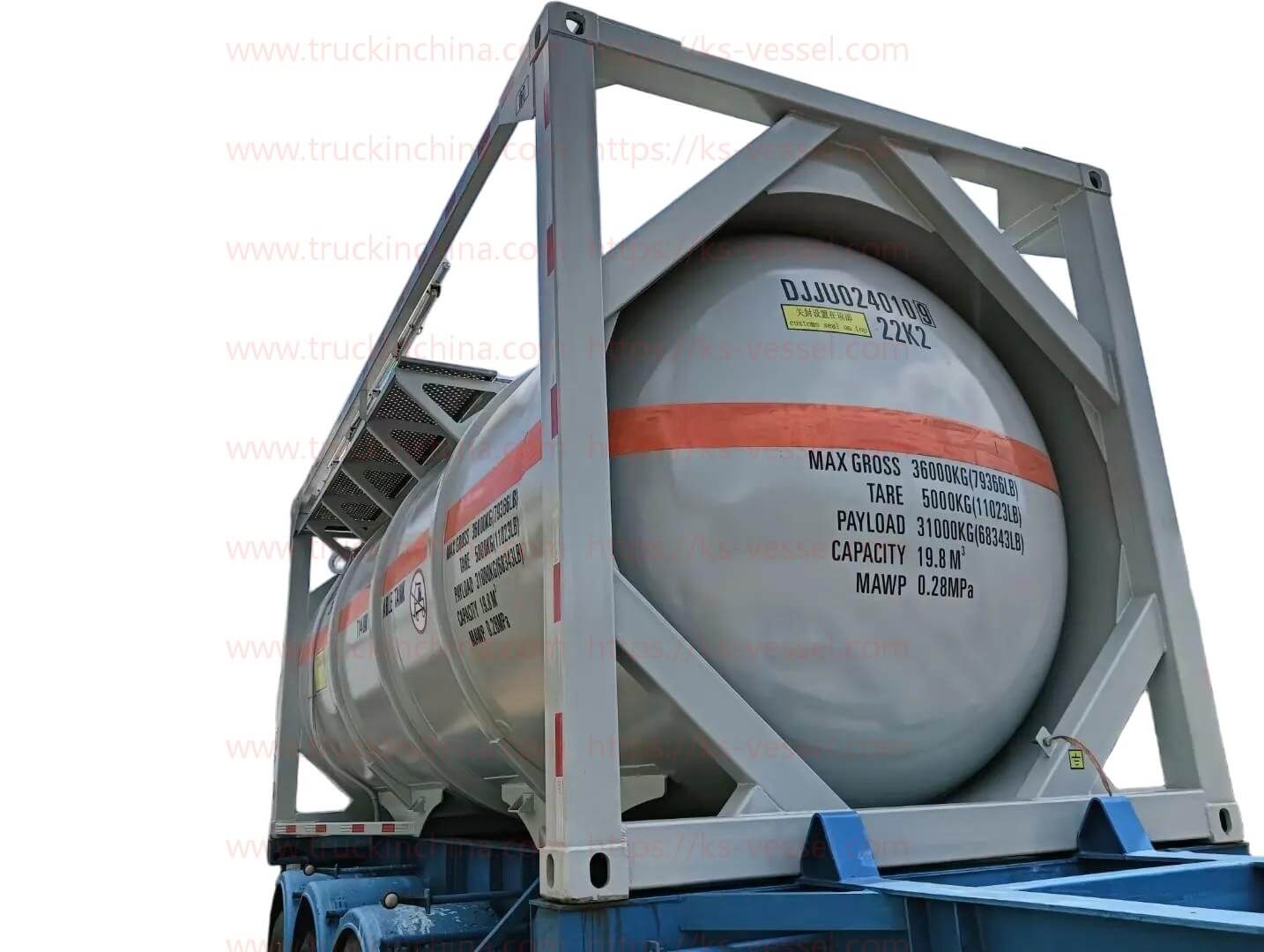

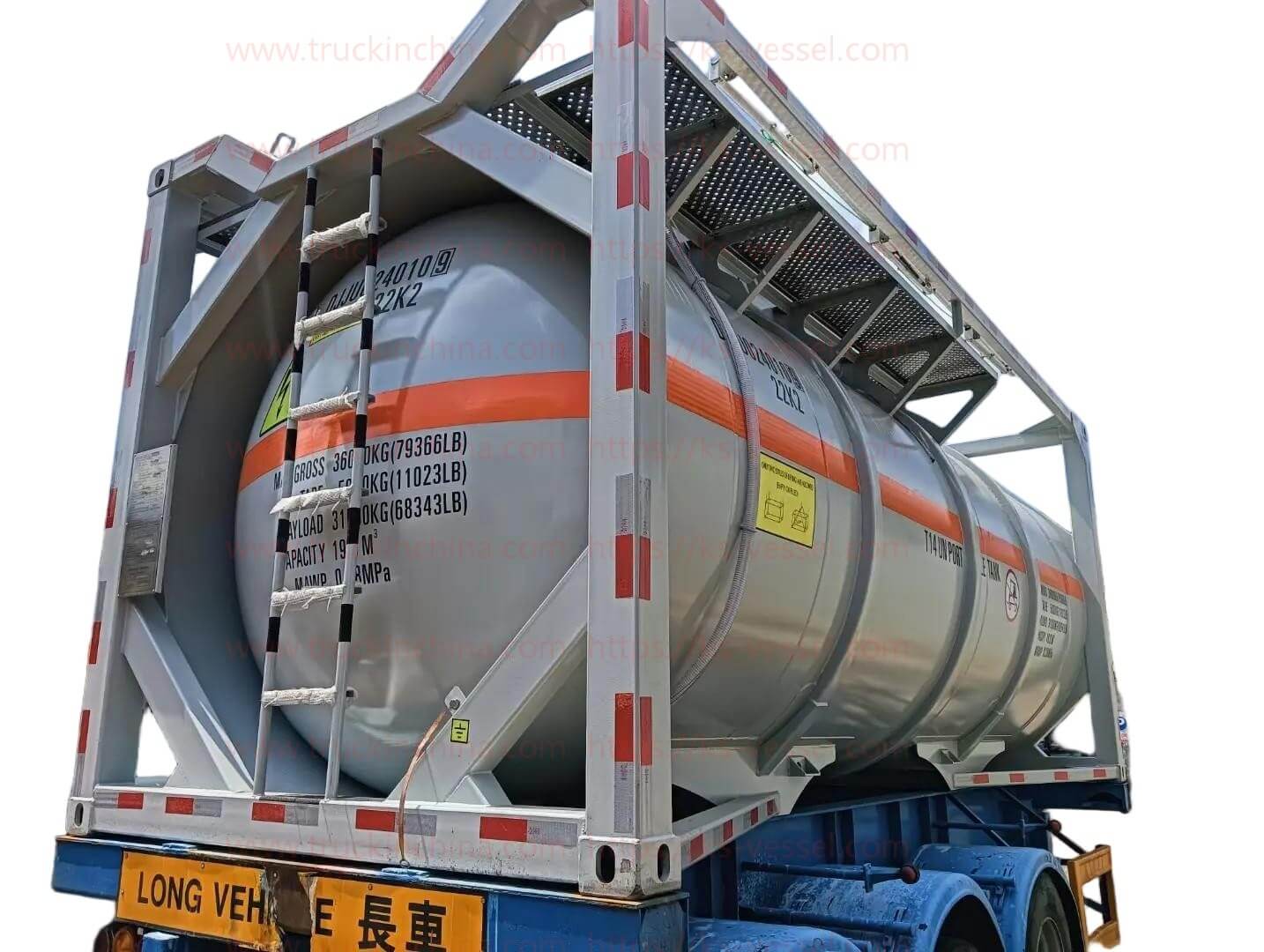

20FT ISO Tank Container 20ft CCS Certified 22K2 T14 UN Portable Tank 19.8KL for Chemical Liquid HF Hydrochloric Acid, Sulfuric Acid Container Transportation
OEM for Hydrochloric Acid Sulfuric Acid Hydrofluoric Acid Portable Tank 17.5KL ,18KL,21KL
| Tank container main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
T14 Portable Tankscontainer main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
| ISO TANK CONTAINER MAIN TECHNICAL PARAMETERS | ||||||
| 20FT TANK CONTAINER | Hydrochloric Acid UN1789 33% HCl Hydrofluoric Acid UN1790 48% HF Sulfuric Acid UN1830 94% H2SO4 UN2582 Ferric Chloride Solution Chemcial Liquid (density) : (1155 Kg/m3), Hydrochloric Acid (1150 Kg/m3), Sulfate, Nitrate (1152 Kg/m3), Phosphate (Phosphoric Acid 1151 Kg/m3), Hydrofluoric Acid (1132 Kg/m3), Battery Fluid (1135 Kg/m3), Chloride Acid(1135 Kg/m3), Ferric Chloride Solution (1130 Kg/m3), Sodium Hypochlorite (1130 Kg/m3), Sulfurous Acid (1030 Kg/m3), Glacial acetic acid (1.05 T / m3), sodium hypochlorite (1.10 T / m3); Propionic acid(density: 990 kg / m3) | |||||
| OVERALL DIMENSION(MM) | 6058×2438×2438/2591 | |||||
| WORKING TEMPERATURE(ºC) | -20C0~+55C0 | |||||
| Insulating performance | Design according to user's requirement | |||||
| Water testing pressure(MPa) | 0.6 | |||||
| Insulating materials and thickness(mm) | optional | |||||
| Capacity(m3) | 18000L,19000L,20000L,21000L | |||||
| Host materials | Middle Steel SA516 /16MnDR + LLDPE7042 (PE) | |||||
| Thickness of shell materials(mm) | 6 | |||||
| Thickness of Seal Head materials(mm) | 6 | |||||
| Corner post materials | 16Mn | |||||
| Standard fittings Manhole cover, valve | Two | |||||
| Type | ISO tank containers T14 | |||||
| Capacity | Tare weight | Max gross weight | ||||
| 18KL | 4750kg | 36000 | ||||
| Dimensions | Metric | Imperial |
| Length | 6,058mm | 19'10" |
| Width | 2,438mm | 8'0" |
| Height | 2,438mm or 2,591mm | 8'0" or 8'6" |
| Pressures | Bar | MPa |
| Working pressure | 4.0 | 0.4 |
| Test pressure | 6.0 | 0.6 |
| Shelf material | Middle steel |
| Design Code | IMDG ,GB150 ,UN division where applicable |
| Temperatures | °C | |
| Maximum cargo temperature | -20C0~+55C0 |
| Approvals | Approvals CCS / BV |
| Standard fittings | |
| Manlid | 500mm (20") diameter and |
| Gaskets and seals | SWR (sweet white rubber) and PTFE (Tef lon) |
