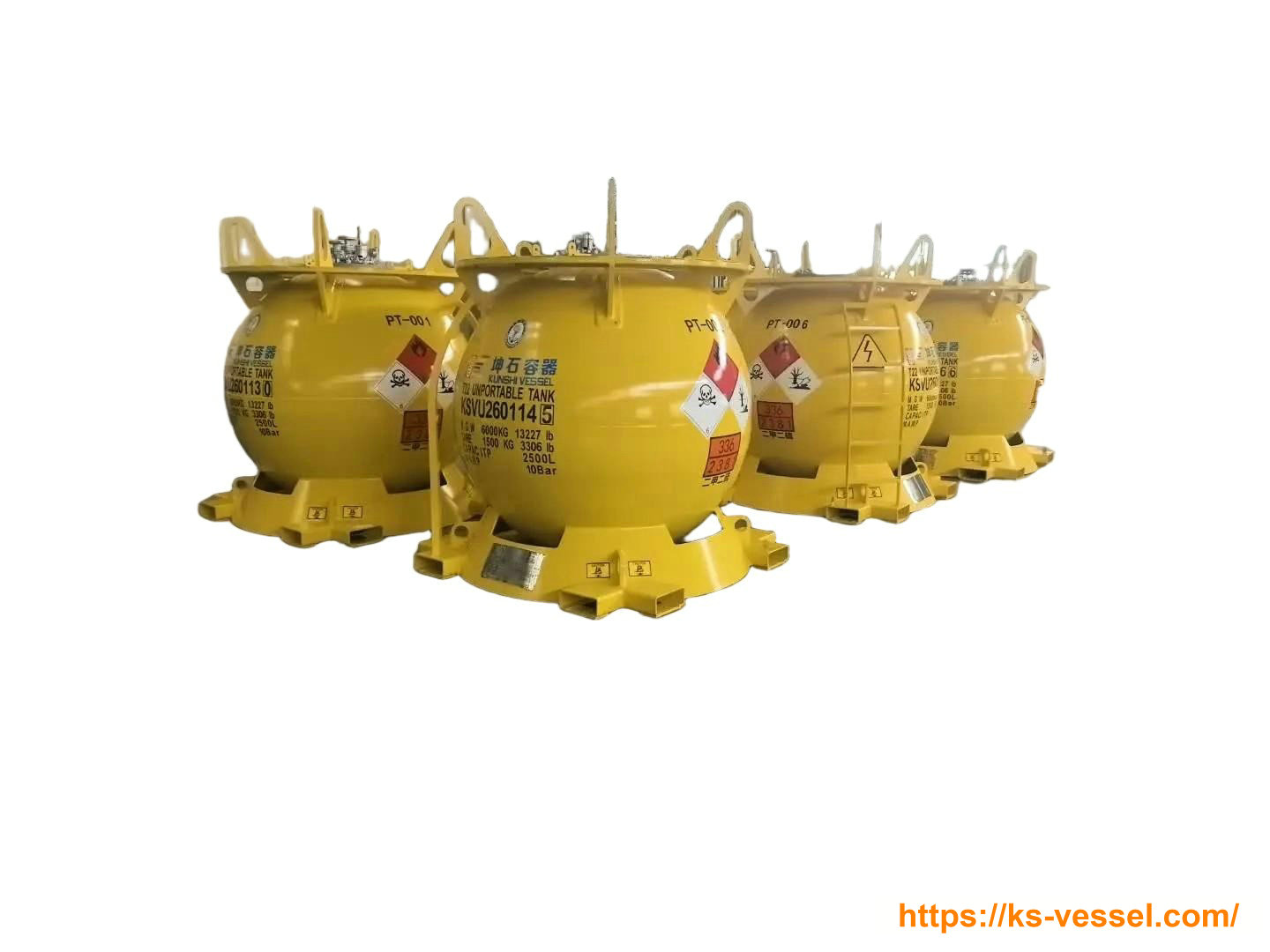

Liquefied Hydrocarbon Spherical Tank
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||

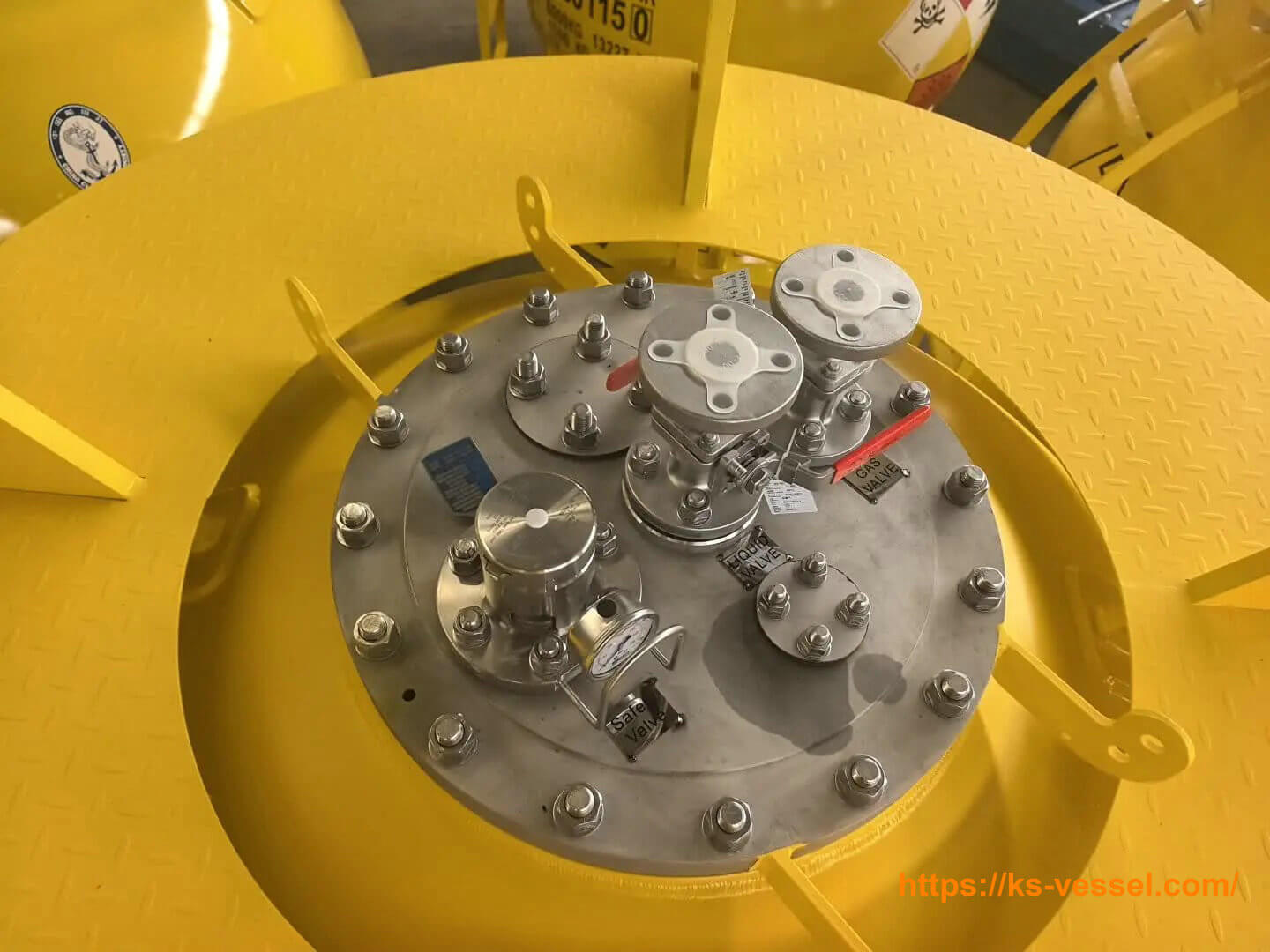

The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers & Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products
ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported
ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases
Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers
SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers
Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers
PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Hazardous chemicals
Acid
Petroleum

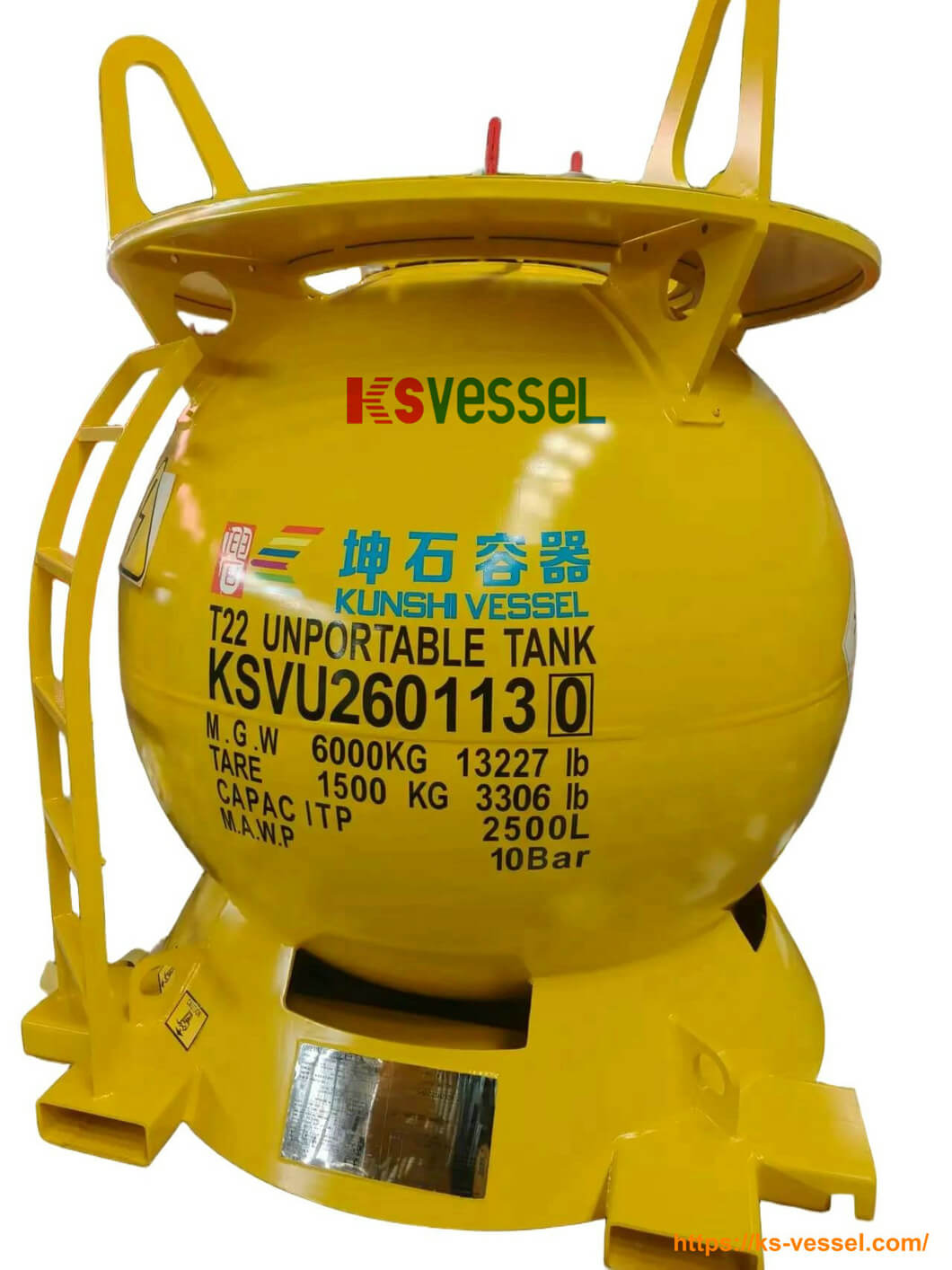

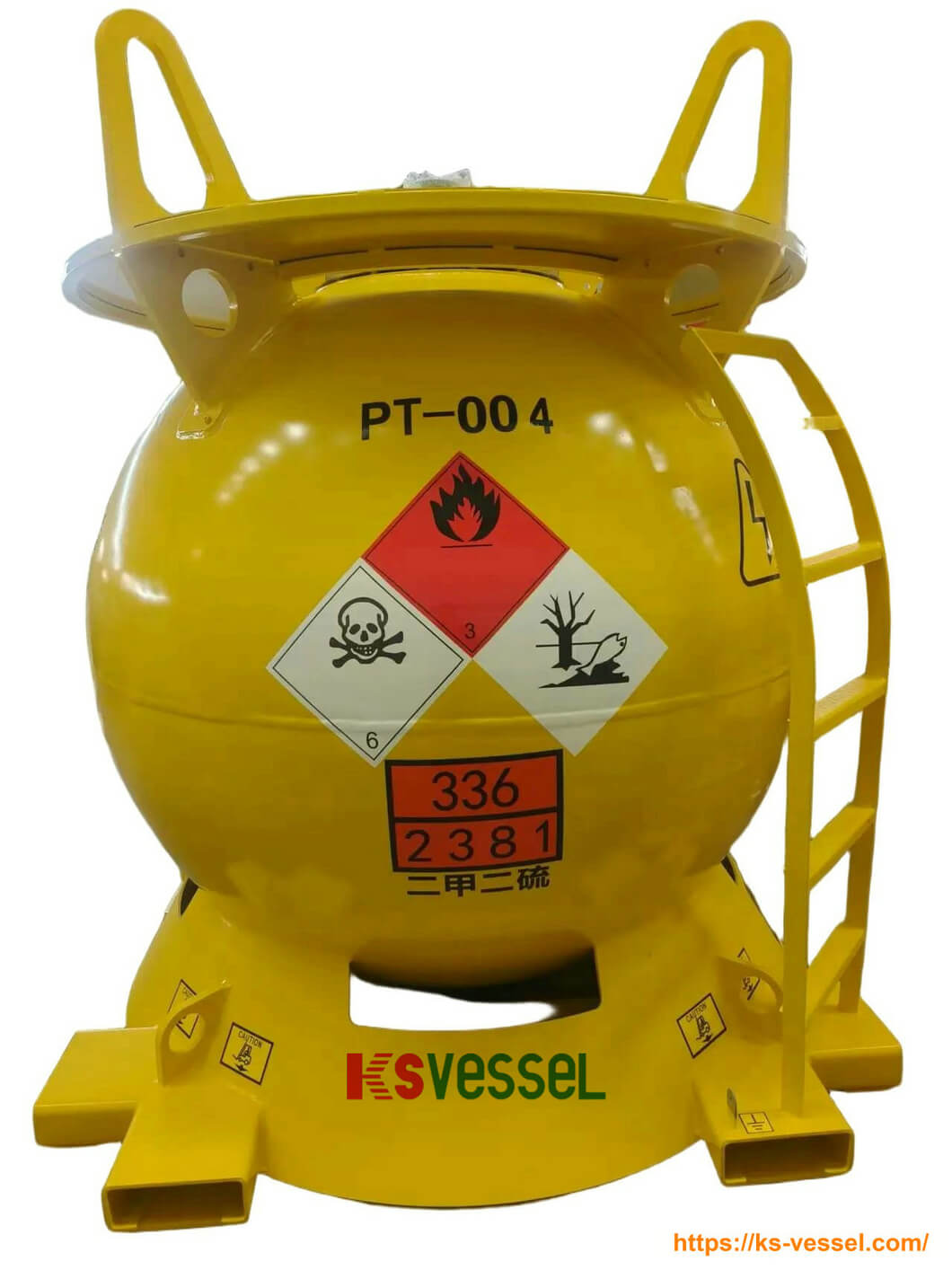

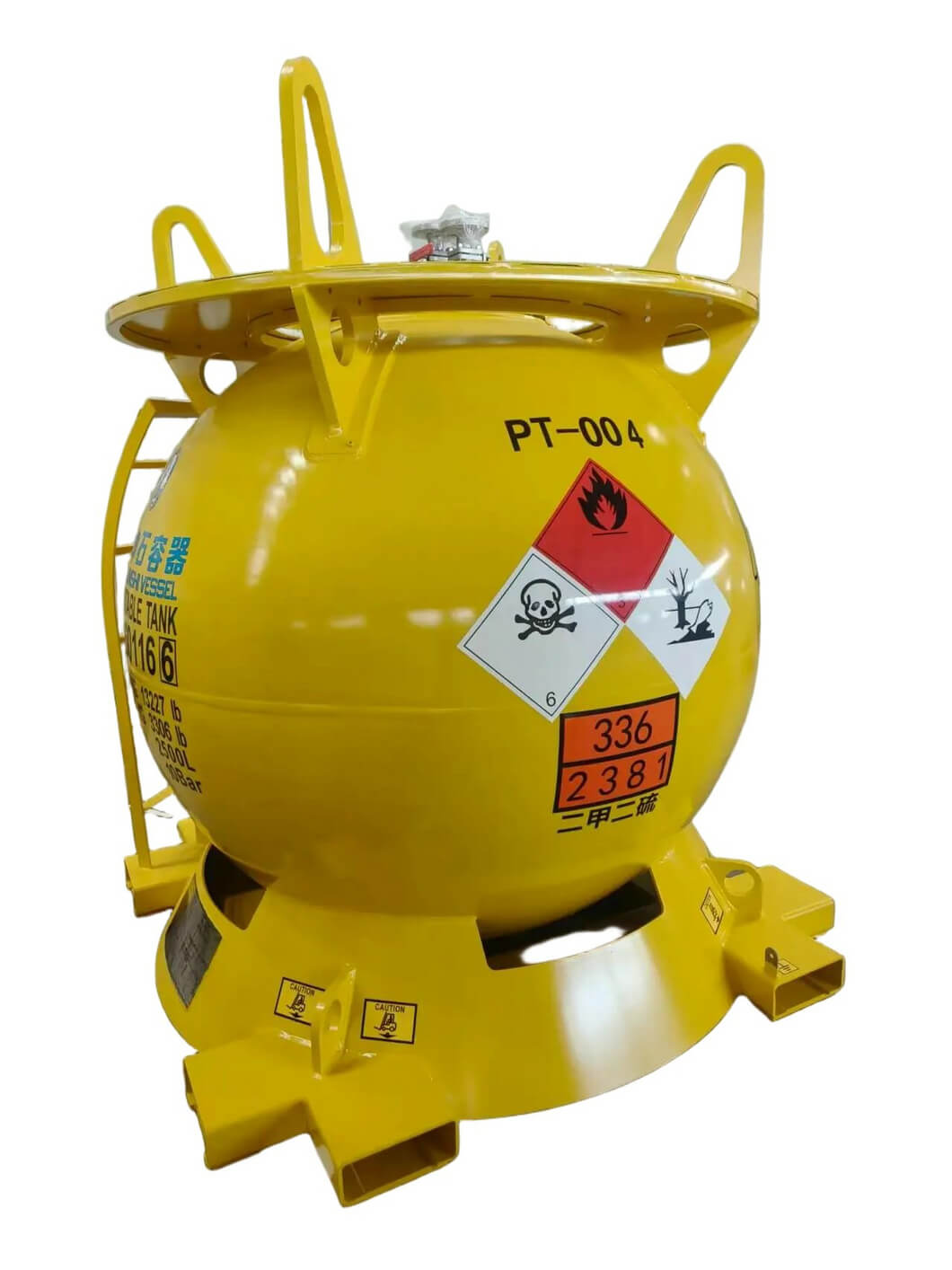

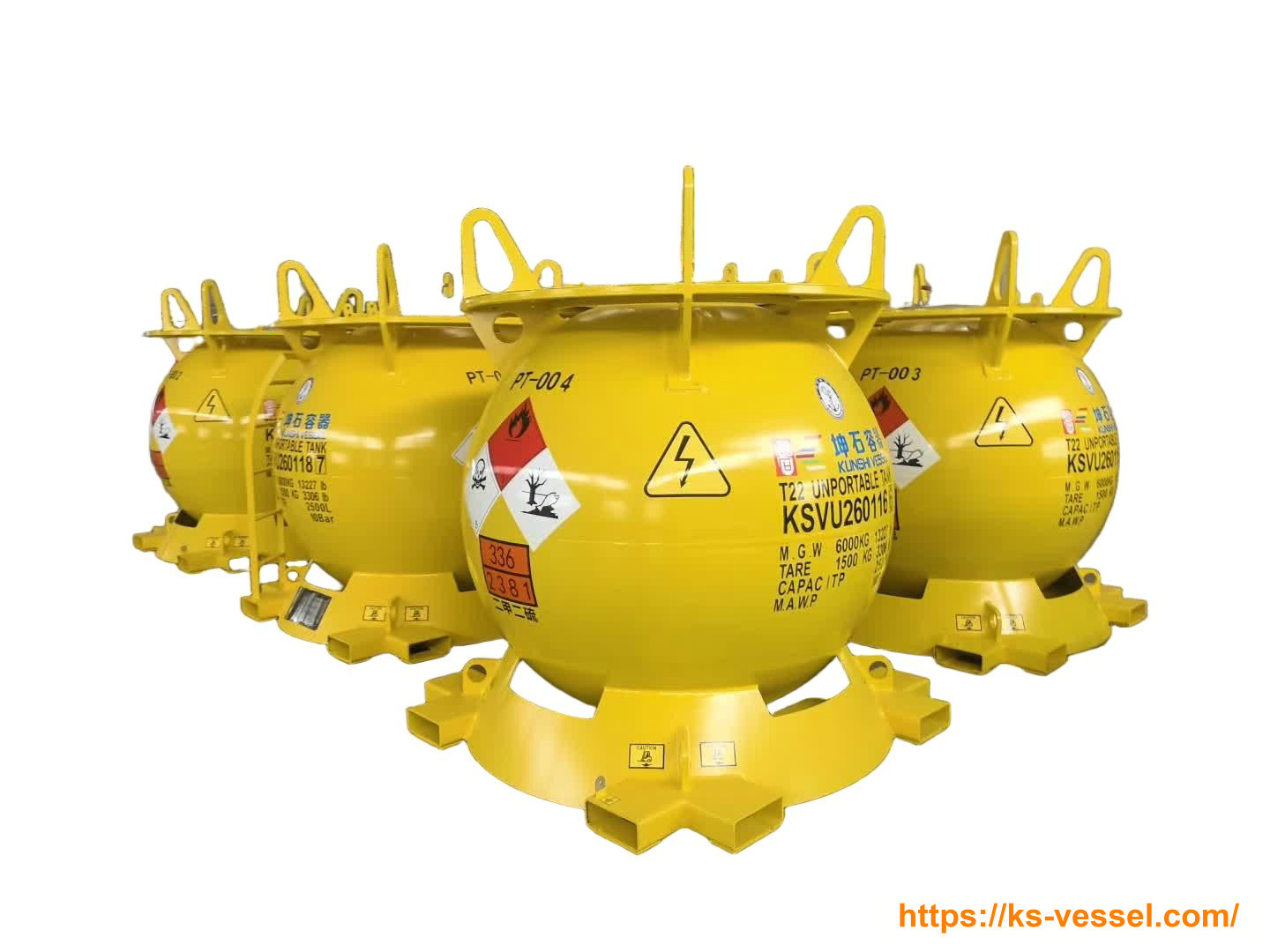

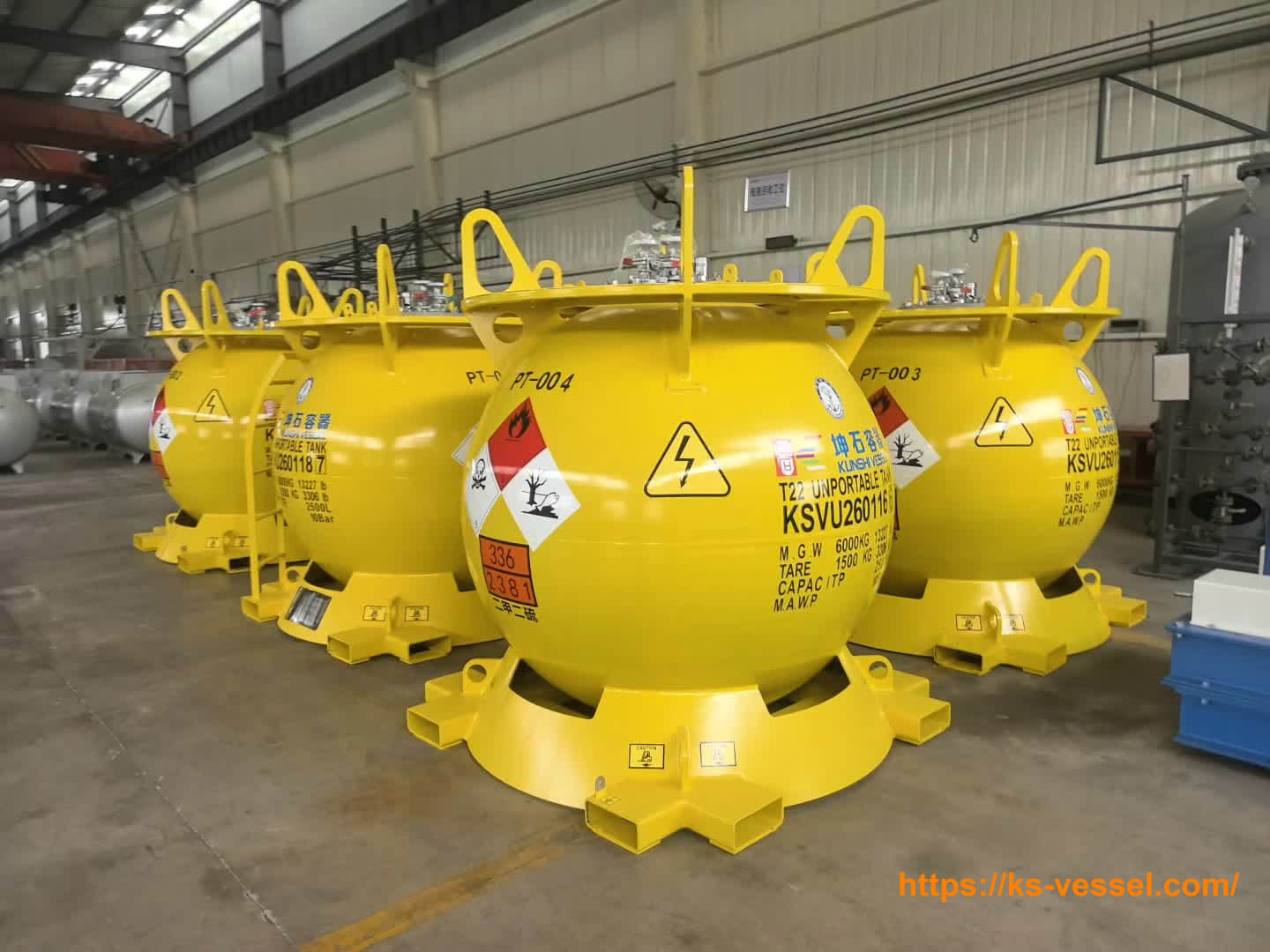

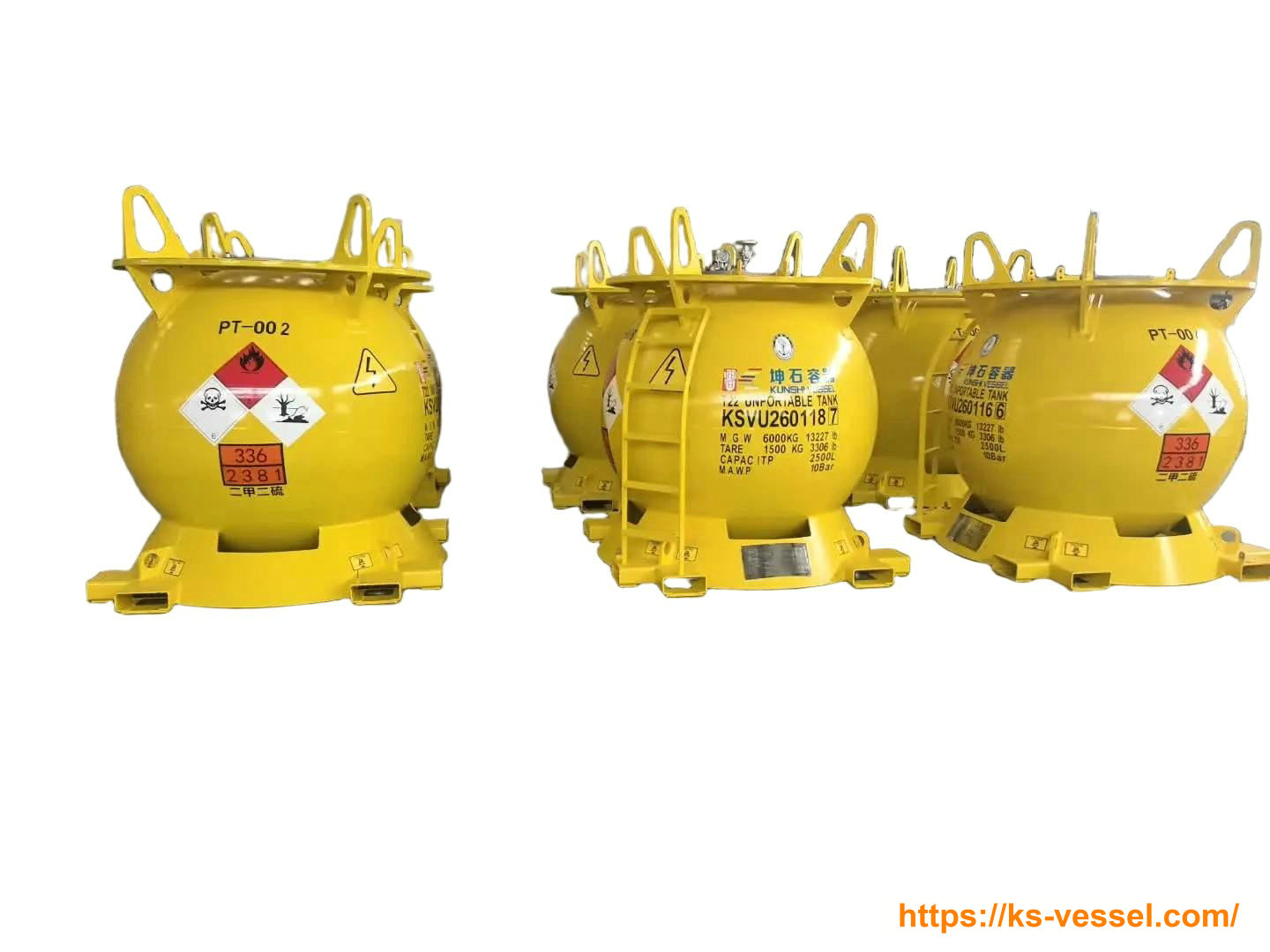

Highly Hazardous UN Portable ISO Tank Containers

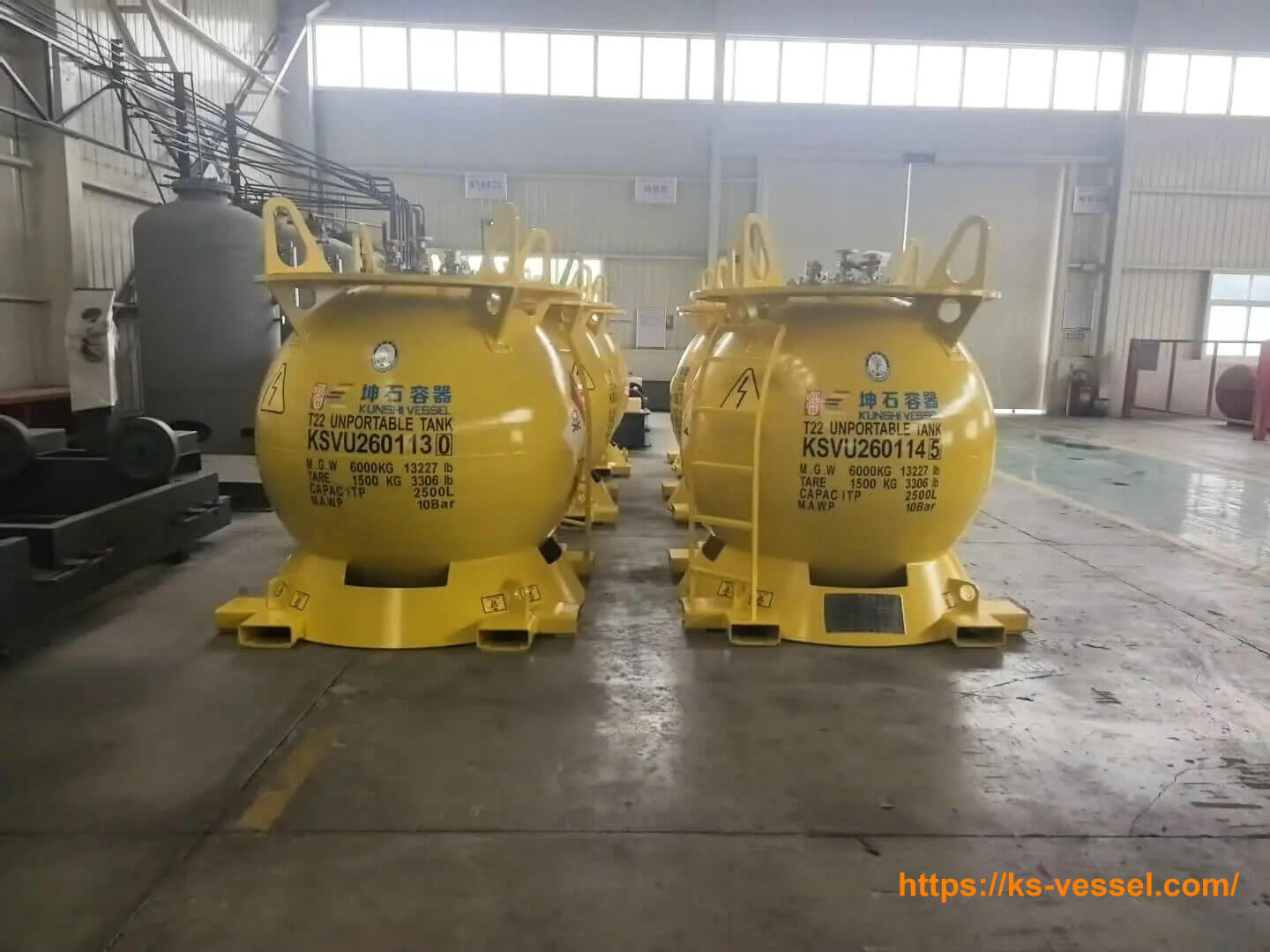

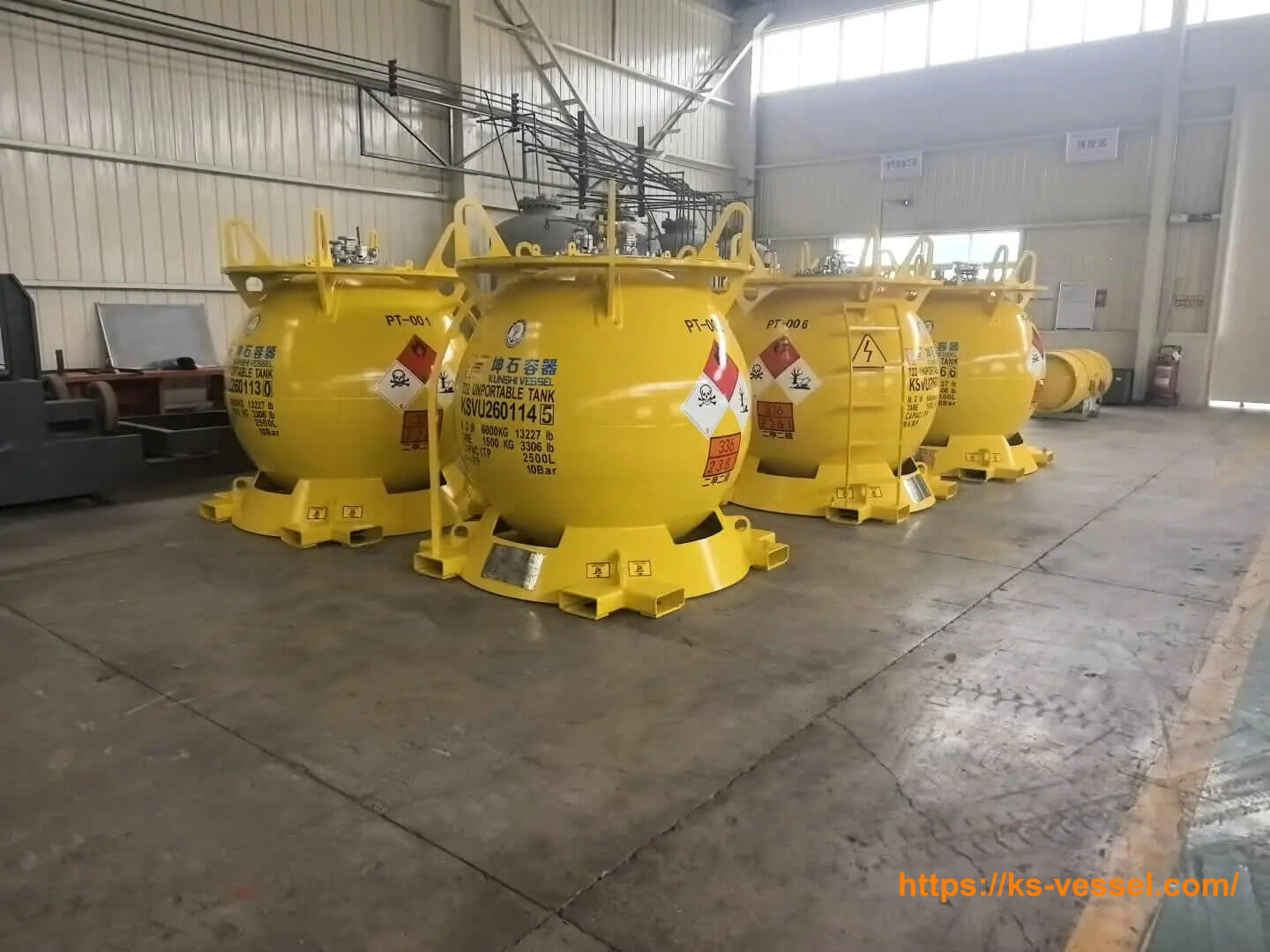

IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 - 24,000 liters
Table of Portable Tank T Codes T1-T22
[Portable tank codes T1-T22 apply to liquid and solid hazardous materials of Classes 3 through 9 which are transported in portable tanks.]
| Portable tank instruction (1) | Minimum test pressure (bar) (2) | Minimum shell thickness (in mm-reference steel) (See §178.274(d)) (3) | Pressure-relief requirements (See §178.275(g)) (4) | Bottom opening requirements (See §178.275(d)) (5) |
|---|---|---|---|---|
| T1 | 1.5 | §178.274(d)(2) | Normal | §178.275(d)(2) |
| T2 | 1.5 | §178.274(d)(2) | Normal | §178.275(d)(3) |
| T3 | 2.65 | §178.274(d)(2) | Normal | §178.275(d)(2) |
| T4 | 2.65 | §178.274(d)(2) | Normal | §178.275(d)(3) |
| T5 | 2.65 | §178.274(d)(2) | §178.275(g)(3) | Prohibited |
| T6 | 4 | §178.274(d)(2) | Normal | §178.275(d)(2) |
| T7 | 4 | §178.274(d)(2) | Normal | §178.275(d)(3) |
| T8 | 4 | §178.274(d)(2) | Normal | Prohibited |
| T9 | 4 | 6 mm | Normal | Prohibited for liquids. |
| T10 | 4 | 6 mm | §178.275(g)(3) | Prohibited |
| T11 | 6 | §178.274(d)(2) | Normal | §178.275(d)(3) |
| T12 | 6 | §178.274(d)(2) | §178.275(g)(3) | §178.275(d)(3) |
| T13 | 6 | 6 mm | Normal | Prohibited |
| T14 | 6 | 6 mm | §178.275(g)(3) | Prohibited |
| T15 | 10 | §178.274(d)(2) | Normal | §178.275(d)(3) |
| T16 | 10 | §178.274(d)(2) | §178.275(g)(3) | §178.275(d)(3) |
| T17 | 10 | 6 mm | Normal | §178.275(d)(3) |
| T18 | 10 | 6 mm | §178.275(g)(3) | §178.275(d)(3) |
| T19 | 10 | 6 mm | §178.275(g)(3) | Prohibited |
| T20 | 10 | 8 mm | §178.275(g)(3) | Prohibited |
| T21 | 10 | 10 mm | Normal | Prohibited for liquids. §178.275(d)(2). |
| T22 | 10 | 10 mm | §178.275(g)(3) | Prohibited |
(iii) T50 When portable tank instruction T50 is indicated in Column (7) of the §172.101 Hazardous Materials Table, the applicable liquefied compressed gas and chemical under pressure descriptions are authorized to be transported in portable tanks in accordance with the requirements of §173.313 of this subchapter.
(iv) T75. When portable tank instruction T75 is referenced in Column (7) of the §172.101 Table, the applicable refrigerated liquefied gases are authorized to be transported in portable tanks in accordance with the requirements of §178.277 of this subchapter.
(v) UN and IM portable tank codes/special provisions. When a specific portable tank instruction is specified by a "T" Code in Column (7) of the §172.101 Table for a specific hazardous material, a specification portable tank conforming to an alternative tank instruction may be used if:
(A) The alternative portable tank has a higher or equivalent test pressure (for example, 4 bar when 2.65 bar is specified);
(B) The alternative portable tank has greater or equivalent wall thickness (for example, 10 mm when 6 mm is specified);
(C) The alternative portable tank has a pressure relief device as specified in the "T" Code. If a frangible disc is required in series with the reclosing pressure relief device for the specified portable tank, the alternative portable tank must be fitted with a frangible disc in series with the reclosing pressure relief device; and
(D) With regard to bottom openings-
(1) When two effective means are specified, the alternative portable tank is fitted with bottom openings having two or three effective means of closure or no bottom openings; or
(2) When three effective means are specified, the portable tank has no bottom openings or three effective means of closure; or
(3) When no bottom openings are authorized, the alternative portable tank must not have bottom openings.
(vi) Except when an organic peroxide is authorized under §173.225(g), if a hazardous material is not assigned a portable tank "T" Code, the hazardous material may not be transported in a portable tank unless approved by the Associate Administrator.
