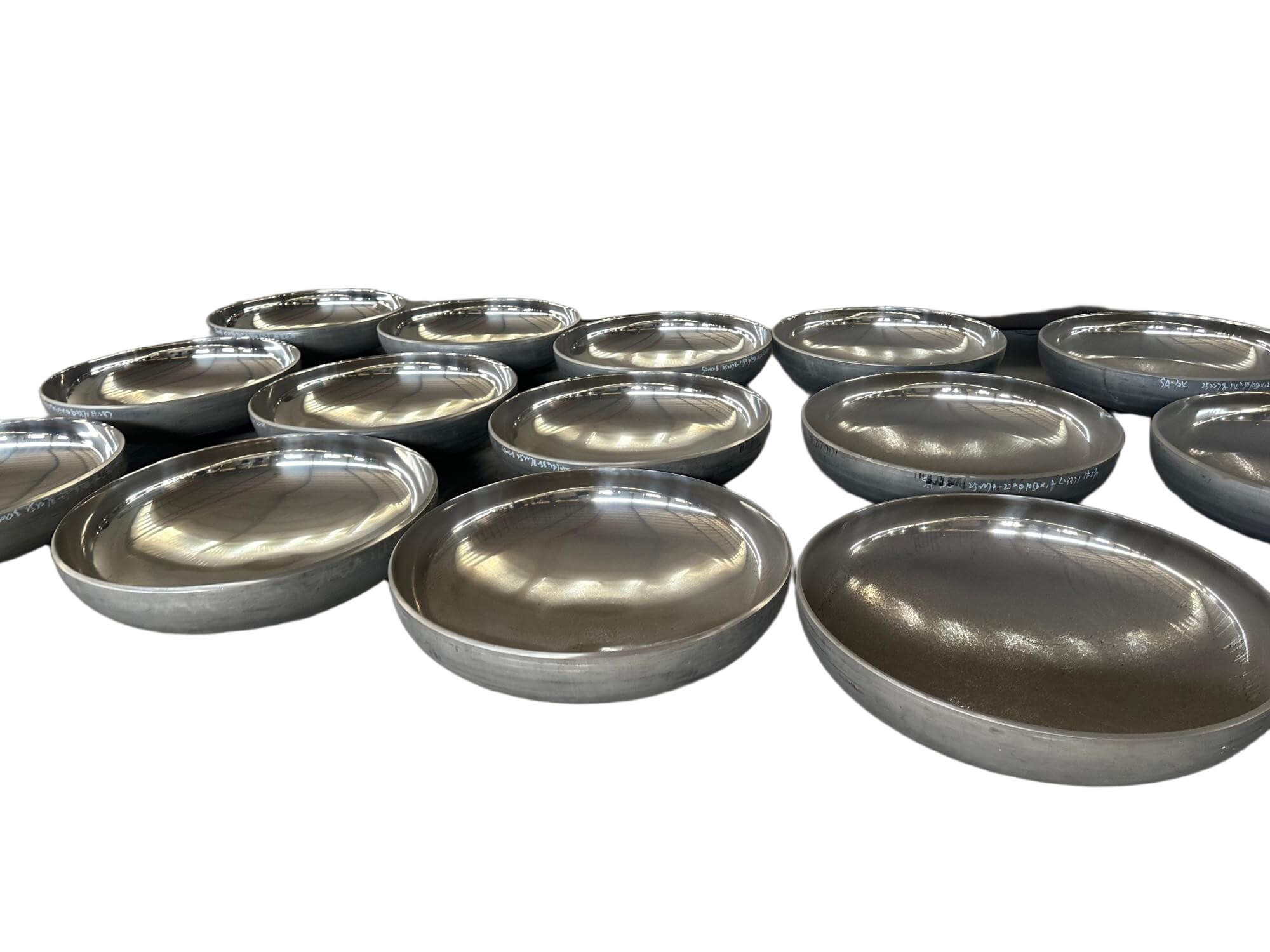

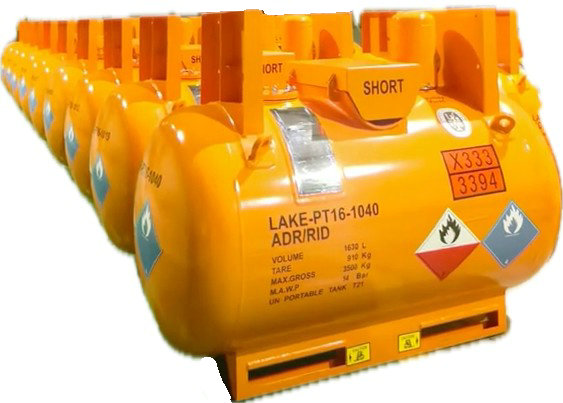

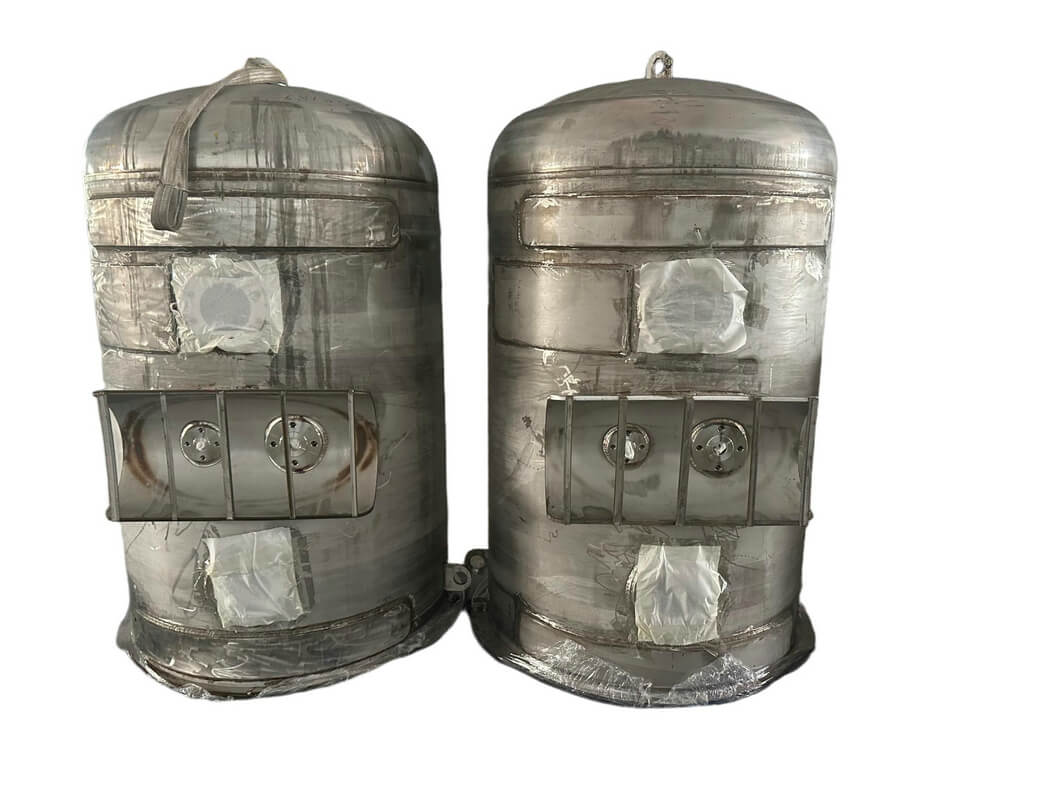

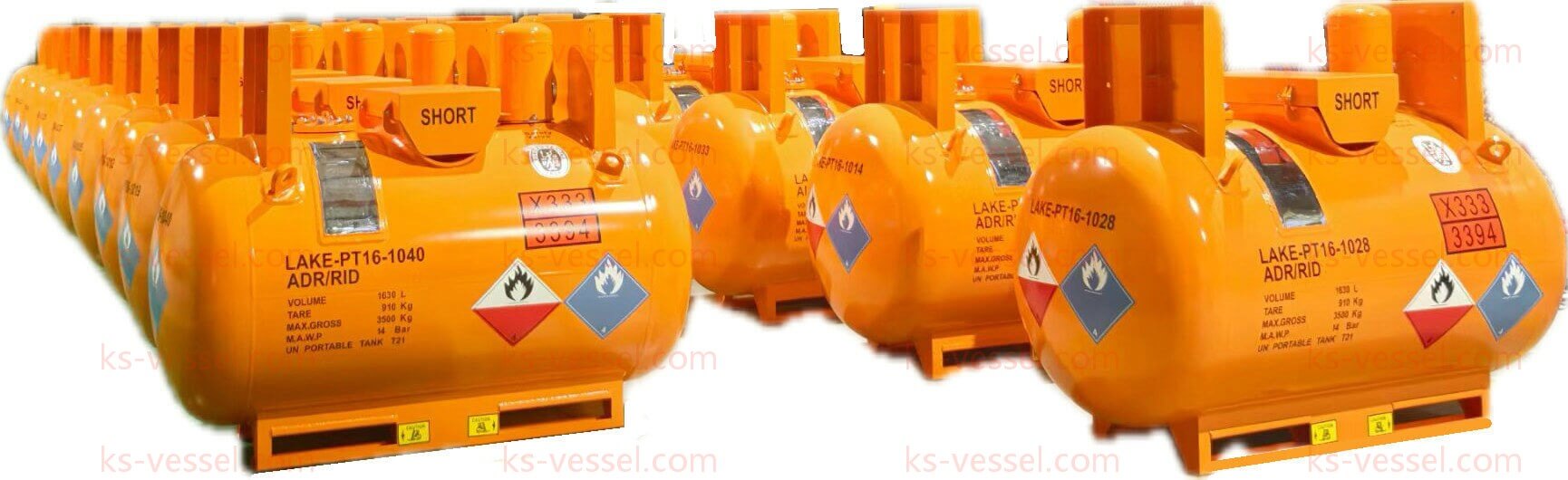

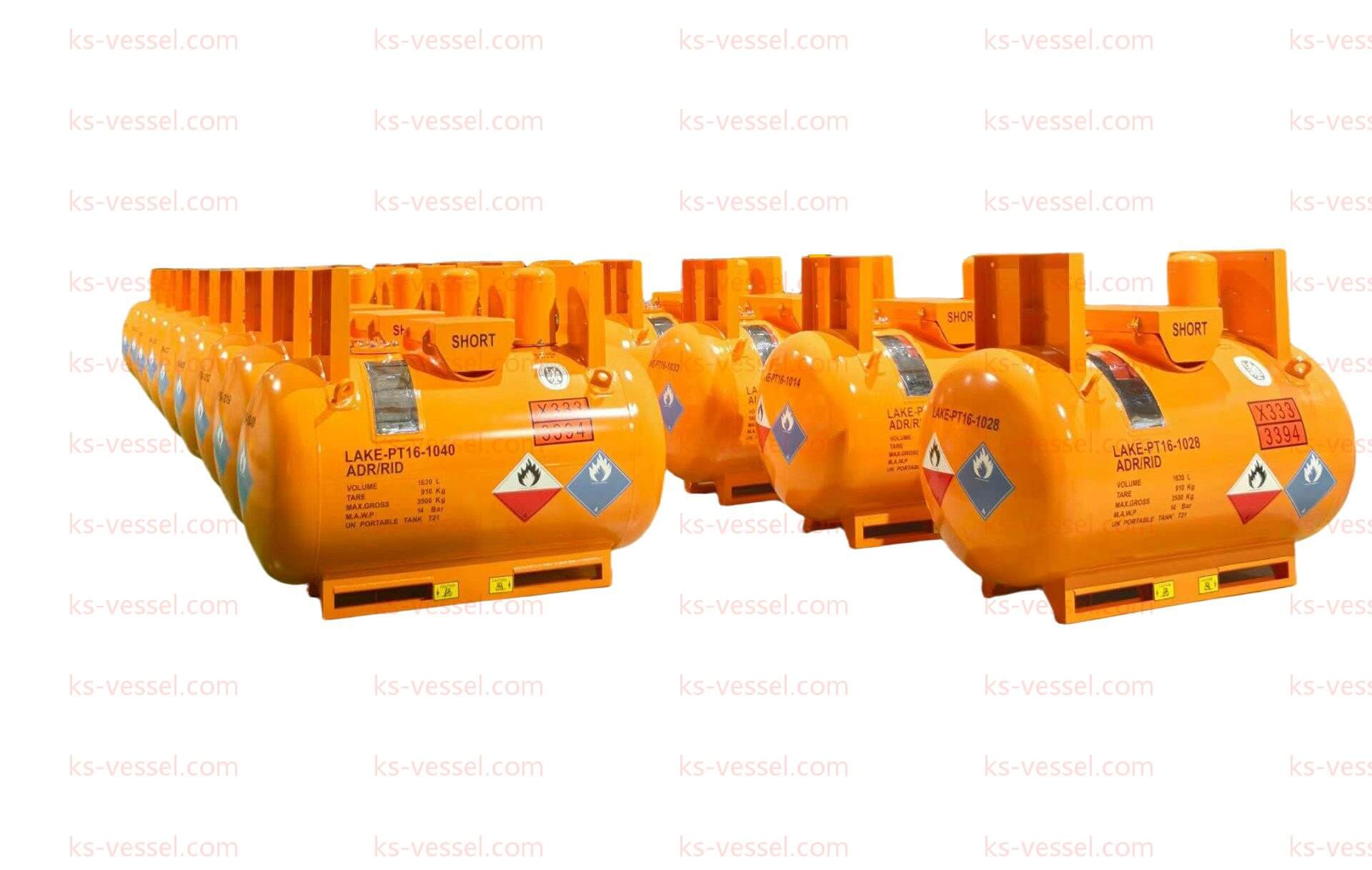

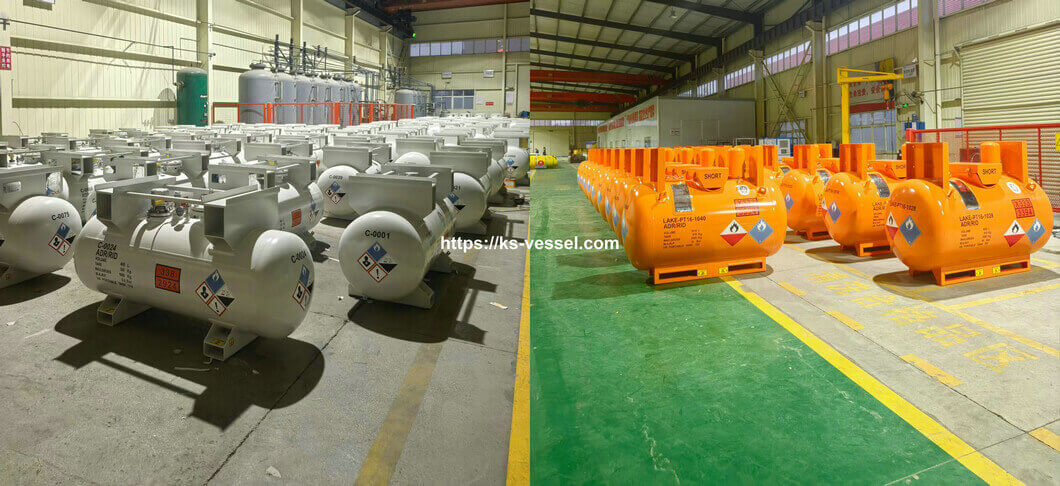

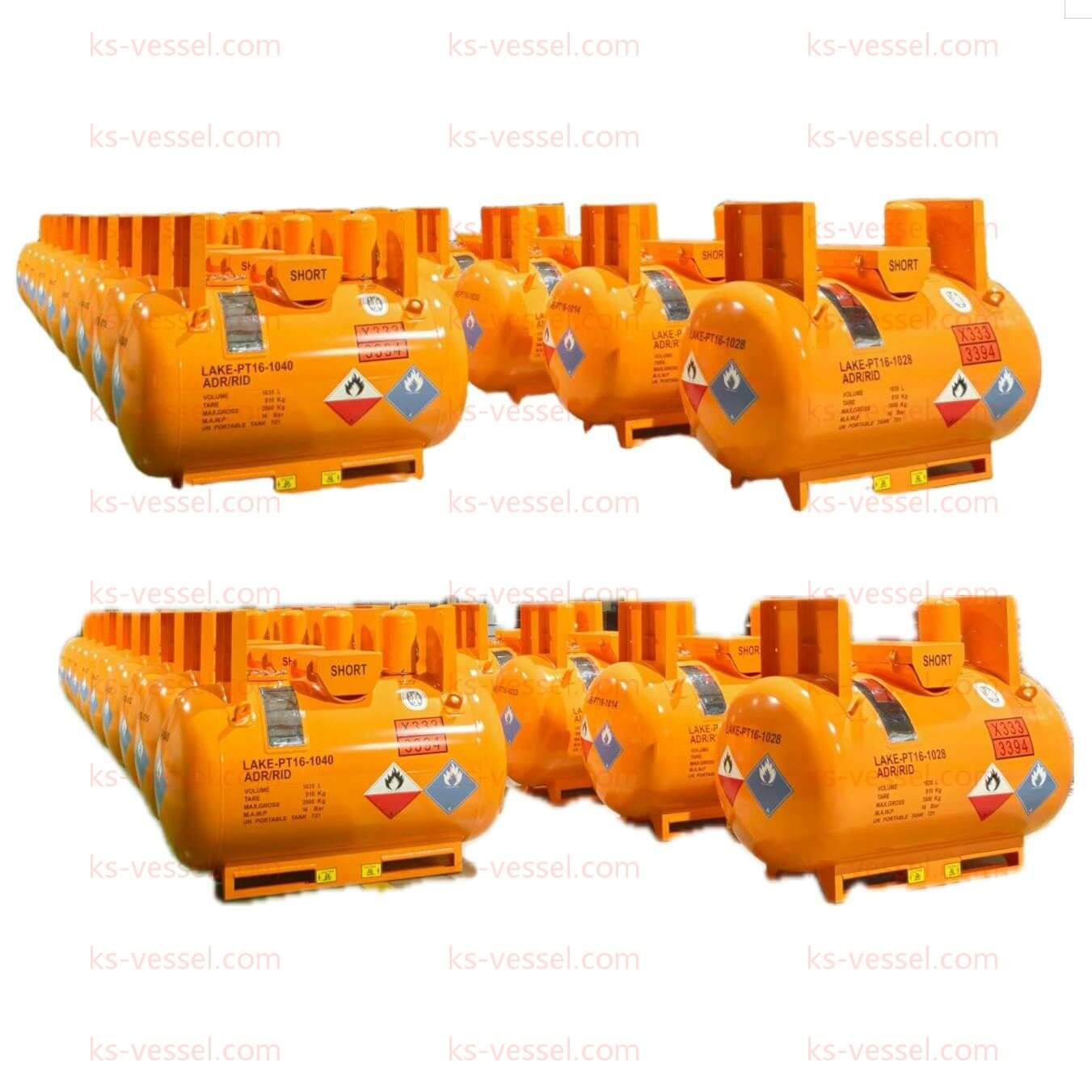

6N Pure Stainless Steel T21 Ks1630 Un3394 3399 C-430 Saddle Type Portable Tank Metal Alky Cylinder
Us DOT ASME BV
C430 UN T21 TEAL Tank Technical Specification for Manufacturing portable Tanks C-430

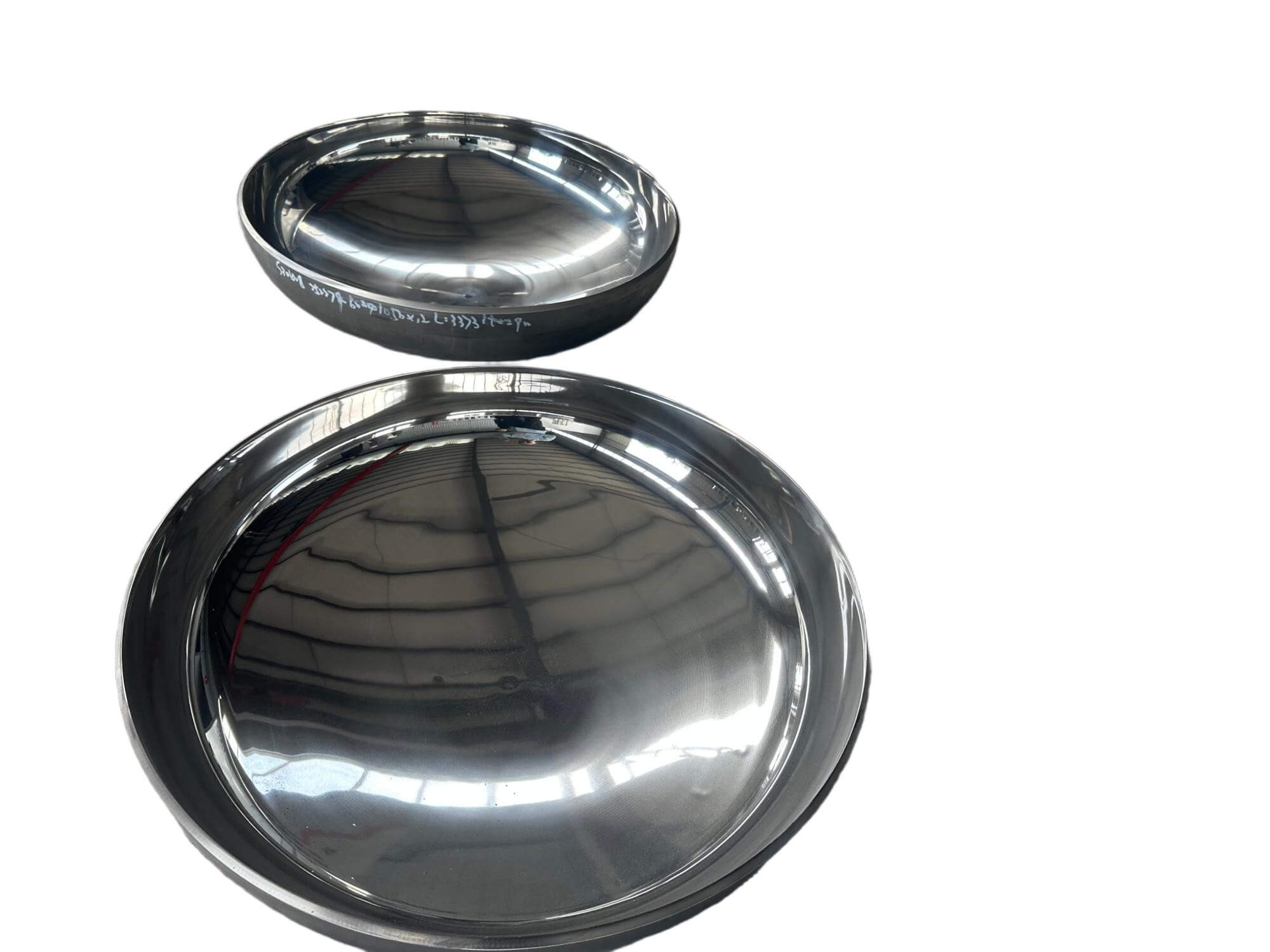

| C-430 Saddle type Portable Tank | ||
| required values | plant data (fill out) | |
| Model | C-430 | KS1630-T21 KS1630-00 |
| Capacity | 1.63 m3 | 1.63m³ |
| Design pressure | 0.931 MPa(g) | 1.4MPa |
| Minimum Design Temperature | -40 ºC | -40 - 52 ºC R |
| Maximum Design Temperature | 65 ºC | +65ºC |
| Nozzle Loading/Unloading | DN25 | DN32 or D25 |
| Nozzle Gas Phase | DN20 | DN20 |
| Heating system | N/A | N/A |
| Heating system Typ | N/A | N/A |
| Service Life | 25 лет | Un-limited |
| Max allowable working pressure | 3.8 barg (200 psig) | 1.4MPa |
| Test pressure | 20.7 barg (300 psig) | 2.1MPa |
| Length | 208 сm | 2085mm=208.5cm+1cm |
| Height | 128 сm | 1380mm=138cm+0.5cm CN PRV inside Built-in safety valve FR PRV outside External safety valve |
| Diameter | 107 сm | 1074mm=107.4cm+0.2cm ( 10 ~12mm) |
| Filling with nitrogen to remove moisture before shipment | YES | Yes |
| Container Material | Steel Structure | SA-240M 304 |
| Type of transportation | Forklift Truck / Lifting Holes | Forklift Truck / Lifting Holes |
| Thermal insulation | N/A | N/A |
| Vent valve | 20 mm | 20mm |
| Dip tube valve | See below table №1 | 40mm or 25mm |
| Relief valve | 2-inch internal spring-loaded safety relief valve. Set pressure: 13.8 barg (200 psig) | Shenyang XinGuang A412F-25P-(3B) 2-inch internal spring-loaded safety relief valve. Set pressure: 15.4 barg (223 psig) |
| Dip tube connection | See below table №1 | DN32 or DN25 |
| Fusible plug | ¾ inch NPT treaded plug (Melting point 177 °C / 350 °F) | ¾ inch NPT treaded plug (Melting point 177 °C / 350 °F) |
| Open spring valve | Shenyang XinGuang A412F-25P-(3B) Relief pressure 16.9 bar / Flow diameter 25 mm. Made in China | Shenyang XinGuang A412F-25P-(3B) Or France PRV Perolo Relief pressure safety valve 15.4 bar / Flow diameter 50 mm. Made in China |
