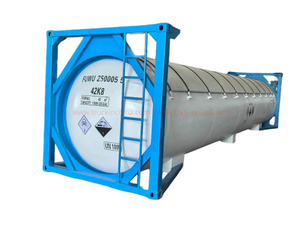

ISO Tank Container For Hazardous Liquids
1. General Parameters 1.1 Design Code ASME VIII DIV. 1 / EN14025 1.2 Maximum Gross Mass 36000 kg 1.3 Nominal Capacity 25000 litre (± 1.0%) 1.4 Vessel Design Temperature -40 to +130 °C 1.5 Maximum Product Loading Temperature (atm.) 130 °C 1.6 Maximum Allowable Working Pressure 4.0 bar Hydrostatic Test Pressure 6.0 bar Maximum External Pressure 0.41 bar 1.7 Tare Mass 3480 kg (±3%) 1.8 Frame (length / width / height) 6058 / 2438 / 2591mm 2. Tank Details | |||||||
Shell: | Material Thickness Finish Material Thickness Finish Shell | SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) Equivalent to 316L Minimum calculated thickness: 4.2mm Corrosion allowance: 0.2mm Manufacture Thickness: 4.4mm Cold Rolled 2B SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) Equivalent to 316L Minimum calculated thickness: 4.5mm Corrosion allowance: 0.2mm Manufacture Thickness: 4.7mm (after forming) Hot Rolled and polished Longitudinal: as welded. Circular: As welded, Bottom 400mm flush and polished(120grit). Ground flush and polished with 120 grit . 2-off stainless steel channel section . As per code requirements 8 longitudinal runs steam heating system on barrel. The longitudinal steam runs manufactured from Duplex steel. The steam heating connectors will be 304 grade. | |||||
Ends | |||||||
Welds | |||||||
Ends 2.4 Stiffening Rings 2.5 Radiography 2.6 Steam Heating | |||||||
2.7 Insulation Shell Ends 2.8 Cladding Shell Ends 2.9 Spillbox | The tank vacuum rings not used for steam heating. 1” BSP inlet, 1” BSP outlet both with captive caps and cables. 4 bar working pressure, 6 bar test with warning decals and markings. A 3/8” condensate drain ball valve is fitted at the lowest position of the outlet. Rockwool (50kg/m3) 50mm thick on aluminium foil. Glasswool (16kg/m3) thickness to suit on aluminium foil. 1.8mm GRP prepainted White (RAL9010) with lapped joints. Seal provided by sealant. 10mm drain hole per panel on bottom centreline. 2.0mm thick GRP one piece end (RAL9010). 2-off 2.0mm Stainless steel 304 boxes fitted. Front spillbox contains manhole and safety relief. Rear spillbox contains air inlet and top discharge provision . Each box is equipped with 2-off DN25 surface mounted PVC drain tubes fitted to opposite end of box. No lids fitted but provision for future fitting is provided. One stainless steel 304 1.5mm thick bottom valve cabinet is fitted around the bottom discharge assembly. No lid and bottom plate to be fitted. | ||||||
2.10 Bottom Valve cabinet | |||||||
3. Frame Details 3.1 Type 3.2 Material 3.3 Corner castings 3.4 Top rails 3.5 Protection Top Bottom 3.6 Ladder 3.7 Walkway 3.8 Earthing Protection 3.9 Painting First layer Second layer Final layer Total | Full frame collor design ISO 1496/3 (1CC) without saddles. Front and rear frame with lowered horizontal bottom crossmembers. SPA-H/Q345D or equivalent. ISO 1161 8-off in total. Integral in frame design. 4-off per tank, 1 per corner on top rail and header . Raised bottom rail, lowered front and rear sill. 300mm wide Stainless steel 304 ladder, fitted to the rear end right hand side. Ladder rungs to be antislip type. Fastenings to be stainless steel welded to prevent theft . 1-off full length longitudinal and 2-off transverse 475mm wide aluminium type (F-style). Walkway supported off spillboxes and end frames using stainless steel fastenings with nuts. 1-off stainless steel lug fitted to rear end bottom of frame. Carbon steel shotblasted to Sa 2½ profile Epoxy zinc rich primer 30 microns min DFT Epoxy primer 40 microns min DFT Acrylic 50 microns min DFT 120 microns min DFT |
T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;
Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
Compounds, cleaning liquid, UN1760,
Corrosive liquid, acidic, inorganic, n.o.s., UN3264,
Corrosive liquid, acidic, organic, n.o.s., UN3265,
Corrosive liquid, basic, inorganic, n.o.s., UN3266,
Hypochlorite solutions, UN1791,
Hydrochloric acid solution, UN1789,
Sulfuric acid, UN2796,
BATTERY FLUID, ALKALI UN 2797,
Hydrochloric Acid HCl UN1789
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
