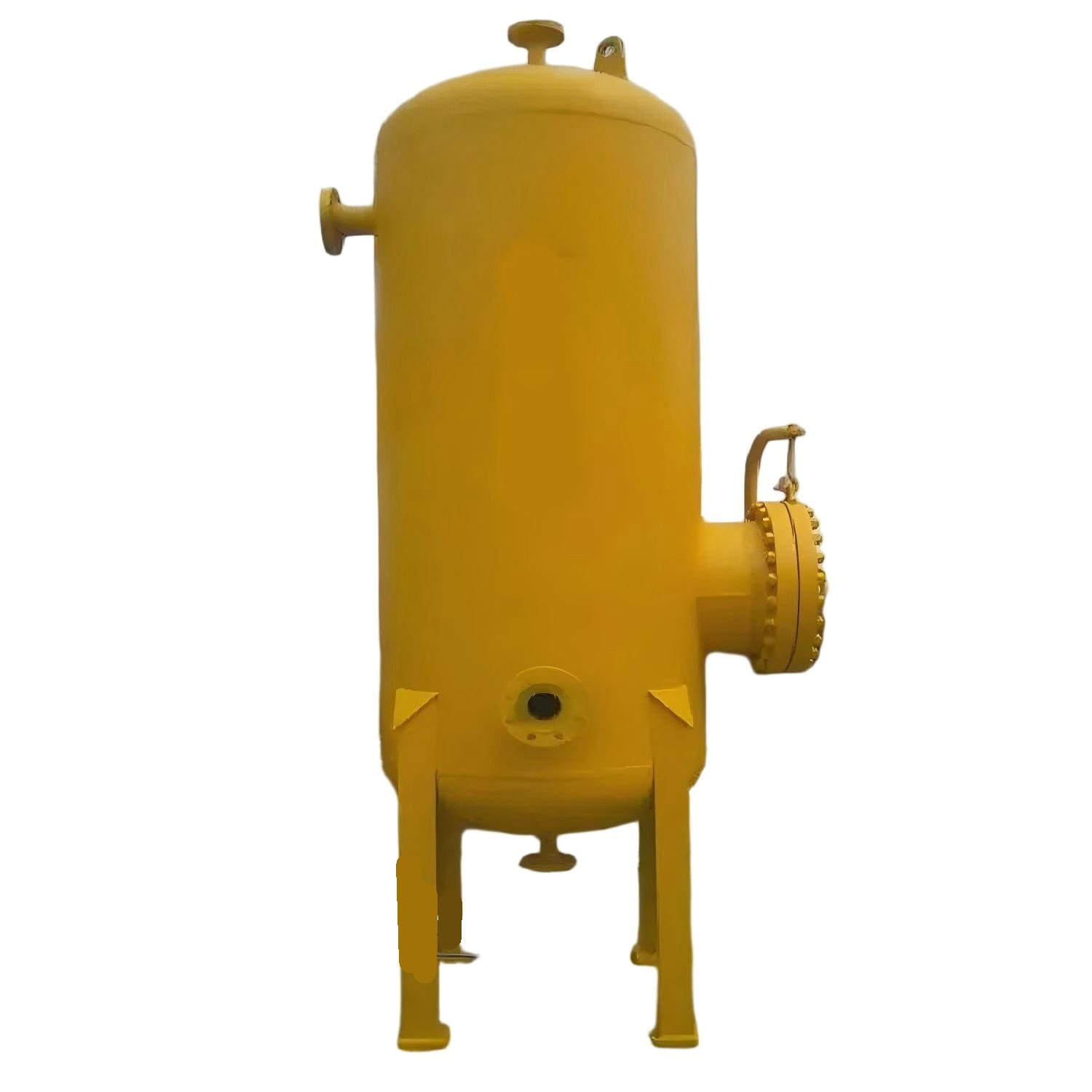

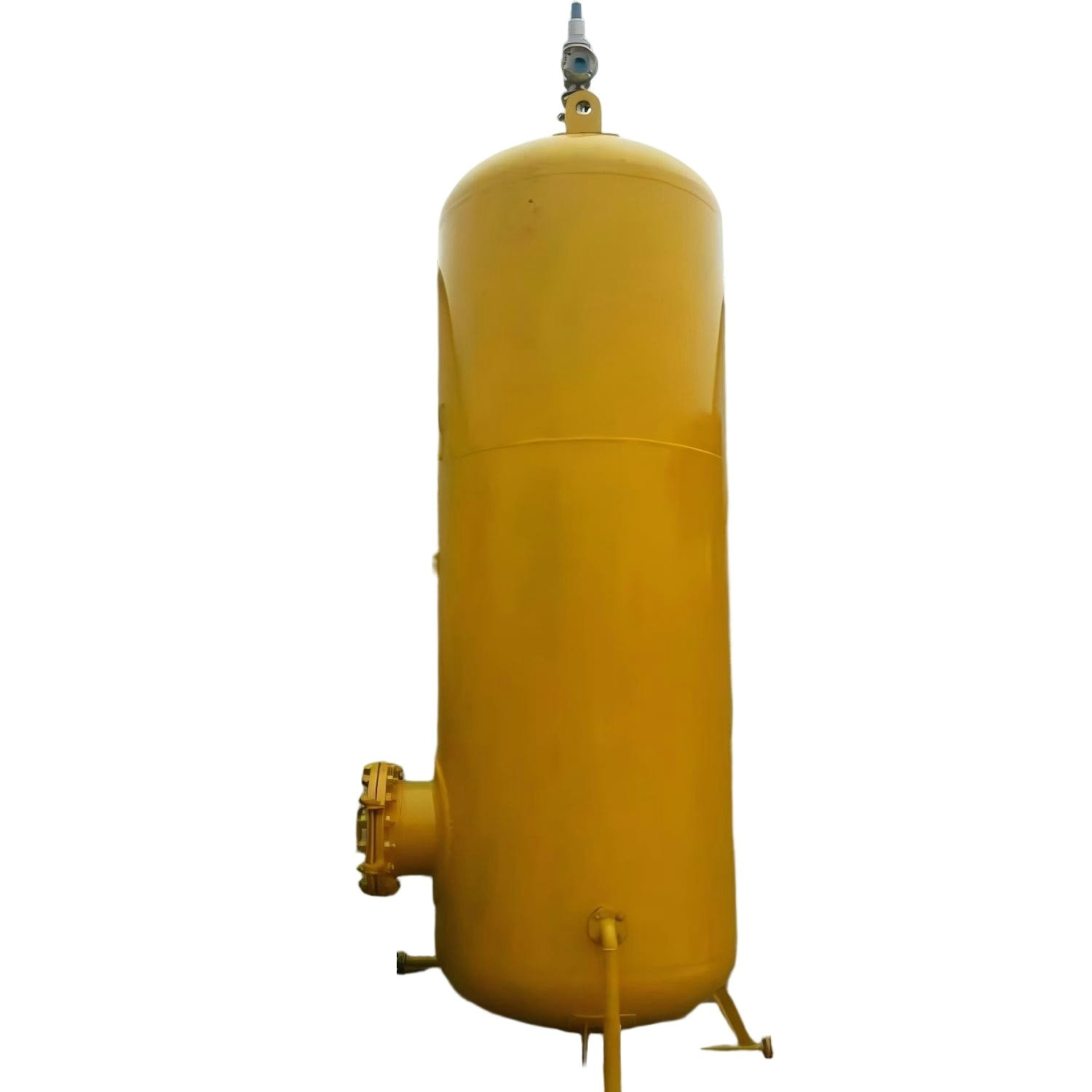

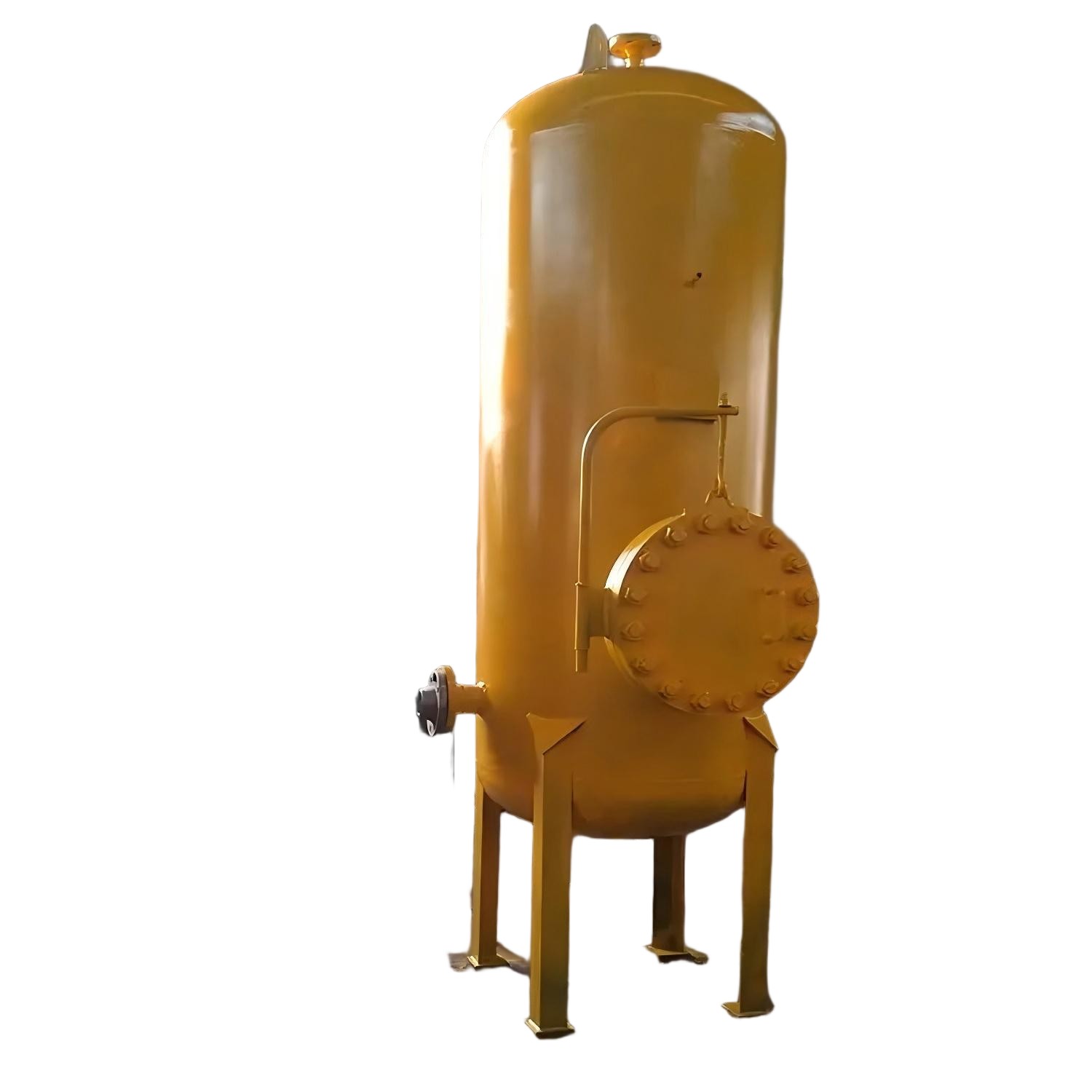

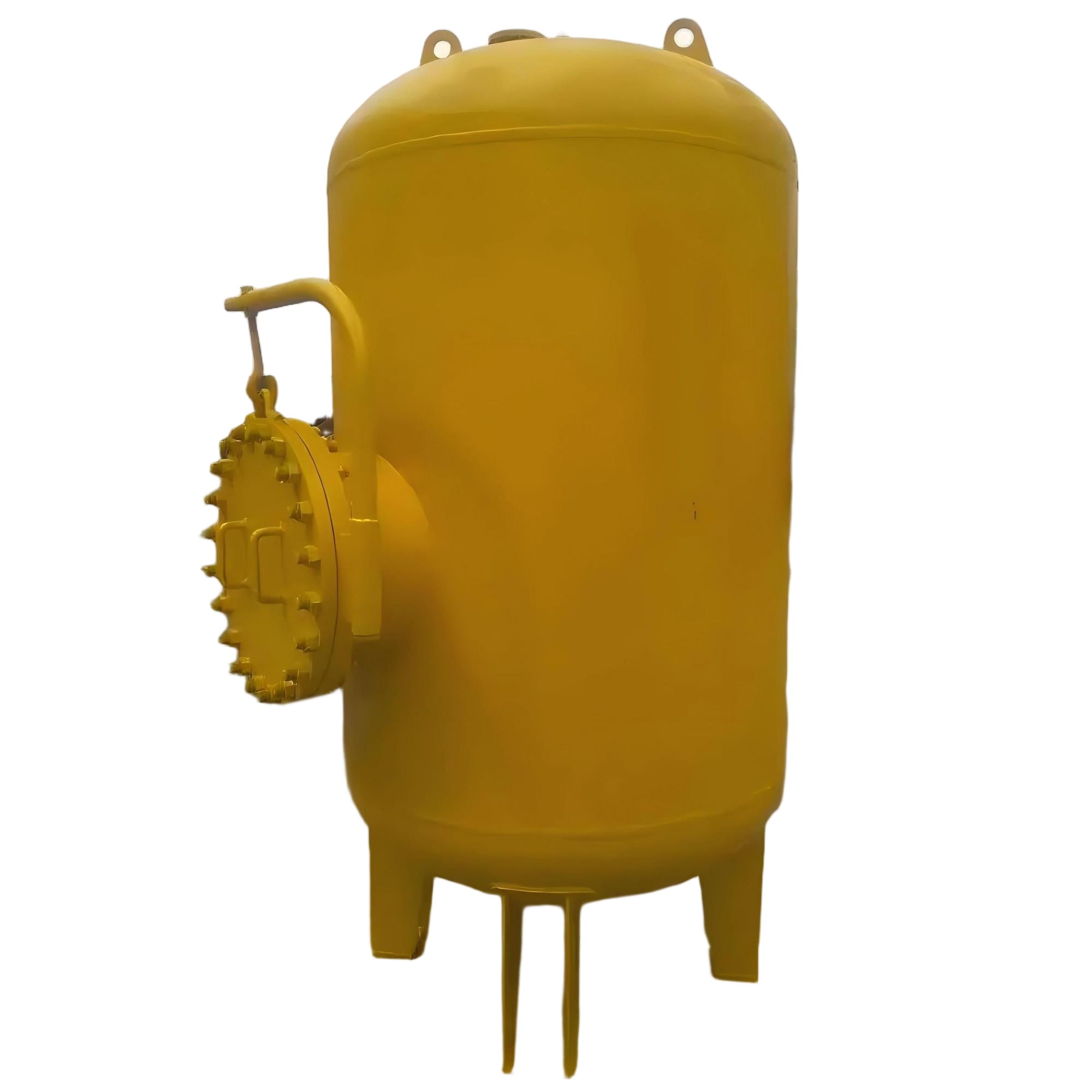

CNG Natural Gas Buffer Tanks (Q345R 16MnDR 1~10m3)
Natural gas buffer tank
Natural gas recovery tank
Natural gas sewage tank
CNG buffer tank
CNG recovery tank
CNG Sewage tank
Compressed natural gas buffer tank
Compressed natural gas recovery tank
| Parameter table of liquid ammonia storage tank | |||||||||
| No | Name | Design pressure / temperature | Capacity (m3) | Body specifications / head wall thickness(mm) | Material | Net Weight (Kg) | Total Length (mm) | Level gauge center distance(mm) | Note |
| 1 | Liquid ammonia storage tank DN1400 V=5m3 | 2.16/-20/54 | 5 | DN1400×2750×12/12 | Q345R | 2465 | 3547 | 1600 | Setting pressure of safety valve is 2.23MPa, the maximum allowable working pressure is 2.34MPa |
| 2 | Liquid ammonia storage tank DN1600 V=10m3 | 2.16/-20/54 | 10 | DN1600×4400×12/14 | Q345R | 3700 | 5299 | 1800 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.27MPa |
| 3 | Liquid ammonia storage tank DN1800 V=15m3 | 2.16/-20/54 | 15 | DN1800×5250×14/14 | Q345R | 5030 | 6249 | 2000 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.24MPa |
| 4 | Liquid ammonia storage tank DN2000 V=20m3 | 2.16/-20/54 | 20 | DN2000×5650×16/16 | Q345R | 6680 | 6751 | 2200 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.26MPa |
| 5 | Liquid ammonia storage tank DN2200 V=25m3 | 2.16/-20/54 | 25 | DN2200×5770×16/16(15) | Q345R | 7620 | 7006 | 2400 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 6 | Liquid ammonia storage tank DN2200 V=30m3 | 2.16/-20/54 | 30 | DN2200×7080×16/16(15) | Q345R | 8760 | 8316 | 2400 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 7 | Liquid ammonia storage tank DN2400 V=30m3 | 2.16/-20/54 | 30 | DN2400×5760×18/18(16.5) | Q345R | 9340 | 7098 | 2600 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 8 | Liquid ammonia storage tank DN2400 V=40m3 | 2.16/-20/54 | 40 | DN2400×7970×18/18(16.5) | Q345R | 11780 | 9308 | 2600 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 9 | Liquid ammonia storage tank DN2800 V=40m3 | 2.16/-20/54 | 40 | DN2800×5490×20/22(20) | Q345R | 11580 | 7042 | 3000 | Setting pressure of safety valve is 2.23MPa, the maximum allowable working pressure is 2.32MPa |
| 10 | Liquid ammonia storage tank DN2400 V=50m3 | 2.16/-20/54 | 50 | DN2400×10180×18/18(16.5) | Q345R | 14900 | 11518 | 2600 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 11 | Liquid ammonia storage tank DN2600 V=50m3 | 2.16/-20/54 | 50 | DN2600×8480×18/20(18) | Q345R | 13800 | 9920 | 2800 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 12 | Liquid ammonia storage tank DN2800 V=50m3 | 2.16/-20/54 | 50 | DN2800×7110×20/22(20) | Q345R | 14360 | 8662 | 3000 | Setting pressure of safety valve is 2.23MPa, the maximum allowable working pressure is 2.32MPa |
| 13 | Liquid ammonia storage tank DN2600 V=60m3 | 2.16/-20/54 | 60 | DN2600×10360×18/20(18) | Q345R | 16350 | 11800 | 2800 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 14 | Liquid ammonia storage tank DN3000 V=80m3 | 2.16/-20/54 | 80 | DN3000×10240×22/22(20.1) | Q345R | 22560 | 11902 | 3200 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 15 | Liquid ammonia storage tank DN3200 V=80m3 | 2.16/-20/54 | 80 | DN3200×8810×22/24(22) | Q345R | 22260 | 10564 | 3400 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.26MPa |
| 16 | Liquid ammonia storage tank DN3000 V=100m3 | 2.16/-20/54 | 100 | DN3000×13070×22/22(20.1) | Q345R | 27200 | 14732 | 3200 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.22MPa |
| 17 | Liquid ammonia storage tank DN3200 V=100m3 | 2.16/-20/54 | 100 | DN3200×11290×22/24(22) | Q345R | 26520 | 13044 | 3400 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.26MPa |
| 18 | Liquid ammonia storage tank DN3600 V=120m3 | 2.16/-20/54 | 120 | DN3600×10510×26/26(24) | Q345R | 33120 | 12466 | 3800 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.25MPa |
| 19 | Liquid ammonia storage tank DN3600 V=150m3 | 2.16/-20/54 | 150 | DN3600×13460×26/26(24) | Q345R | 40400 | 15416 | 3800 | Setting pressure of safety valve is 2.22MPa, the maximum allowable working pressure is 2.25MPa |
| 20 | Liquid ammonia storage tank DN3800 V=200m3 | 2.16/-20/54 | 200 | DN3800×16290×26/28(24) | Q345R | 50395 | 18348 | 4000 | Setting pressure of safety valve is 2.23MPa, the maximum allowable working pressure is 2.29MPa |
