6N High Pure 110L Metal Organic Catalyst Triethylaluminum TEAL UN3399 3394 SS304 Stainless Steel Tank Cylinder
Adr/Rid Organometallic Substance, Liquid, Water- Reactive
Metal organic catalyst KSC110L Cylinder
Product Model ：KSC110L
Volume：110L
Operating Temperature：-40~60℃
Certification Medium：TEA ,TEOS、UN3399 … 3394…
Optional Certificate：UN
Work Pressure：1.2MPa
Product Description：Precision containers in the high-purity gas storage field are designed with a focus on safety,purity,and compatibility.
SS

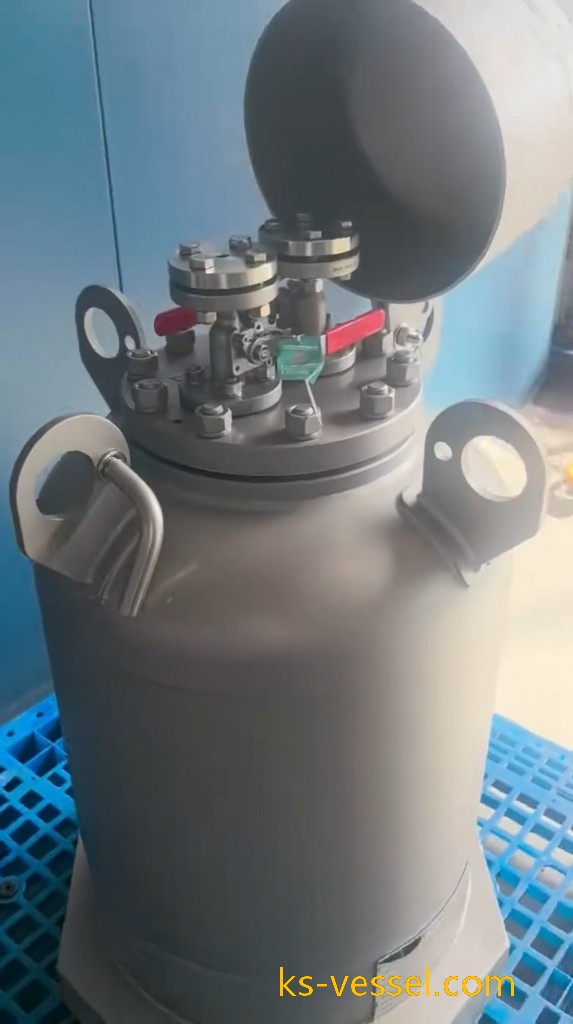

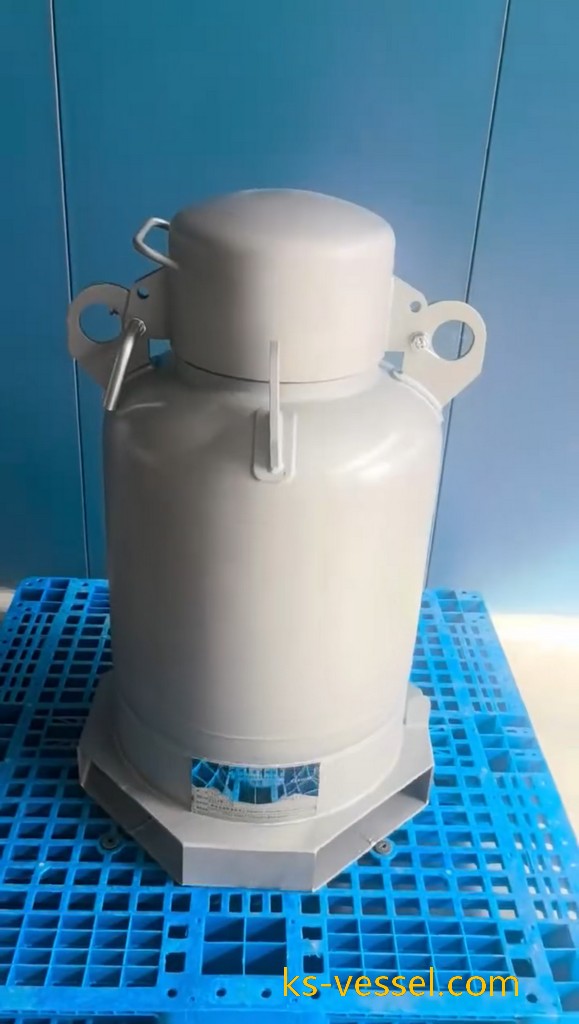

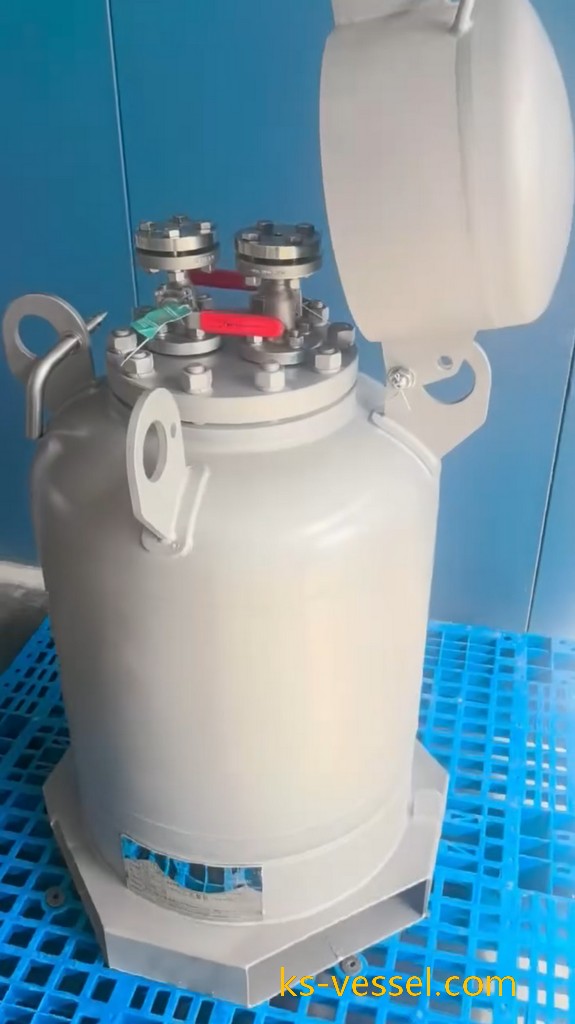

110L Triethylaluminum Stainless Steel Storage Tank Specifications
Triethylaluminum (TEA) is a highly reactive, flammable, and pyrophoric hazardous chemical that requires strict compliance with safety and technical requirements during storage. The following are the core specifications and key notes for the 110L triethylaluminum stainless steel storage tank:
I. Core Technical Parameters
Parameter Item | Specification |
Tank Capacity | 110L |
Design Pressure | 0.6 MPa |
Test Pressure | 1.0 MPa |
Design Temperature Range | -40 ~ 60 ℃ |
Main Body Material | S30408 Stainless Steel (equivalent to 304 stainless steel, with excellent corrosion resistance and low impurity content) |
II. Key Safety Notes
• Triethylaluminum is pyrophoric (ignites spontaneously in air), so the storage tank must be strictly sealed to prevent air ingress. The tank should be equipped with a dedicated pressure relief valve and a sealed sampling port, and the connection parts should use corrosion-resistant and airtight seals (such as fluororubber or metal seals).
• The test pressure of 1.0 MPa is the hydrostatic test pressure for the tank. The test shall be carried out in accordance with the requirements of GB 150 "Pressure Vessels" to ensure no leakage, deformation or other defects of the tank body.
• The storage environment must be dry, well-ventilated, and away from open flames, heat sources and oxidants. The ambient temperature should be controlled within the design temperature range to avoid excessive pressure inside the tank caused by high temperature or material solidification caused by ultra-low temperature.
• S30408 stainless steel has good corrosion resistance to triethylaluminum, but it is forbidden to contact the tank with strong acids, strong bases and other substances that may corrode the material to avoid damaging the tank body.
• Before use, the tank should be purged and replaced with inert gas (such as nitrogen) to remove the air inside the tank. During use and storage, regular inspections of the tank's sealing performance, pressure status and tank body integrity should be carried out, and detailed inspection records should be kept.
III. Supplementary Instructions
This storage tank is specially designed for the storage of triethylaluminum. It is strictly prohibited to use it for storing other incompatible chemicals. The operation, maintenance and inspection of the tank must be carried out by professional personnel who are familiar with the hazardous characteristics of triethylaluminum and have received professional training. All operations shall comply with the relevant national standards and safety regulations for hazardous chemicals storage.
