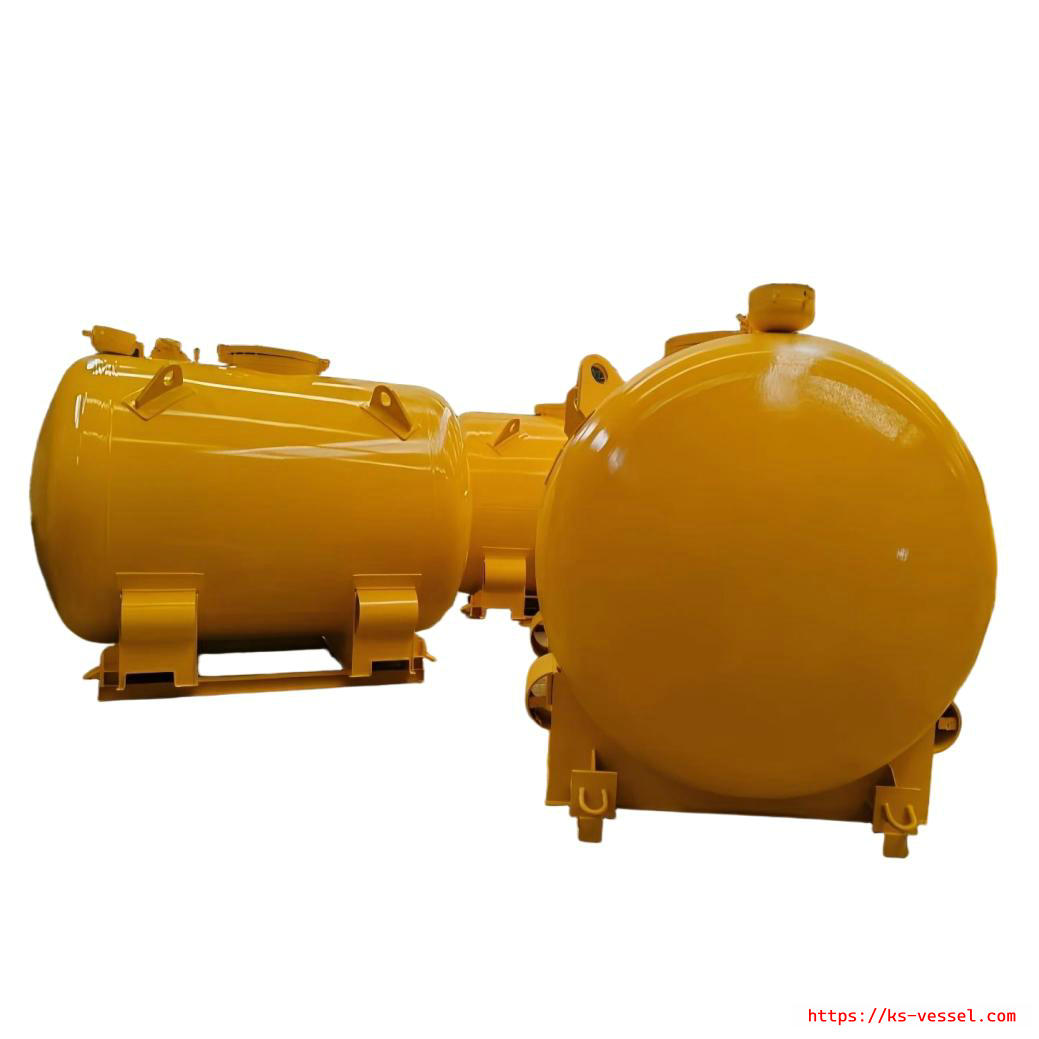

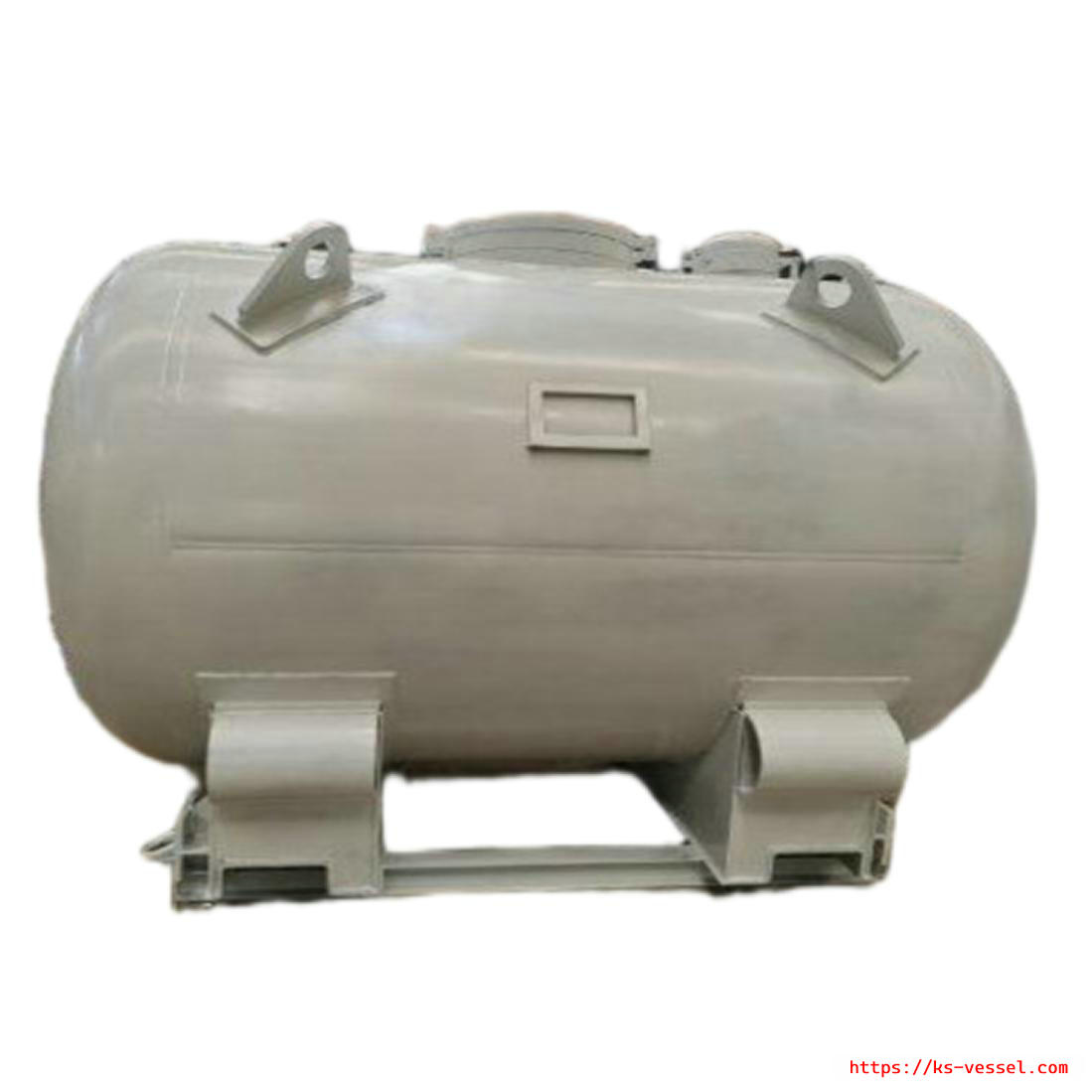

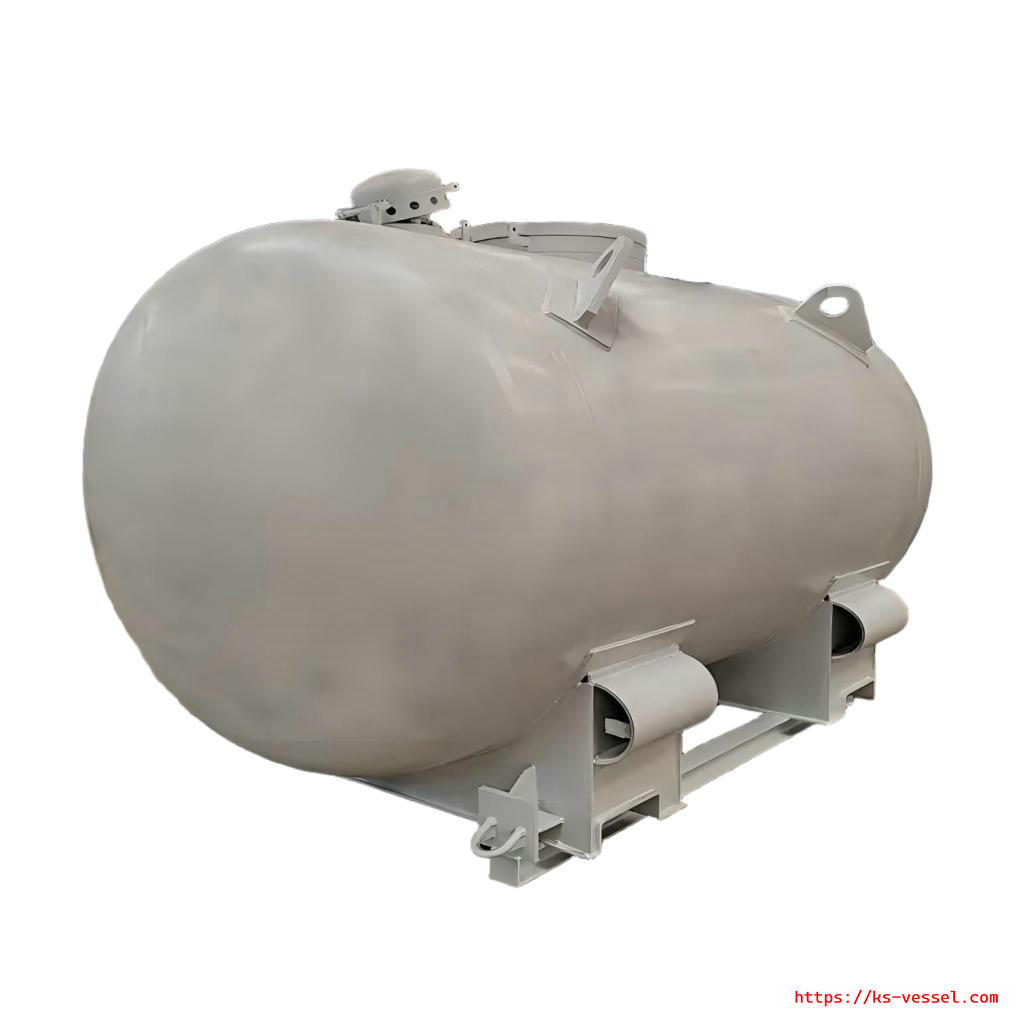

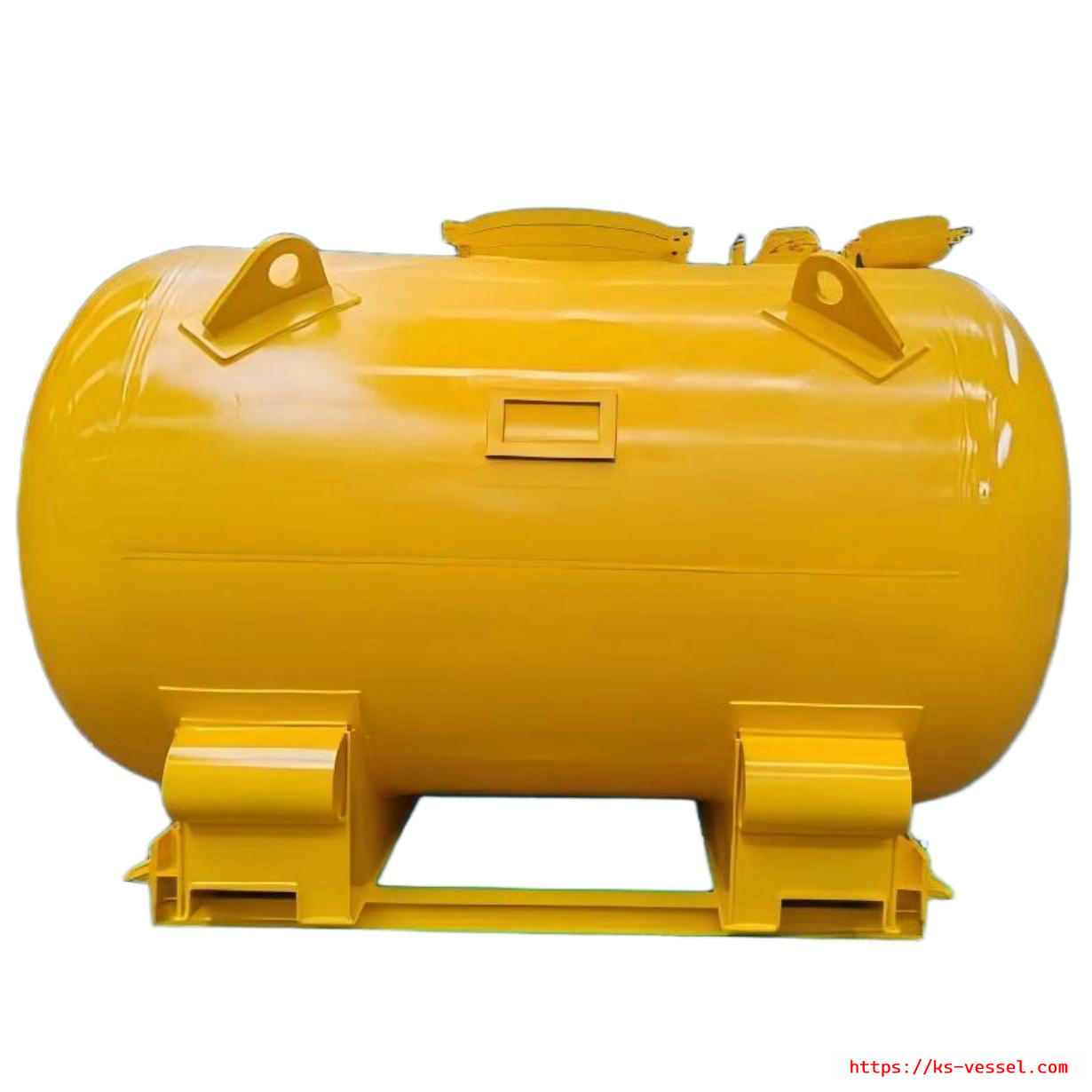

C1980 T21 Portable Tank Container For Metal Alkyls Storage Transport TEAL TMA UN3394/UN3398/UN3399 Organometallic Substance
Container Marerial: Q345r, 16MnDr,SA516
Mobile Tank Container, Alkyl Aluminum Storage Tank, UN3394/UN3398/UN3399, CCS Certified
Shell Thickness: 10mm 、12mm
Size:3030x1953x2273mmmm
Medium temperature Max 70 ℃
Inner diameter dimension:1900mm
Volume: 7.52 m3
Pressure :0.6-1.82MPaMPa
Net Weight :3038kgs
Nozzles Purpose Inlet, Outlet, Drain,etc. : DN25/DN40/DN80mm
Alkyl Aluminum Storage Tank: Safe and Reliable / Easy to Operate / Strong Sealing Performance
Trimethylaluminum (TMA)| C3H9Al, UN 3394
Triethylaluminum (TEAL) Triethyl aluminium / aluminum triethanide | C6H15Al ,UN 3394
Triisobutylaluminum (TIBAL) | C12H27Al, UN 3394
Triethylborane ( TEB)| C6H15B,UN3399
T21 UN Portable Tanks | Storage Volume (90% full) | Dimensions Length |
Diameter |
Height |
C-250 Metal Alkyls Cylinder | 829 l (219 gal) | 208 cm (82 in) | 81 cm (32 in) | 96.5 cm (38 in) |
C-430 dome type | 1,465 l | 208 cm | 107 cm | 122 cm |
| Metal Alkyls Cylinder | (387 gal) | (82 in) | (42 in) | (48 in) |
C-430 saddle type | 1,465 l | 208 cm | 107 cm | 128 cm |
| Metal Alkyls Cylinder | (387 gal) | (82 in) | (42 in) | (50.5 in) |
C-1980 Tank | 6,745 l (1,782 gal) | 305 cm (120 in) | 190 cm (74.8 in) | 224 cm (88.2 in) |
20FT ISOTANK | 19,200-21,150 l (5,068-5,584 gal) | 606 cm (239 in) | 244 cm (96 in) | 259 cm (102 in) |
Aluminum alkyls | Cylinders / UN Portable Tanks / Containers | |||
Chemical name | Acronym | Molecular formula | CAS No. | EINECS/ELINCS No. |
Trimethylaluminum | TMAL | (CH3)3Al | 75-24-1 | 200-853-0 |
Triethylaluminum | TEAL | (C2H5)3Al | 97-93-8 | 202-619-3 |
Triisobutylaluminum | TIBAL | (i-C4H9)3Al | 100-99-2 | 202-906-3 |
Tri-n-hexylaluminum | TNHAL | (n-C6H13)3Al | 1116-73-0 | 214-241-6 |
Tri-n-octylaluminum | TNOAL | (n-C8H17)3Al | 1070-00-4 | 213-964-4 |
Diethylaluminum ethoxide | DEAL-E | (C2H5)2AlOC2H5 | 1586-92-1 | 216-447-1 |
Diisobutylaluminum hydride | DIBAL-H | (i-C4H9)2AlH | 1191-15-7 | 214-729-9 |
Isoprenylaluminum | ISOPRENYL | (i-C4H9)mAl(C5H10)n | 70024-64-5 | 274-261-6 |
Diethylaluminum chloride | DEAC | (C2H5)2AlCl | 96-10-6 | 202-477-2 |
Ethylaluminum sesquichloride | EASC | (C2H5)3Al2Cl3 | 12075-68-2 | 235-137-7 |
Ethylaluminum dichloride | EADC | C2H5AlCl2 | 563-43-9 | 209-248-6 |
Diisobutylaluminum chloride | DIBAC | (i-C4H9)2AlCl | 1779-25-5 | 217-216-8 |
Isobutylaluminum dichloride | MONIBAC From monoisobutylaluminum dichloride | i-C4H9AlCl2 | 1888-87-5 | 217-563-5 |
Aluminoxanes | Cylinders / UN Portable Tanks / Containers | ||||
Chemical name | Acronym | Standard solvent Aluminoxanes are only available in hydrocarbons | Molecular formula | CAS No. | EINECS/ELINCS No. |
Modified methylaluminoxane, Type 3A | MMAO-3A | Heptane | [(CH3)0.7(i-C4H9)0.3AlO]n | 146905-79-5 | not require |
Modified methylaluminoxane, Type 7 | MMAO-7 | Isopar E | [(CH3)0.86(n-C8H17)0.14AlO]n | 206451-54-9 | not require |
Modified methylaluminoxane, Type 12 | MMAO-12 | Toluene | [(CH3)0.95(n-C8H17)0.05AlO]n | 206451-54-9 | not require |
Isobutylaluminoxane, Type 65 | IBAO-65 | Hexane | [i-C4H9AlO]n | 220326-29-4 | not require |
Bis(diisobutylaluminum) oxide | DIBAL-O | Hexane | (i-C4H9)2AlOAl(i-C4H9)2 | 998-00-5 | 213-646-5 |
Magnesium alkyls | Note: All Magnesium alkyls are in heptane, but can in principle be supplied in any other solvent | |||
Chemical name | Acronym | Molecular formula | CAS No. | EINECS/ELINCS No. |
n-Butylethylmagnesium | MAGALA BEM | n-C4H9MgC2H5 | 62202-86-2 | 263-454-0 |
Di-n-butylmagnesium | MAGALA DNBM | (n-C4H9)2Mg | 1191-47-5 | 214-736-7 |
Boron alkyls | Cylinders / UN Portable Tanks / Containers | |||
Chemical name | Acronym | Molecular formula | CAS No. | EINECS/ELINCS No. |
Triethylborane | TEB | (C2H5)3B | 97-94-9 | 202-620-9 |
Zinc alkyls | Cylinders | UN Portable Tanks | Containers | |
Chemical name | Acronym | Molecular formula | CAS No. | EINECS/ELINCS No. |
Dimethylzinc | DMZ | (CH3)2Zn | 544-97-8 | 208-884-1 |
Diethylzinc | DEZ | (C2H5)2Zn | 557-20-0 | 209-161-3 |
We have manufacturing systems including TS, UN, TPED/ADR, DOT and UN. We can provide you with comprehensive cylinder packaging materials
A. Stainless steel welded gas cylinders: Volume 0.1-1000L, pressure 0.1-10Mpa.
B. UN gas cylinders and pressure tanks: Capacity 150-1000L, pressure 0.1-20Mpa.
C. Carbon steel welded gas cylinders: volume 0.1-1000L, pressure 0.1-105Mpa, Marine engineering gas cylinders, adsorption gas cylinders, hydrogen gas cylinders, carbon steel cylinder groups, vacuum gas cylinders.
D. All kinds of small gas cylinders: sampling gas cylinders, MO source gas cylinders, special metal gas cylinders, ultra-high purity gas cylinders, strong corrosion gas cylinders, strong oxidation gas cylinder ultra-high temperature gas cylinders (750°C), ultra-low temperature gas cylinders (-196℃).
KS Vessel,KUNSHI Vessel Stainless Steel Grade 6N High Purity Ultrapure Industrial Gas Cylinder for SiH2CI2 SiHCI3 CIF3 HF WF3 BCI3
Ultrapure Industrial Gas Metal Alkyls Tank Cylinder 40L,516L High Purity Gas Cylinder UN3394 , UN3399 ,UN1741、UN2189、UN2196...
