Views: 2026 Author: Keystone Vessel (Wuhan) Publish Time: 2026-06-26 Origin: Keystone Vessel (Wuhan)

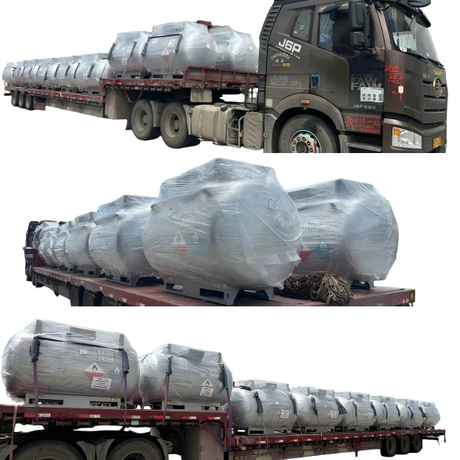

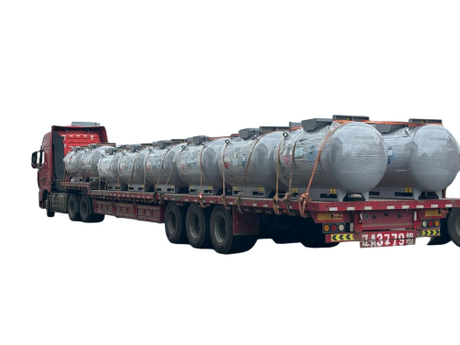

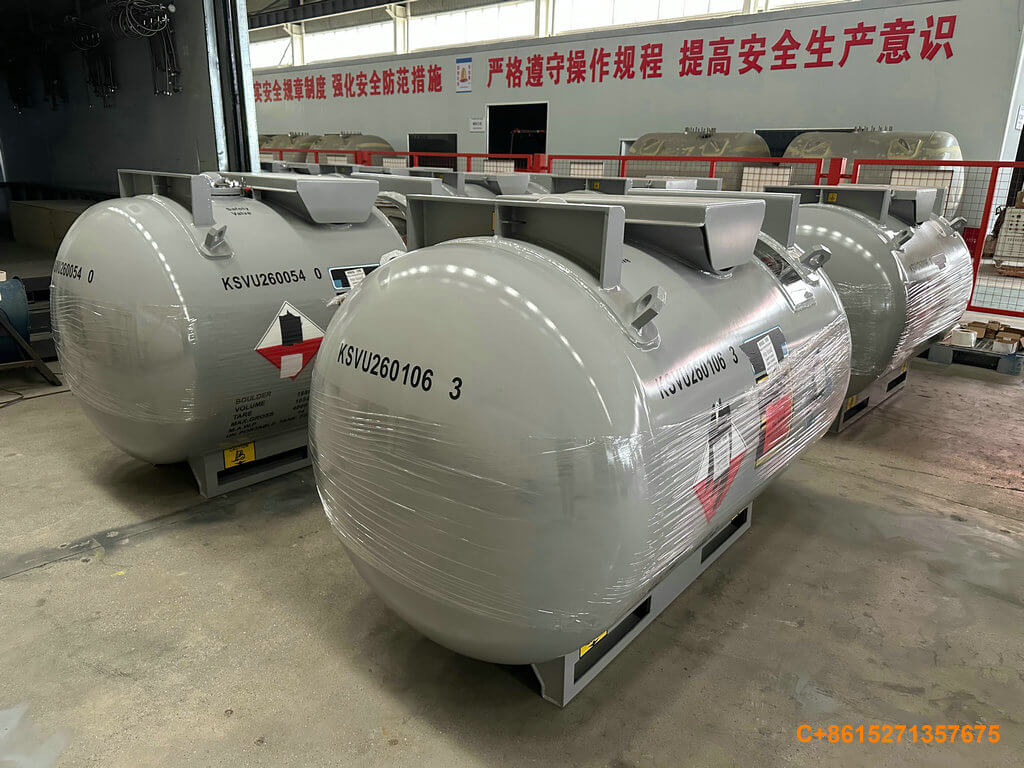

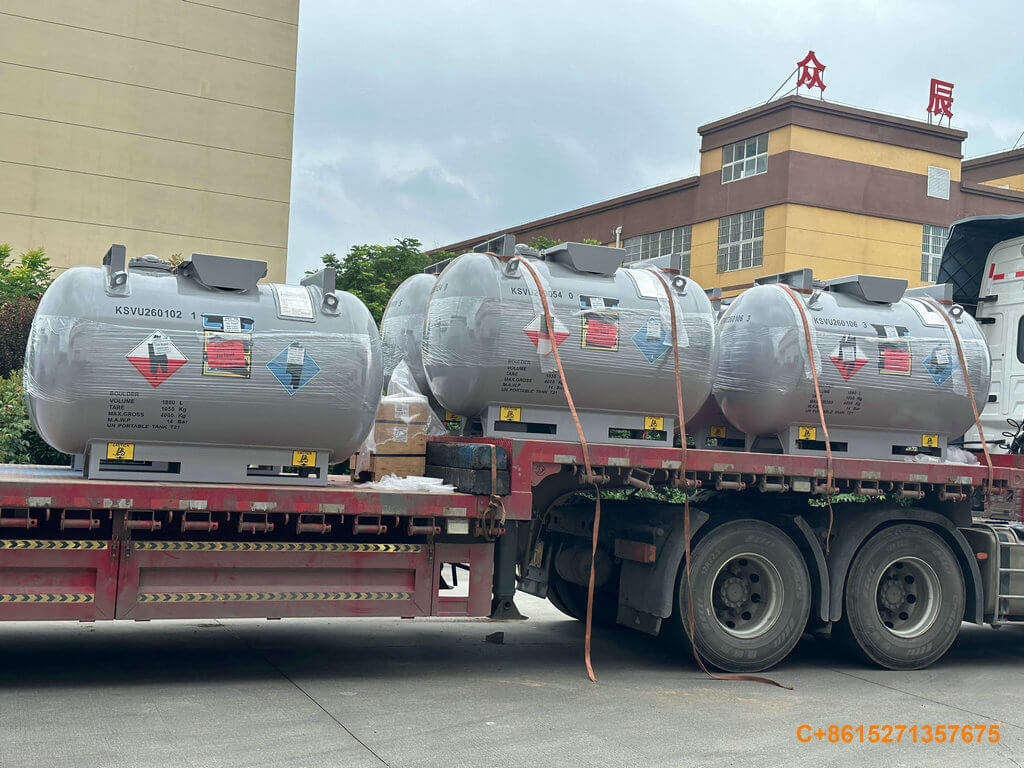

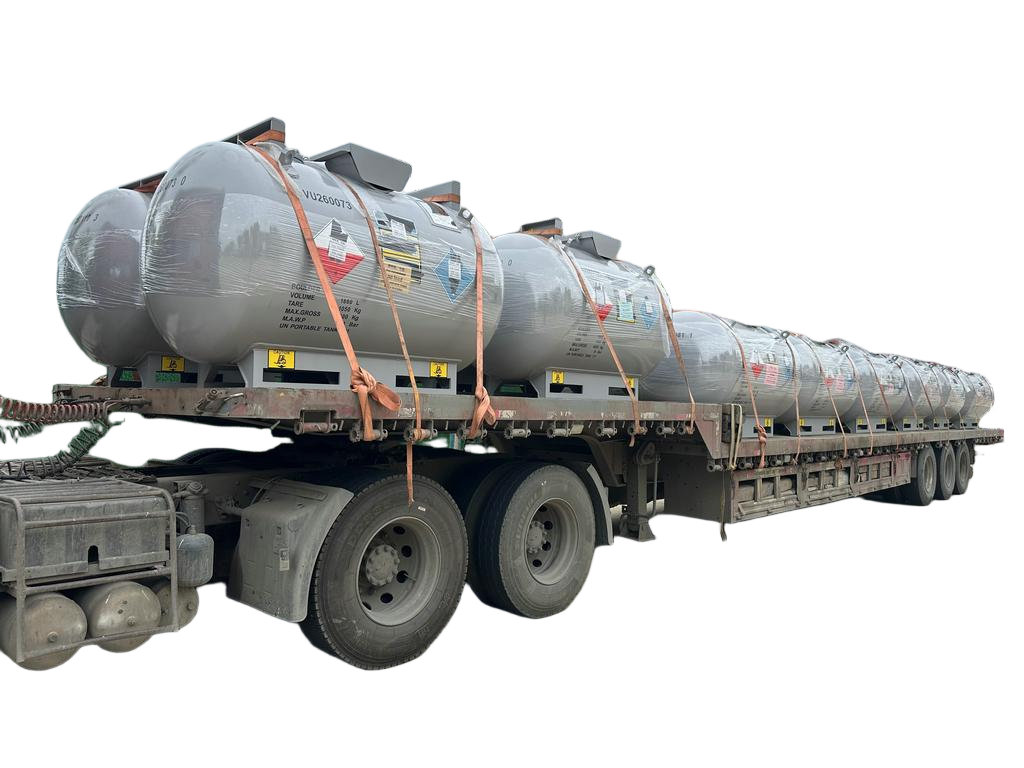

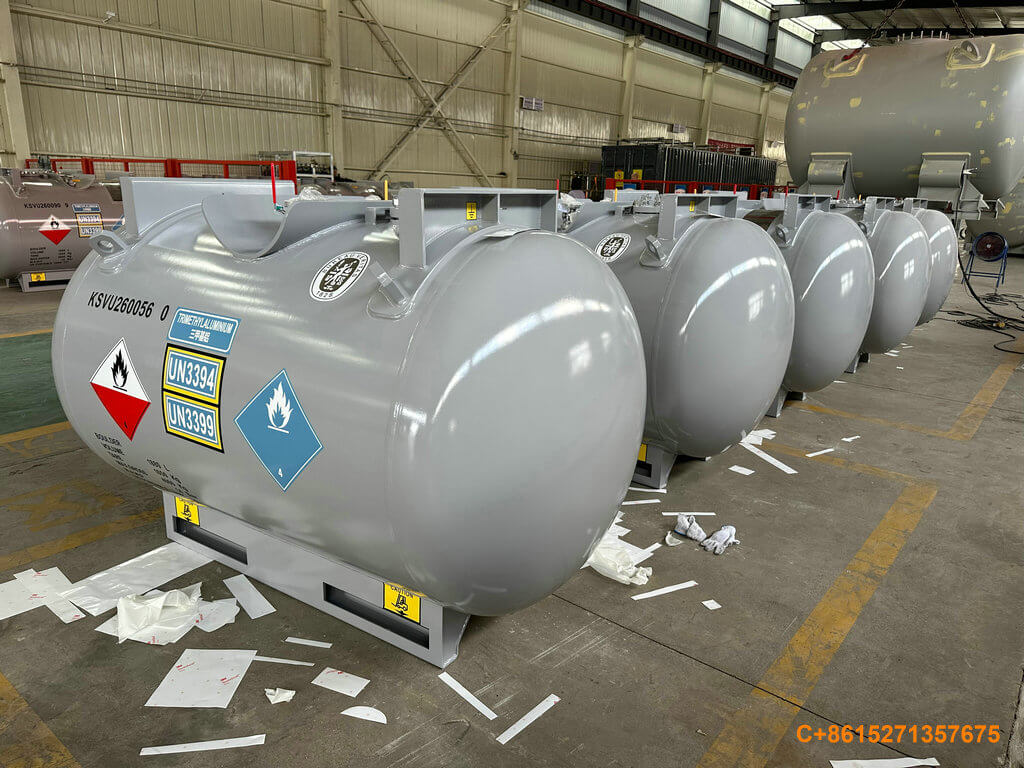

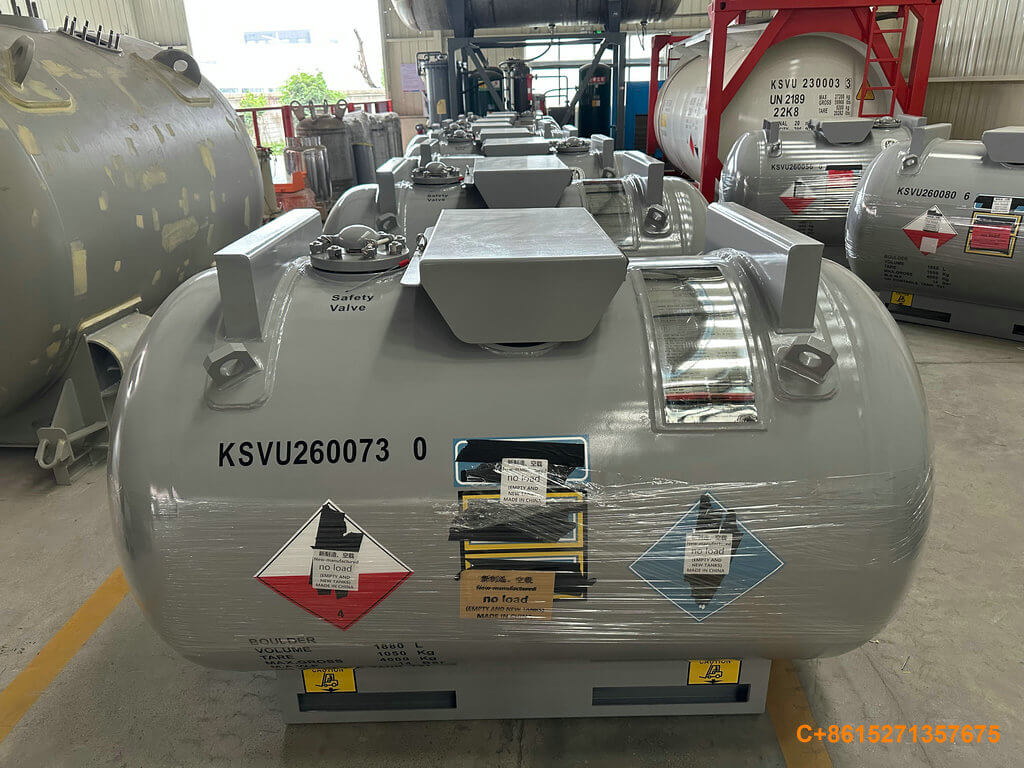

60PCS ASME BV ADR/RID IMDG Type UN3394 3399 Metal Alky Petrochemical PE Catalyst C480 KS1880-T21 UN Portable Tanks To USA
with 60pcs Spare PSV RELIEF VALVES SF/A412F-25P(3B) Manufacturer (SHENYANG XINGUANG VALVE ）
Portable Tank Instruction : T21 | ADR/RID Tank Code : | Special Provisions : TP2 TP7 TP36 TP41 | ||
Model : KS1880-T21 Serial N° : C260053-112 ISO size/Type code : NA Type : UN Portable Tank Prototype Ref : BVCT2370646/S Dimensions : 2128x1148x1388 mm | ||||
SUBSTANCES SUITABLE FOR TRANSPORT : | UN3394 UN3399 | |||
Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Max. allowable working pressure : 14.00 bar Test pressure : 21.00 bar | APPROVALS** IMDG : F/BV/23/194-T21 ADR/RID : F/9151/BV/26 TIR* : GB/C 26839 BV/2023 US-DOT CFR49 : UN Portable Tank | |||
GENERAL DRAWING N° KS1880-00 Rev.1
DESIGN
Design code ASME VIII-1
Design temperature min -40 °C max 65 °C
Design pressure 14.00 bar
External design pressure 1.03 bar
MATERIALS
Frame SA-516M Gr.485
Tank Shell SA-516M Gr.485
Tank Heads SA-516M Gr.485
TANK
External diameter 1148.00 mm
Number of compartments 1
Number of baffles 0
Design thickness
Shell Nominal 12.00 mm Minimum 9.87 mm
Heads Nominal 12.00 mm Minimum 9.87 mm
Equivalent thickness in reference steel
Shell 12.15 mm
Heads 12.15 mm
External tank area 8.60 m²
EQUIPMENT
Heater type None
Heater work pressure N/A
Heater test pressure N/A
Surface area m²
Outlet Top Yes Closures 2
Bottom No Closures
SAFETY DEVICES
Relief valves Nb 1
Relief valve 1 type SF/A412F-25P-(3B) Serial N° 202604074 Setting + 15.40 bar
Country of origin: China 6X 40HQ / 63120KGS //203.66CBM
Marks | Description of goods | Quantity SETS/UNITS | N.W/G.W | DIMENSIONS (LxWxH)(cm) |
N/M | RELIEF VALVES SF/A412F-25P(3B) HS:8481400000 | 60 | 90KGS /120KGS | 1 PACKAGE 720 ×365 ×580MM 0.2CBM |
KSVU 260053 ~KSVU 260112 | PORTABLE TANK (EMPTY AND NEW TANKS) HS:8609009000 | 60 | 63000KGS /63000KGS | 2128 × 1148 × 1388 MM X60 203.46CBM |
INSPECTIONS
These tanks have been manufactured under BUREAU VERITAS survey, in accordance with the following prescriptions :
Rules of BUREAU VERITAS - ETTC GM
Code IMDG ADR/RID
The inspections performed are subject to reports
BVCT2670260/S
INSPECTIONS PERFORMED
Verification of the conformity with the prototype.
Visual internal and external inspection of the tank.
Visual inspection of the frame.
Hydrostatic pressure test of the tank:
- At a pressure of 21.00 bar
- Performed on : 08-06-2026
Leakproofness test of the tank equipment:
- At a pressure of 12.6 bar
- Performed on : 18-06-2026
Satisfactory operation of the service equipment.
Verification of the markings.
Review of radiographic test reports:
- Circumferential and longitudinal shell welds: 100%
- Welds in head section: 100%
REMARKS
- Date of next statutory examination: 12-2028
- Date of next CSC examination: N/A
ASME Certification Mark with the U Designator; Fusible element setting 177°C
* Manufacturers responsibility to obtain the approval
** ADR/RID/IMDG/CSC are covered by the accreditation n°3-1352
Key Technical & Certification Requirements for T21 Tank Containers
1. Design & Manufacturing Standards
Complies with IMDG CODE, ADR/RID, 49CFR, ASME BPVC Section VIII Division 1, and GB150. Third-party certification (CCS/BV/ASME U Stamp) is mandatory, with 100% radiographic inspection of welds (weld efficiency = 1.0) and stress-relief heat treatment required.
2. Safety Accessories & Testing
￮ Safety components: DN50 rupture disk, DN15、DN20、DN25、DN32 liquid ball valve, DN20 gas phase valve, Filling nitrogen.
￮ Testing requirements: Hydrostatic test (21 bar), pneumatic tightness test (14 bar); in-service inspection every 2.5 years (in addition to initial inspection).
￮ Operational protection: Maintain positive nitrogen pressure during transportation; temperature ≤ 30℃; avoid exposure to moisture and oxidizing agents.
Core Transportation & Operation Specifications

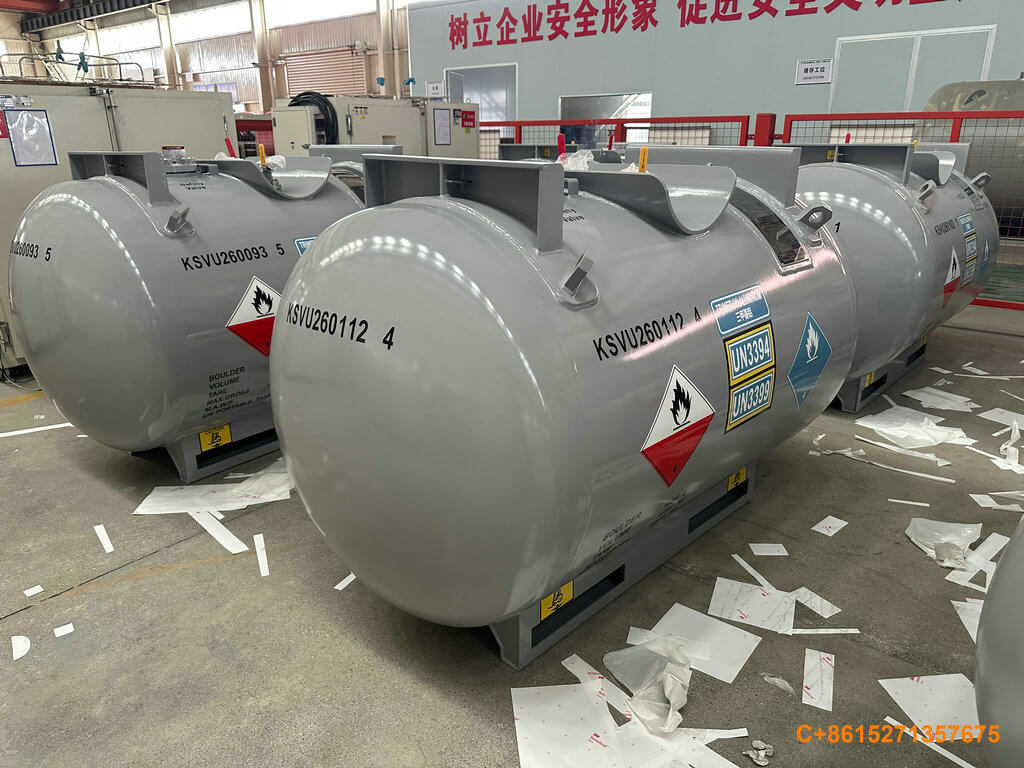

1. Labeling & Marking

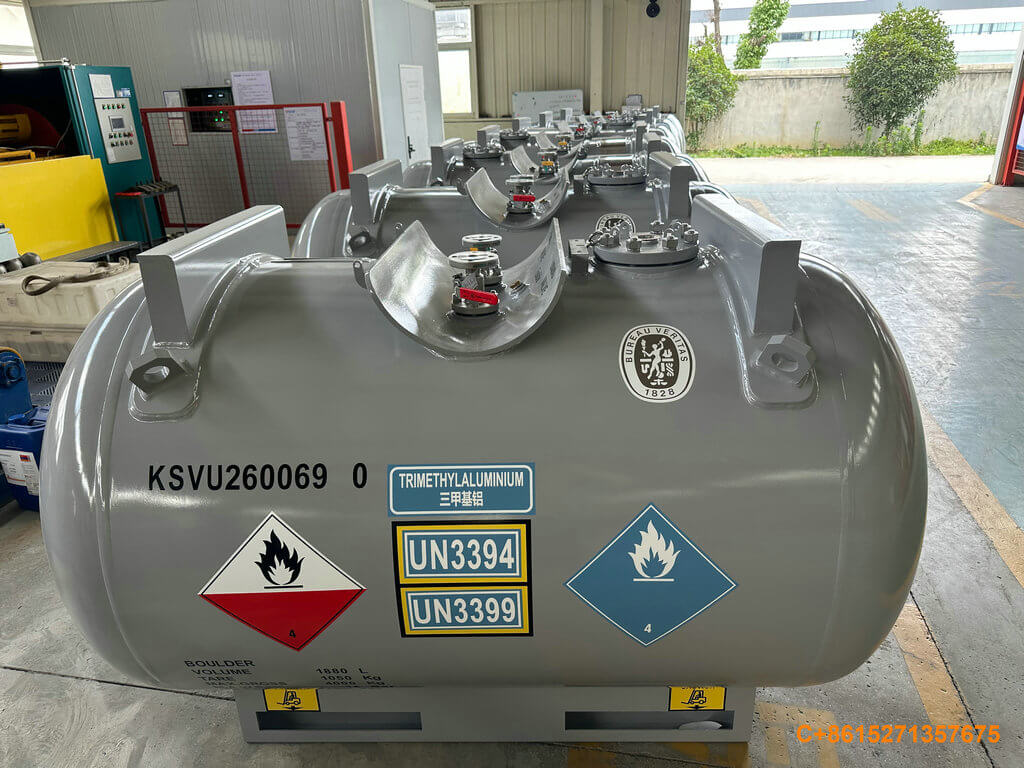

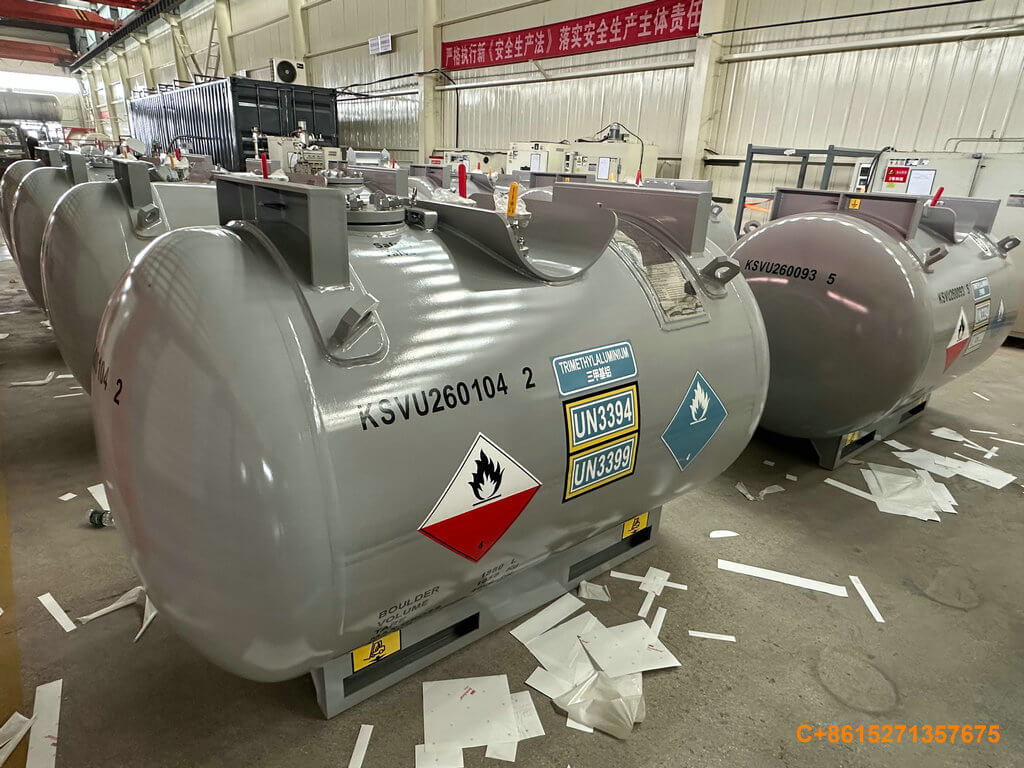

￮ UN 3394: Label with Class 4.2 flammable hazard label + water-reactive subsidiary label; mark "Water prohibited for fire fighting (except as authorized by experts)".
￮ UN 3399: Label with Class 4.3 hazard label; mark water-reactive warning.
￮ Tank marking requirements: Clearly indicate T21 code, UN number, volume, design pressure, and manufacturing date.
2. Loading & Unloading Operations
￮ Conduct the entire process under nitrogen protection to prevent contact with air and water.
￮ Loading/unloading areas must be free of ignition sources; equipped with dry sand, inert powder, emergency eyewash stations, and safety showers.
￮ Leakage response: Cover spills with dry sand immediately; do NOT flush with water.
3. Transport Restrictions
￮ Limited quantity: 0; Exceptional quantity: E0.
￮ Transportation category: V1; dedicated vehicles only; no mixed loading with other dangerous goods.
￮ Packaging specification compliance: Meet Special Provision PP86 and Packaging Instruction P400.
Key Notes & Common Issues
1. UN 3394 vs UN 3399
￮ UN 3394 is pyrophoric (ignites spontaneously on air exposure), while UN 3399 is non-pyrophoric. Both are water-reactive and share T21 tank compatibility, with differences only in labeling and emergency response procedures.
2. Material Selection for Low-Temperature Conditions
Prioritize 09MnNiDR ,16MnDR，SS304 、SS316 for low-temperature applications; use SA-516 for ambient-temperature scenarios to ensure corrosion resistance and low-temperature toughness.
3. Emergency Response Protocols
￮ For leaks: Cover with dry sand or inert powder to prevent spread; do NOT use water for dilution or flushing.
￮ For skin contact: Blot the affected area with dry sand or inert powder first, then wipe with ethanol, rinse thoroughly with water, and seek medical attention immediately.
￮ Personal protective equipment (PPE): Full-body flame-retardant clothing, chemical-resistant gloves, safety goggles, and face shields are mandatory for all operators.
