Views: 2500 Author: Keystone Vessel (Wuhan) Publish Time: 2025-04-03 Origin: Keystone Vessel (Wuhan)
4PCS PE Lined 20FT T14 ISO Tank Container for Hydrofluoric HF Hydrochloric Acid HCL, Potassium Hydroxide KOH Hydrogen Peroxide H2O2 Container Export To India
DTAU2502011 DTAU2502027 DTAU2502032 DTAU2502048
SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM,
FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID
TOP UNLOADING TANKS CAPACITY 21 KL
FOR ROAD INLAND MOVEMENTS TARE WEIGHT 5200KG
FOR UN1814 KOH POTASSIUM HYDROXIDE 45% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS
BOTTOM UNLOADING TARE WEIGHT 5300KG
FOR UN2014 H2O2 HYDROGEN PEROXIDE 31% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS
4 Units T14 ISO Tank Container PE Lined for Hydrofluoric HF Hydrochloric Acid HCL, Ferric Chloride Potassium Hydroxide KOH Tank Container Export To India
Hubei Dong Runze Special Vehicle Equipment subcompany Keystone Vessel (Wuhan) Co.,Ltd
This Forth Time Repurchased order after 19 Sets Hydrofluoric Acid 20Ft Tank Container deliveried to Chennai India since 2022~2024.
Transport：FROM WUHAN PORT,CHINA TO NHAVA SHEVA SEA PORT,INDIA BY SEA Price Term: CIF | |||||
Marks | Description of goods | Quantity | N.W | g.w | MEASUREMENT |
DTAU2502011 | 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, TOP UNLOADING TARE WEIGHT 5200KG | 1UNIT | 5200KGS | 5200KGS | 6.058*2.438*2.591m |
DTAU2502027 | 20FT TANK CONTAINER (EMPTY AND NEW TANKS) FOR UN1814 KOH POTASSIUM HYDROXIDE 45% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG | 1UNIT | 5300KGS | 5300KGS | 6.058*2.438*2.591m |
DTAU2502032 | 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20FT TANK CONTAINER (EMPTY AND NEW TANKS) FOR UN2014 H2O2 HYDROGEN PEROXIDE 31% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG | 1UNIT | 5300KGS | 5300KGS | 6.058*2.438*2.591m |
| DTAU2502048 | 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20FT TANK CONTAINER (EMPTY AND NEW TANKS) FOR UN2014 H2O2 HYDROGEN PEROXIDE 31% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG | 1UNIT | 5300KGS | 5300KGS | 6.058*2.438*2.591m |
| Details | UOM | ISO tank with PE lining |
| Frame Dimension | Feet | 20 X 8 X 8' 6"inch |
| Tank Dimension | m | Not Provided |
| Shell Thickness | mm | Shell 6mm,head 8mm |
| Shell MOC | 16MnDR | |
| Lining Thickness | mm | 16 |
| Lining MOC | PE | |
| Baffle | Nos | Not Provided |
| Capacity | Litres | 21,000 |
| Tare Weight | Kg | 5200 |
| Max Gross Weight | Kg | 36000 |
| Working Pressure | Bar | 4 |
| Test Pressure | Bar | 6 |
| Design Temp | Deg C | Minus 40 to 65 |
| Design Code | GB150.GB18564 T14 | |
| Board Walk | Full walk way | |
| Painting | 120 micron min DFT | |
| Remarks | Domestic purpose without Lloyds / BVQI Register certified |
| Product dimension | 6058mm*2438mm*2591mm | ||||
| Weight | 5200KGS | ||||
| thickness of plastic lining | 16mm | ||||
| Product trype | steel tank lined LLDPE | ||||
| Materials of the lining layer | PE7042 | ||||
| 20ftTank container | |||||
| Ext. Length | 6,058mm | Ext. Width | 2,438mm | ||
| Ext. Height | 2,591mm | M.G.W. | 32000kg | ||
| Tare | 5300Kg | Max. Payload | 26200Kgs | ||
| Cubic Capacity | 19m³ | Tank Design Standard | GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835. | ||
| Max. Design Pressure | 0.27MaP | Calculated Pressure | 0.27MaP | ||
| Testing Pressure | 0.4MaP | Design Operating Temp. | -20ºC~50ºC | ||
| Lining | PE7042 lined 16mm | Material of Tank Body | Q235 | ||
| Manhole Dia. | 500mm | Tank Body Thickness | 6 .0mm | ||
| Facilities Tank Capacity: 17500-19000 Liters FACILITIES TANK CAPACITY: 19000 LITERS STEEL SHEET 6MM, HEAD 6MM LINER THICKNESS: 16 MM PE MATERIALS :CARBON STEEL OUTSIDE PE LINING INSIDE TANK LOADING MEDIUM :UN1814 POTASSIUM HYDROXIDE SOLUTION , UN2014 H2O2 HYDROGEN PEROXIDE 31% , UN1789 HCL ACID, UN1830 DILUTED SULFURIC ACID 94%, CAUSTIC SODA AND OTHER CHEMICALS .TEMPERATURE:NORMAL 20FT TANK CONTAINER (EMPTY AND NEW TANKS) for Potassium Hydroxide 50% solution Dish Head type Tank Capacity: 19000Liters FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 6MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG | |||||
Container Specification Sheet
T14 ISO TANK CONTAINER MAIN TECHNICAL PARAMETERS | ||||||
20FT TANK CONTAINER | Hydrochloric Acid Un1789 33% HCl Hydrofluoric Acid Un1790 48% HF | |||||
OVERALL DIMENSION(MM) | 6058×2438× 2591 | |||||
WORKING TEMPERATURE(ºC) | -20 ℃ ～+65 ℃ | |||||
Insulating performance | Design according to user’s requirement | |||||
Water testing pressure(MPa) | 0.6 | |||||
Insulating materials and thickness（mm） | optional | |||||
Capacity（m3） | 21000L | |||||
Host materials | Middle Steel Q345/16MnDR + LLDPE7042 (PE) | |||||
Thickness of shell materials（mm） | 6 | |||||
Thickness of Seal Head materials（mm） | 8( 6.5-7.3) | |||||
Corner post materials | 16Mn | |||||
Standard fittings Manhole cover, valve | As design | |||||
Capacity | Tare weight | Max gross weight | ||||
21KL | 5150kg | 36000 | ||||
Dimensions | Metric | Imperial |
Length | 6,058mm | 19'10" |
Width | 2,438mm | 8'0" |
Height | 2,591mm | 8'6" |
Pressures | Bar | MPa |
Working pressure | 4.0 | 0.4 |
Test pressure | 6.0 | 0.6 |

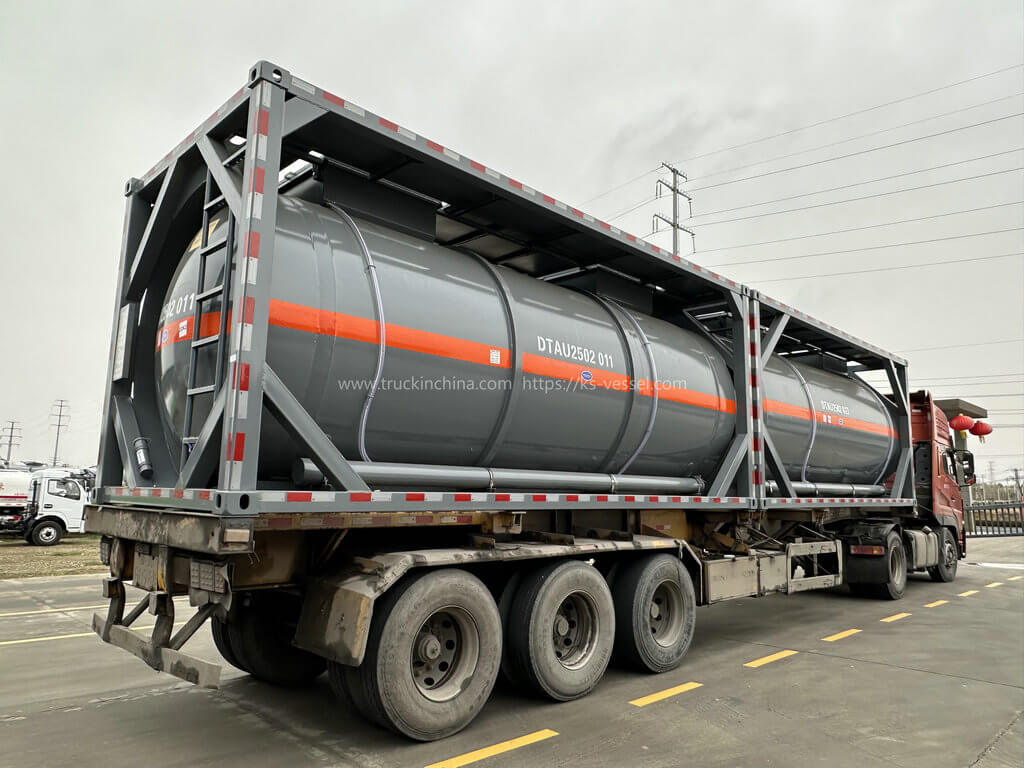

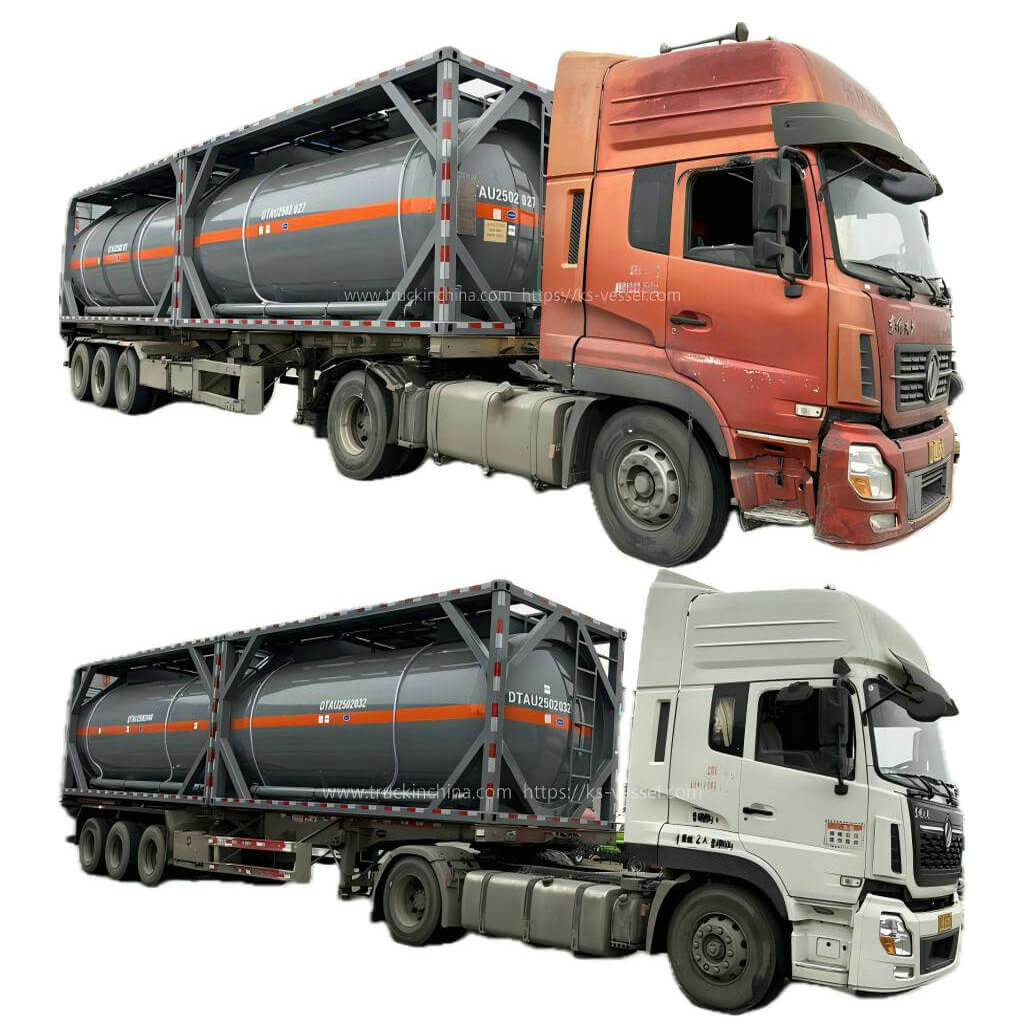

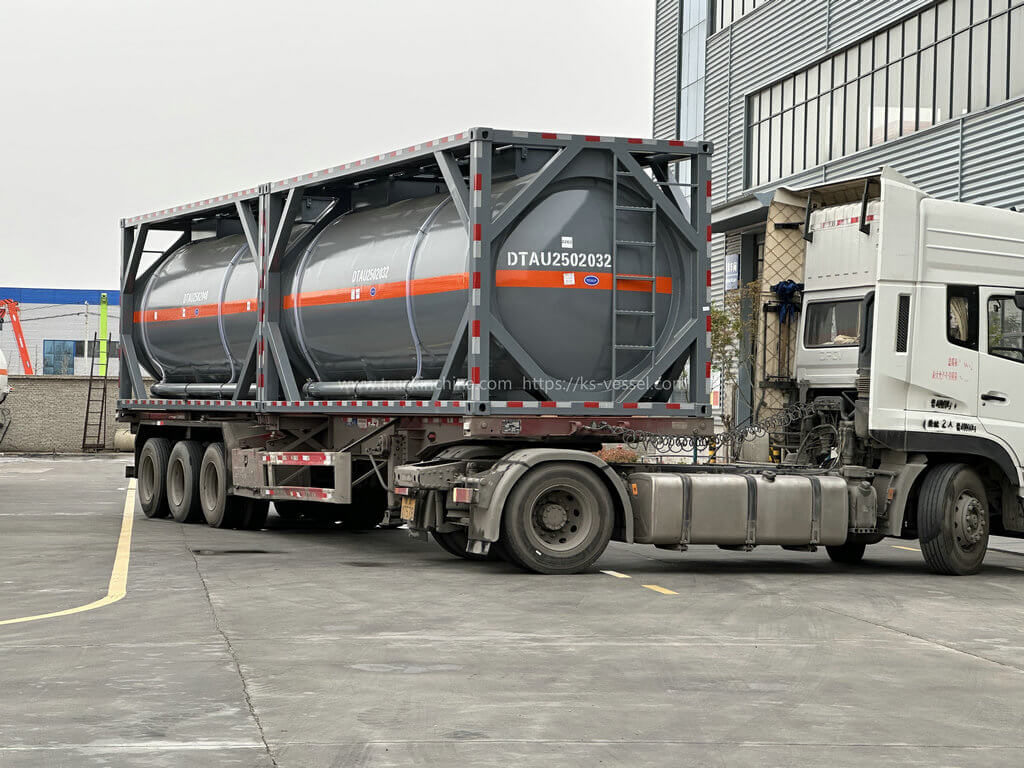

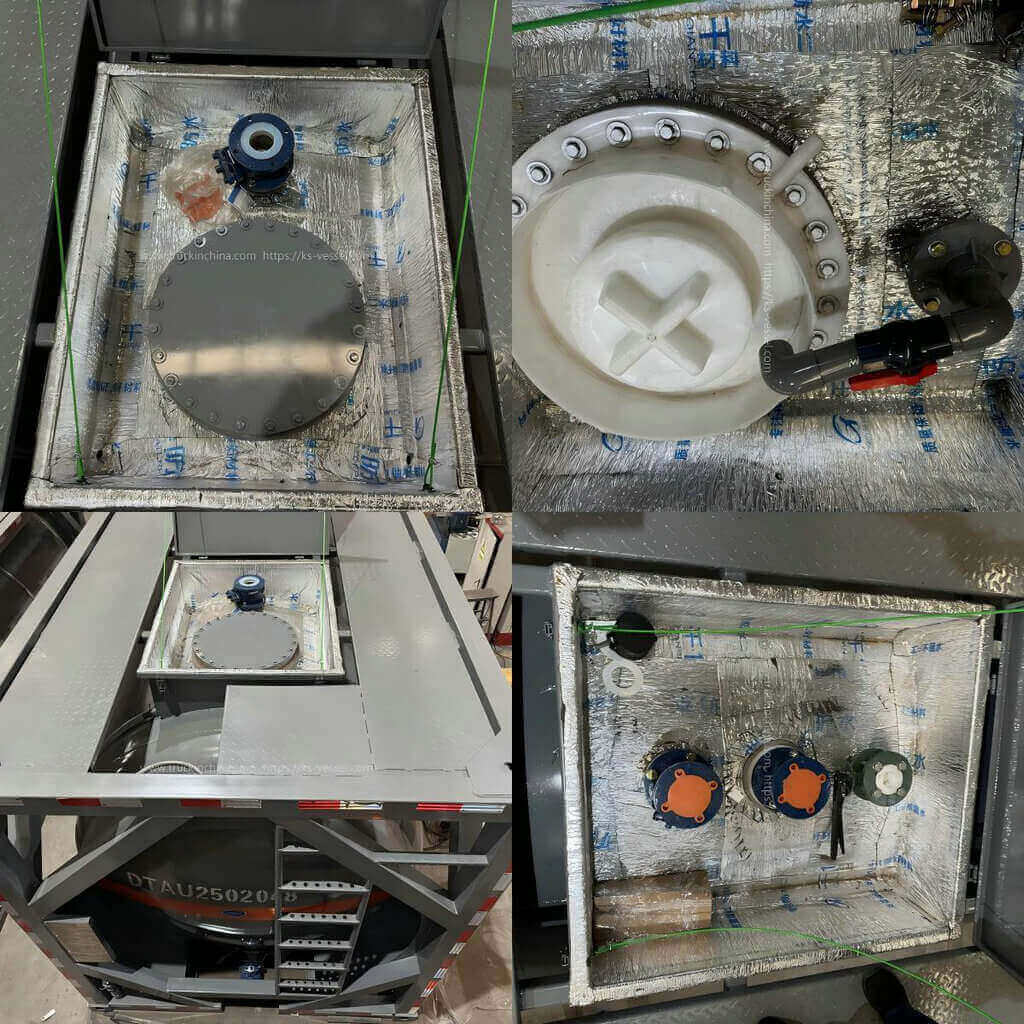

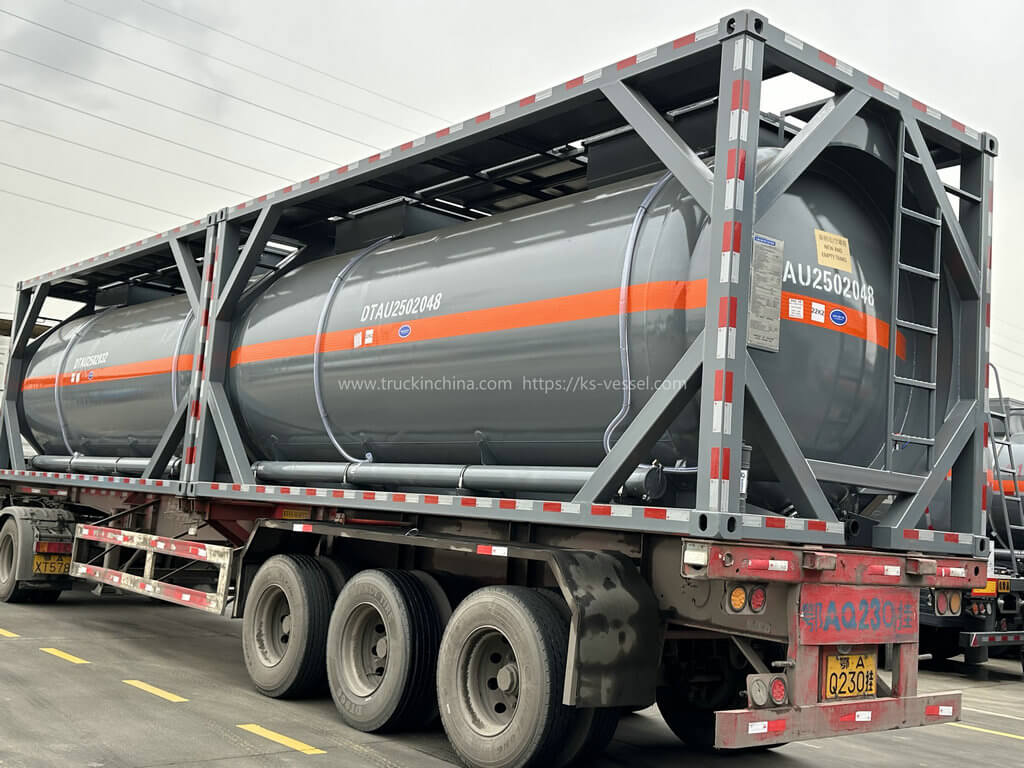

10 Units T14 ISOTank Container For Hydrofluoric Acid Photos
View more at Youtu.be and follow us.
