Views: 2500 Author: Keystone Vessel (Wuhan) Publish Time: 2025-04-08 Origin: Keystone Vessel (Wuhan)
2PCS PTFE Lined 30FT T14 ISO Tank Container for High Pure Hydrofluoric HF Hydrochloric Acid
SHELL THICKNESS SS 5MM ,HEAD 6MM PTFE 3MM,
FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID
TOP UNLOADING TANKS CAPACITY 24KL / 28 KL
Top Loading / Top unloading Discharge valve| Details | UOM | ISO tank with PTFE lining |
| Frame Dimension | Feet | 30 X 8 X 8 inch |
| Tank Dimension | m | Not Provided |
| Shell Thickness | mm | Shell 5mm/6mm,head 6mm / 8mm |
| Shell MOC | 16MnDR | |
| Lining Thickness | mm | 16 |
| Lining MOC | PTFE | |
| Baffle | Nos | Not Provided |
| Capacity | Litres | 24,000L ; 28,000 |
| Tare Weight | Kg | 6800 |
| Max Gross Weight | Kg | 36000 |
| Working Pressure | Bar | 4 |
| Test Pressure | Bar | 6 |
| Design Temp | Deg C | Minus 40 to 65 |
| Design Code | GB150.GB18564 T14 | |
| Board Walk | Full walk way | |
| Painting | 120 micron min DFT | |
| Remarks | Domestic purpose without Lloyds / BVQI Register certified |

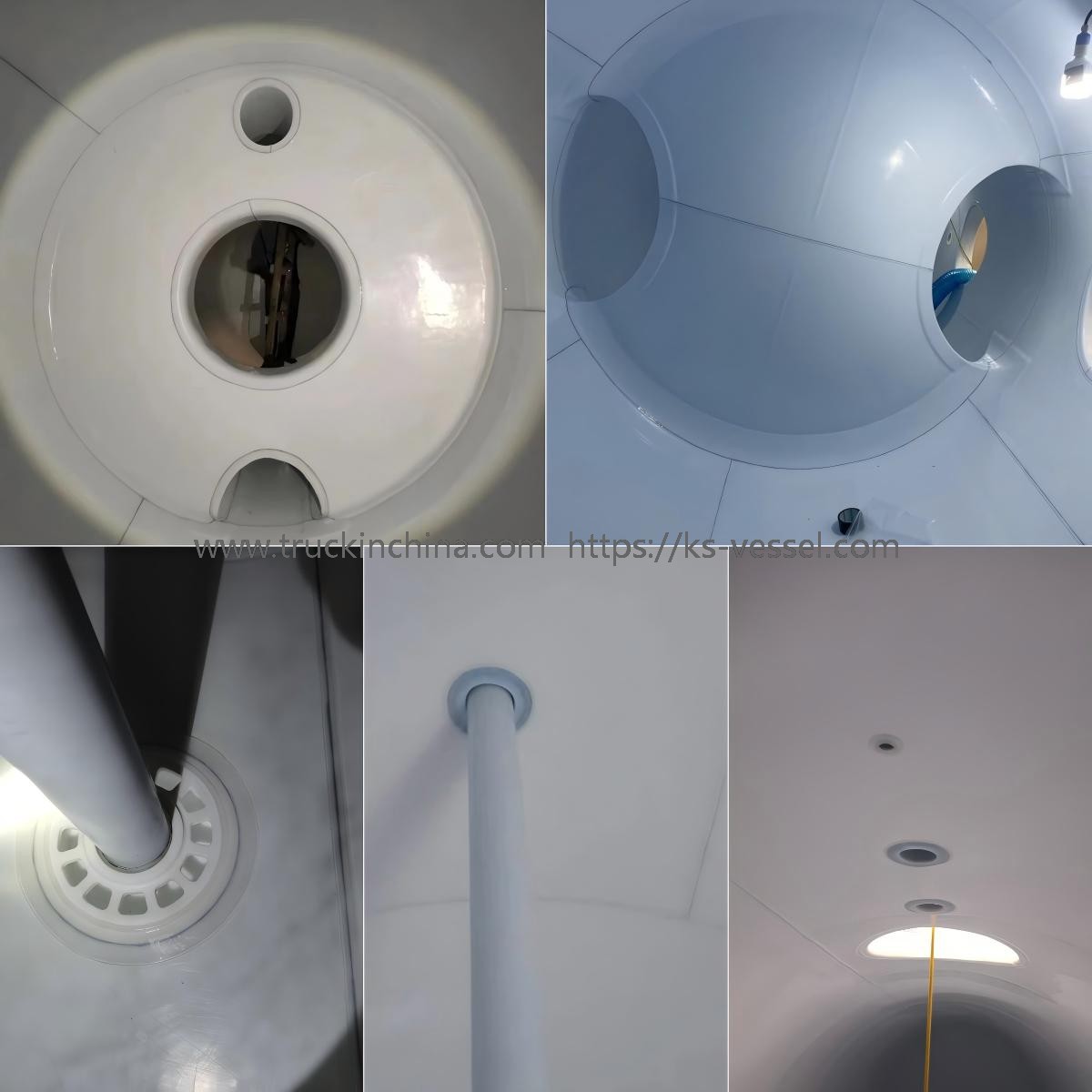

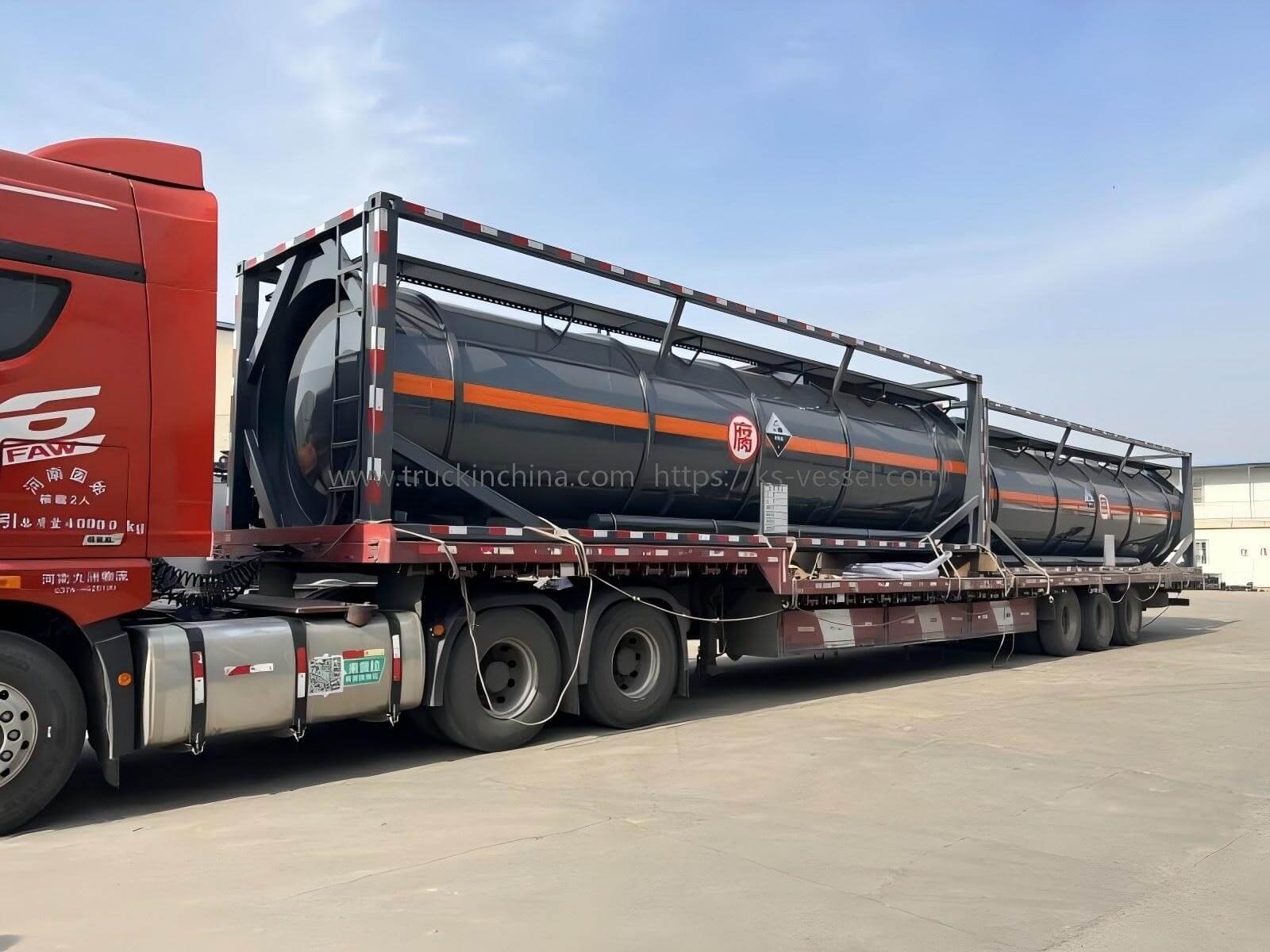

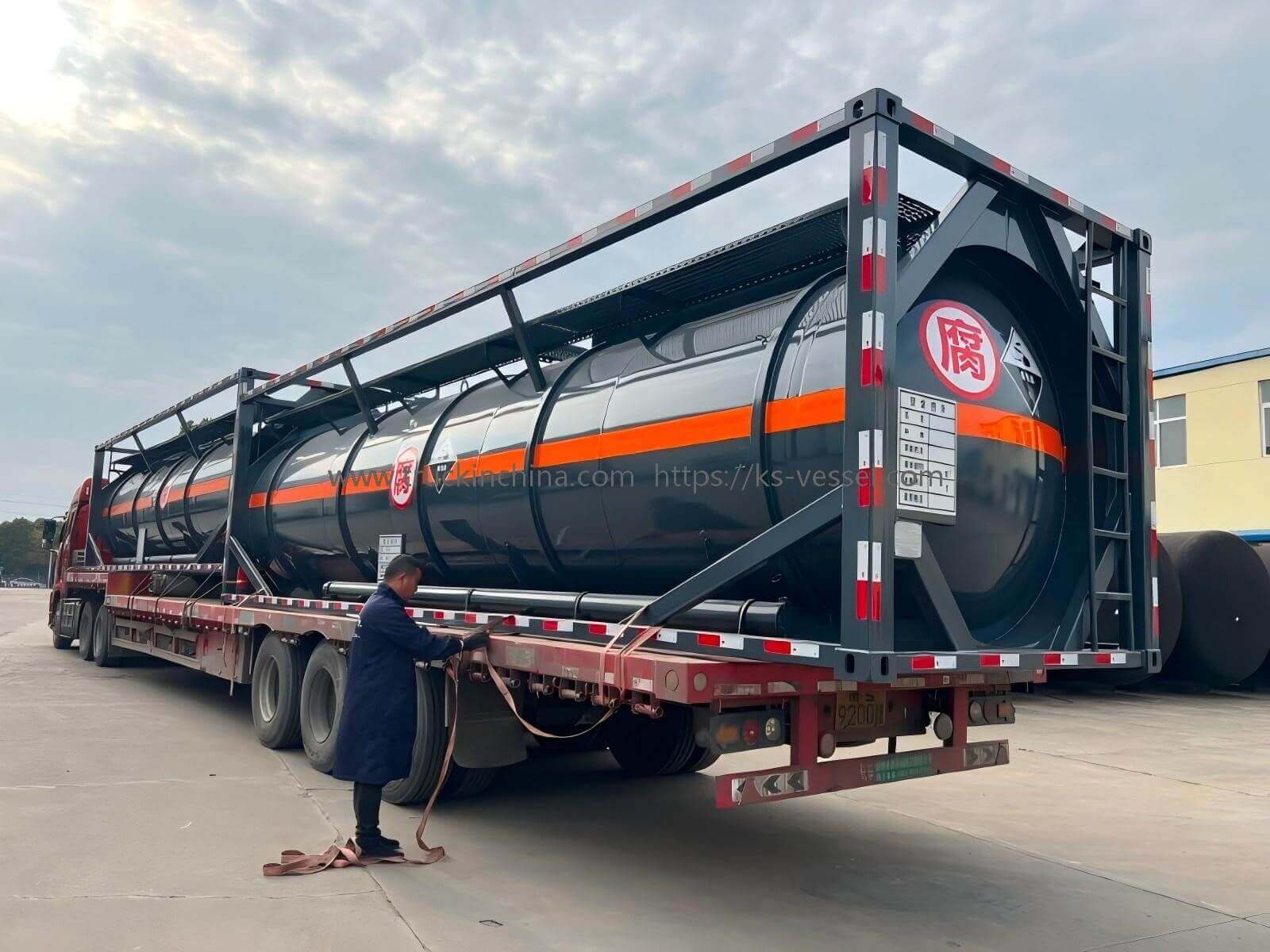

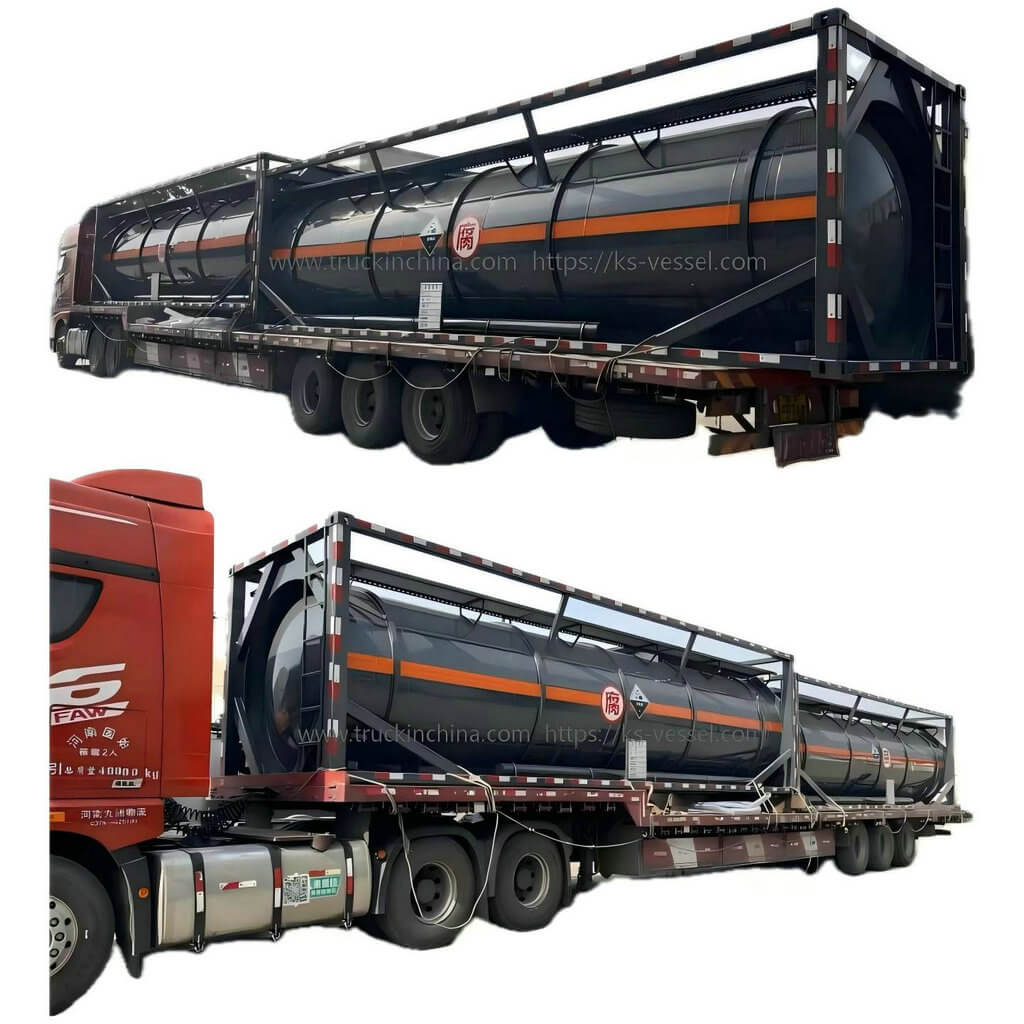

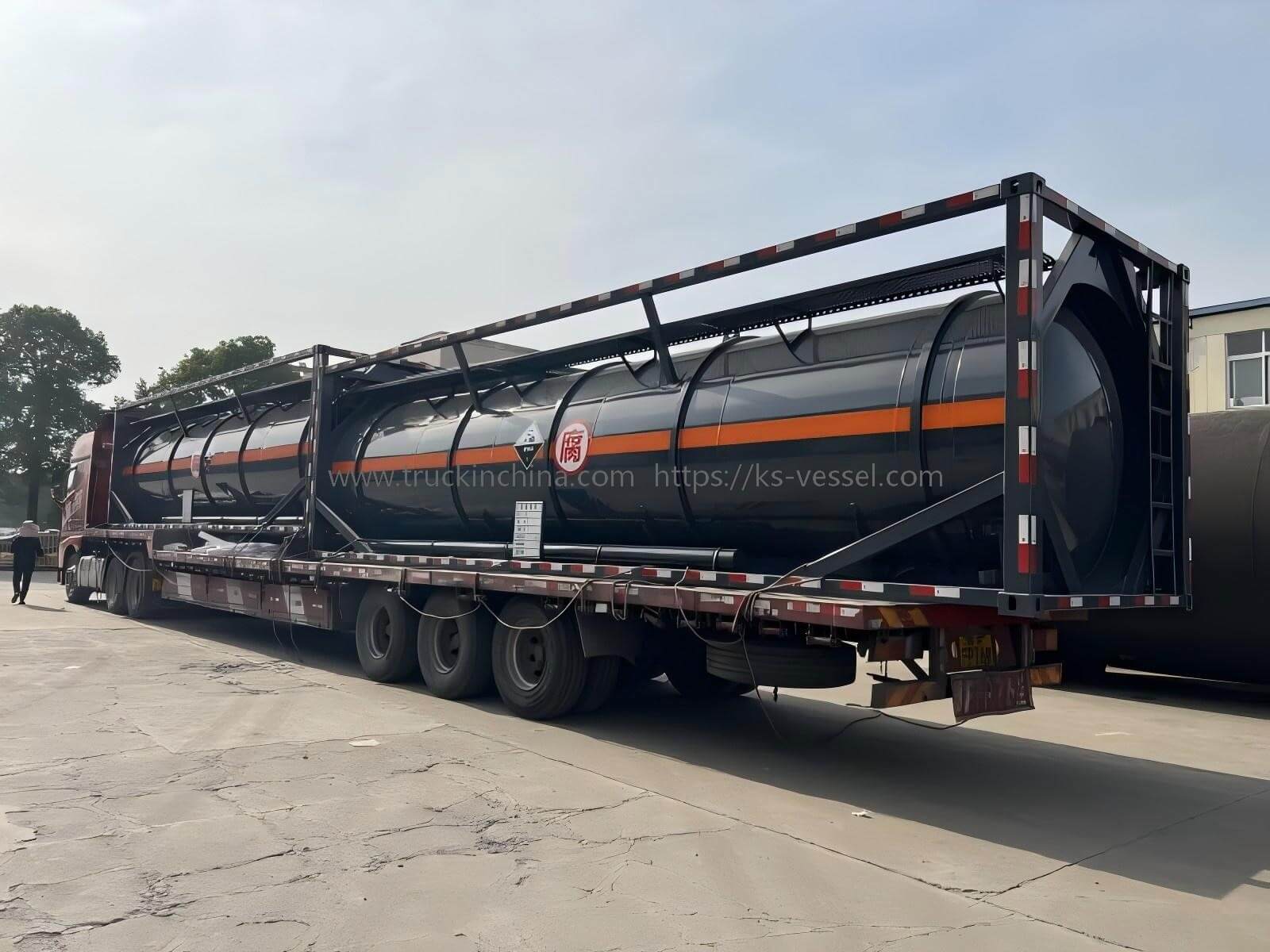

10 Units T14 ISOTank Container For Hydrofluoric Acid Photos
View more at Youtu.be and follow us.
