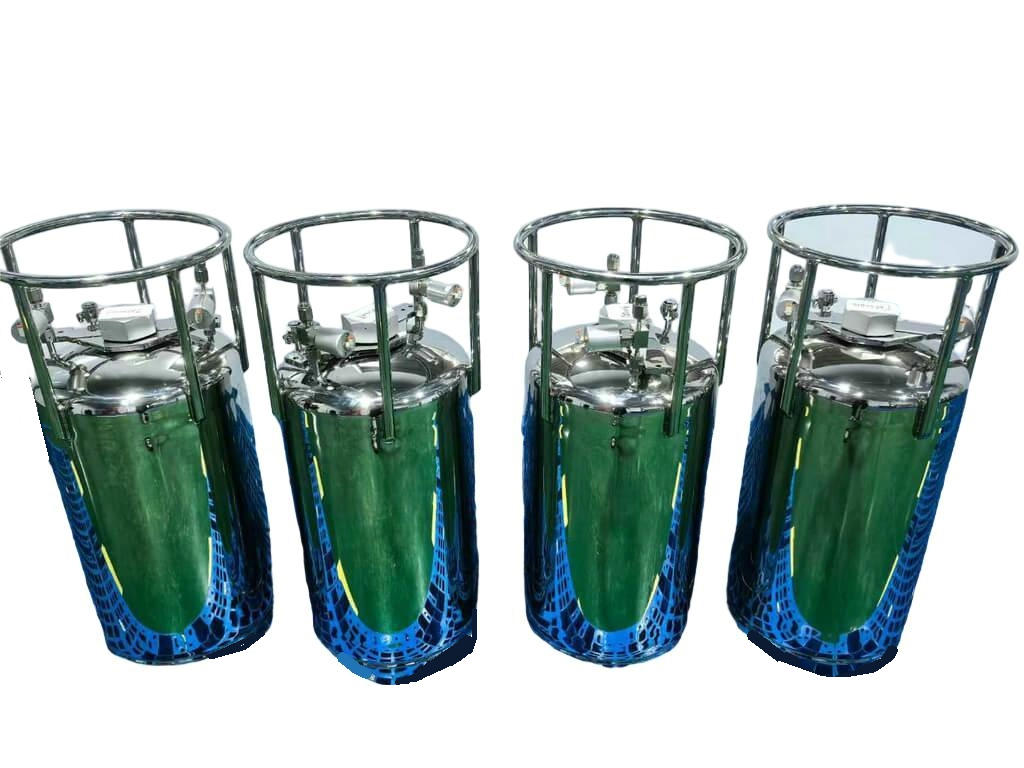

Keystone Vessel KSC10G Cylinder

Product Model ：KSC10G

Operating Temperature：-40~65℃

Certification Medium：TEOS、TEB…MO…

Optional Certificate：UN

Work Pressure：1.2MPa

Product Description：Standard Operating Procedure is ASME Ⅷ Div.1 IMDG CODE ISO 18172-1 GB/T 32566

SS Electronic-grade Specialty Gas Cylinders for TEOS and TEB

This document specifies the technical requirements, core advantages, application specifications and safety precautions of stainless steel (SS) electronic-grade specialty gas cylinders designed for Tetraethyl Orthosilicate (TEOS) and Tetraethyl Borate (TEB). These cylinders are specifically engineered to meet the high-purity and safety demands of electronic-grade specialty gas storage and transportation in semiconductor, photovoltaic and other advanced manufacturing industries.

1. Product Overview

TEOS and TEB are critical precursor materials widely used in thin-film deposition processes such as Chemical Vapor Deposition (CVD) in the electronic manufacturing industry. The SS electronic-grade specialty gas cylinders are dedicated to the storage and transportation of these two high-purity specialty gases. Adopting high-quality stainless steel materials and advanced processing technologies, the cylinders effectively prevent gas contamination and leakage, ensuring the stability of gas properties and the safety of the entire application process.

2. Core Advantages

2.1 Superior Material Compatibility

The Specialty Gas cylinder body is made of high-grade stainless steel (such as SS2380 or 316L), which complies with ASTM A240 and EN10088 standards . This material has excellent corrosion resistance and chemical inertness, which can avoid chemical reactions with TEOS and TEB. The surface of the inner wall is treated with electrolytic polishing and passivation, achieving a surface roughness Ra ≤ 0.1μm , minimizing gas adsorption and residue, and ensuring the high purity of TEOS and TEB (up to electronic grade 5N-6N).

2.2 Excellent Sealing Performance

Equipped with high-precision corrosion-resistant valves and metal wound gaskets, the cylinders adopt a double-sealing structure to prevent gas leakage. The valve material is compatible with TEOS and TEB, and has passed strict leak testing, with a leak rate ≤ 1×10⁻⁹ mbar·L/s . This effectively avoids the risk of gas leakage during storage and transportation, and ensures operational safety.

2.3 Strict Quality Control

The production process of the cylinders strictly follows ISO 9001 quality management system certification , and undergoes rigorous quality inspection items such as wall thickness measurement, material composition analysis, pressure resistance test, airtightness test and fatigue cycle test . Each batch of cylinders is accompanied by a quality inspection certificate to ensure consistent product performance and reliability.

2.4 Compliance with Environmental and Safety Standards

The Specialty Gas cylinders meet the requirements of international environmental and safety regulations such as EU RoHS and REACH . They are free of harmful substances such as lead and mercury, and the materials can be recycled, in line with the concept of green and sustainable development. At the same time, the cylinder design complies with the pressure vessel safety supervision regulations , ensuring the safety of the entire life cycle.

3. Key Technical Parameters

4. Applicable Standards and Certifications

Keystone Vessel SS GAS Cylinder Certificate：TS、UN、TPED/ADR、DOT

• International Standards: ISO 10961:2010 (Gas cylinders - Cylinder bundles - Design, manufacture, testing and inspection), ISO 11114-1:2012 (Gas cylinders - Compatibility of cylinder and valve materials with gas contents)

• Material Standards: ASTM A240 (American Society for Testing and Materials), EN10088 (European Committee for Standardization)

• Safety Standards: TSG R0004-2009 (Technical Supervision Regulations for Stationary Pressure Vessels), GB50646-2020 (Code for Design of Industrial Gas Systems)

• Certifications: ISO 9001 Quality Management System Certification, EU RoHS, REACH Certification

5. Usage and Safety Precautions

5.1 Storage Requirements

The Specialty Gas cylinders should be stored in a dedicated storage area with a temperature of 15-30℃ and relative humidity RH ≤ 60% . They should be fixed with anti-toppling brackets with a bearing capacity not less than twice the weight of the cylinder, and the valve outlet should face away from the operation channel . TEOS and TEB cylinders should be stored separately from incompatible gases (such as strong acids, strong bases) and equipped with independent ventilation systems.

5.2 Transportation Requirements

During transportation, the cylinders should be packaged in wooden boxes or cartons filled with foam or sponge for shock absorption and fixation . They should be protected from impact, extrusion and moisture, and comply with the relevant provisions of the UN Dangerous Goods Transport Regulations (TDG) . The transportation process should be accompanied by complete documents such as quality certificates and safety technical specifications for dangerous goods.

5.3 Operation Precautions

Operators should be professionally trained and familiar with the properties of TEOS and TEB. During use, avoid collision and damage to the cylinder and valve. Before use, check the airtightness of the Gas cylinder and the connecting pipeline. After use, close the valve tightly and perform nitrogen purging if necessary . In case of gas leakage, immediately evacuate the personnel to a safe area, ventilate the site, and take emergency disposal measures according to the emergency plan.

5.4 Regular Inspection

The Specialty Gas cylinders should be regularly inspected in accordance with the requirements of pressure vessel regulations, including periodic pressure test, airtightness test and material corrosion inspection . Gas Cylinders that fail the inspection should be discontinued and replaced in a timely manner to ensure safe use.

6. Customization Services

We provide customized services for SS electronic-grade specialty gas cylinders according to the specific needs of customers, including customization of Gas cylinder volume, working pressure, inner wall treatment process and valve type. All customized products will strictly follow the relevant standards and conduct full performance testing to ensure that they meet the requirements of TEOS and TEB storage and transportation.
